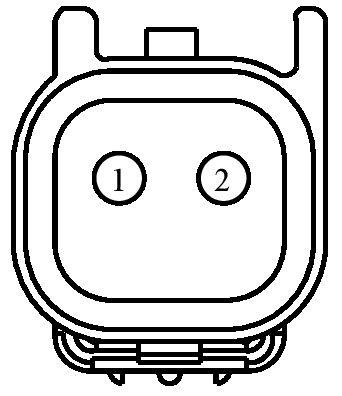

Connector End View (C3557) - SECOND ROW SAFETY BELT BUCKLE LH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3557 | SECOND ROW SAFETY BELT BUCKLE LH | BK | 14A699 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ADA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR204 (VT) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE | 97BG-14421-ADA | ||||
| 2 | GD382 (BK-GY) | 20 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | 97BG-14421-ADA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1186
Service Part Number:
BU2Z-14S411-AKA
Gauge:
16
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Speaker - Tweeter - LH - Front
- Speaker - Tweeter - LH - Rear
- Speaker - Tweeter - RH - Front
- Speaker - Tweeter - RH - Rear
- Switch - Seatbelt
