Connector End View (C3512A) - USB HUB

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3512A	USB HUB	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-SAA	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LME89 (YE-BU)	26	CTRL MOD. - MEDIA CONNECTIVITY POWER	DU5T-14474-SAA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	RME89 (WH-BU)	26	CTRL MOD. - MEDIA CONNECTIVITY GROUND	DU5T-14474-SAA

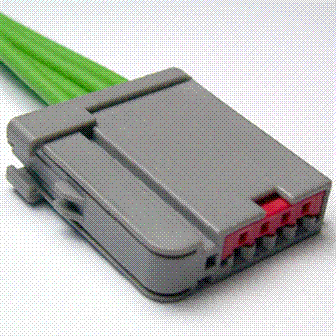

Available Pigtail Kits

Pigtail Kit Part Number WPT-1239

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Compass
