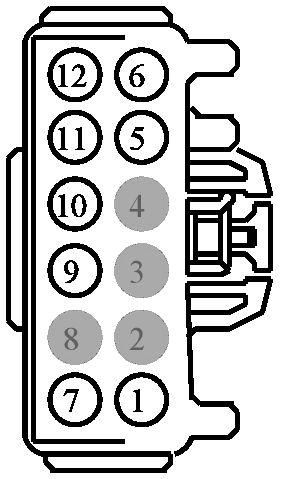

Connector End View (C3501) - DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3501	DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER	LT GY	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BAA	DU2Z-14474-EA	2.8
97BG-14474-BCA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA01 (OG-GN)	20	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	97BG-14474-BAA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CBP23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER	97BG-14474-BAA
6	SBB81 (RD)	12	FUSE - 81 OR CIRCUIT BREAKER	97BG-14474-BCA
7	HYA02 (OG-WH)	20	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	97BG-14474-BAA
8	*	*	Not Used	N/A
9	VDN04 (VT-WH)	22	CTRL MOD. - LIN BUS # BCM 4	97BG-14474-BAA
10	LYA03 (YE-VT)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +	97BG-14474-BAA
11	RYA03 (BU-BN)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -	97BG-14474-BAA
12	GD383 (BK-WH)	12	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT	97BG-14474-BCA

Available Pigtail Kits

Pigtail Kit Part Number WPT-396

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BKA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Liftgate
Switch - Headlamp
Switch - Seat (driver)
Switch - Seat (passenger)
