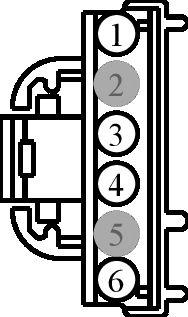

Connector End View (C3429) - ALTERNATING CURRENT (AC) POWER OUTLET SOCKET

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3429	ALTERNATING CURRENT (AC) POWER OUTLET SOCKET	BK	14B079	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-NA	DU2Z-14474-BA	0.64
9U5T-14474-MA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA01 (OG-GN)	20	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	9U5T-14474-MA
2	*	*	Not Used	N/A
3	RYA03 (BU-BN)	26	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -	9U5T-14474-NA
4	LYA03 (YE-VT)	26	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +	9U5T-14474-NA
5	*	*	Not Used	N/A
6	HYA02 (OG-WH)	20	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	9U5T-14474-MA

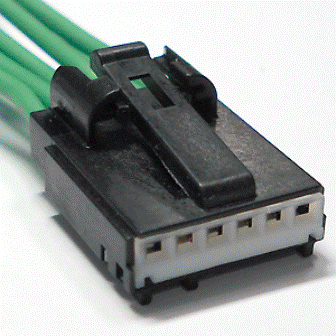

Available Pigtail Kits

Pigtail Kit Part Number WPT-1006

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-NB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Dimmer Switch
Module - Front Interface
Switch - Adjustable Pedal
Switch - Dimmer
Switch - Dimmer (Instrument Panel)
Switch - Message Center
Switch - Power Window - Passenger (Front)
