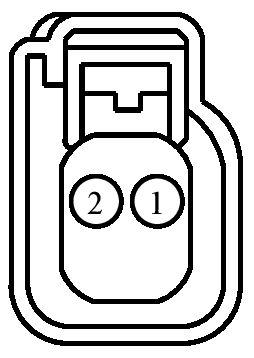

Connector End View (C3346) - SECOND ROW SEAT MOTOR RH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3346 | SECOND ROW SEAT MOTOR RH | BK | 14D724 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AEA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPSD6 (VT-GY) | 18 | RELAY - 2ND ROW SEAT FOLD RIGHT | 97BG-14474-AEA | ||||
| 2 | GD383 (BK-WH) | 18 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | 97BG-14474-AEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1052
Service Part Number:
3U2Z-14S411-JLB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
2
