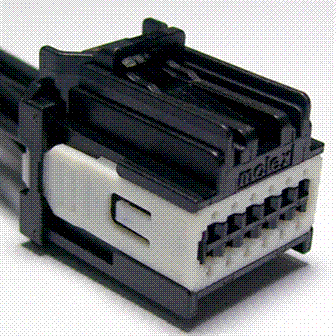

Connector End View (C3304A) - HEATED REAR SEAT MODULE LH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3304A	HEATED REAR SEAT MODULE LH	BK	14A699	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DA	DU2Z-14474-AA	0.64
9U5T-14474-YA	DU2Z-14474-AA	0.64

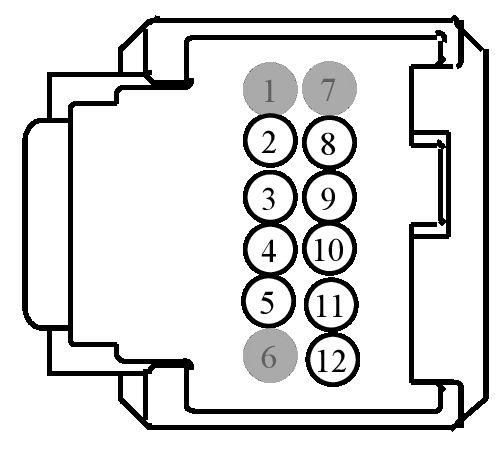

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	CHS31 (YE)	26	SWITCH - SEAT HEATER REAR COMMON OR LEFT	9U5T-14474-YA
3	VHS42 (GN)	22	SENSOR - CUSHION TEMP REAR LEFT	9U5T-14474-DA
4	CHS49 (VT)	26	CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR LOW	9U5T-14474-YA
5	CHS48 (YE)	26	CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR HIGH	9U5T-14474-YA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	CHS80 (BU-OG)	26	SWITCH - SEAT HEATER REAR RIGHT	9U5T-14474-YA
9	VHS45 (GY-BN)	22	SENSOR - CUSHION TEMP REAR RIGHT	9U5T-14474-DA
10	CHS53 (WH)	26	CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR LOW	9U5T-14474-YA
11	CHS52 (BU)	26	CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR HIGH	9U5T-14474-YA
12	RHS41 (GN-BN)	22	CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP	9U5T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1401

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-SA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Climate Control Seat
Module - Heated Seat (Rear)
Module - Image Processing
Module - Media Gateway
Module - Power Steering
Monitor - Video/DVD
