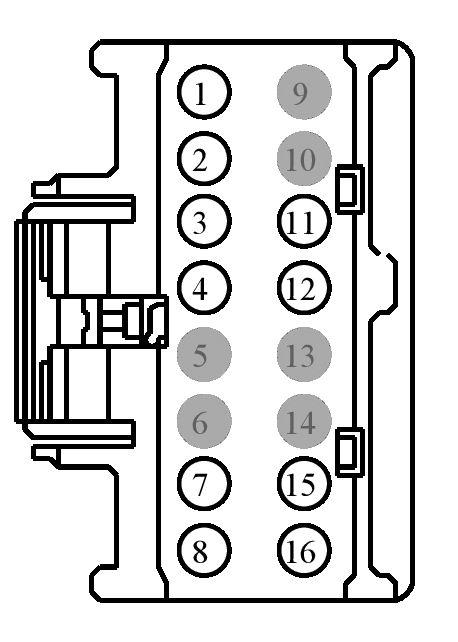

Connector End View (C3265C) - FRONT SEAT CLIMATE CONTROL MODULE [SCME]

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3265C	FRONT SEAT CLIMATE CONTROL MODULE [SCME]	BK	14D230	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	NA
2	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	NA
3	VHS23 (BN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL	NA
4	VHS21 (BU-WH)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL	NA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	RHS08 (VT-WH)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -	NA
8	CHS08 (BN-YE)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +	NA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VHS18 (BN-GN)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL	NA
12	CHS09 (GY)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW	NA
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	RHS03 (GY-OG)	18	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN -	NA
16	CHS03 (GN-BN)	18	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN +	NA

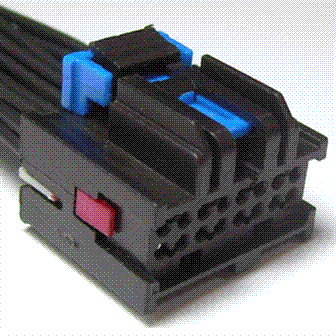

Available Pigtail Kits

Pigtail Kit Part Number WPT-1165

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BGA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Climate Control Seat
