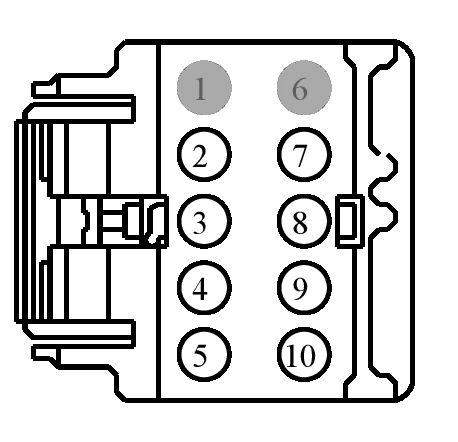

Connector End View (C3265B) - FRONT SEAT CLIMATE CONTROL MODULE [SCME]
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3265B | FRONT SEAT CLIMATE CONTROL MODULE [SCME] | BK | 14D230 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | VHS27 (WH-OG) | 20 | SENSOR - CUSHION TEMP. PASSENGER OR RIGHT | NA | ||||
| 3 | RHS10 (BU-OG) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. | NA | ||||
| 4 | VHS36 (YE-BU) | 20 | SENSOR - BACK TEMP. PASSENGER | NA | ||||
| 5 | RHS20 (GN-BU) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP. | NA | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | VHS26 (VT) | 20 | SENSOR - CUSHION TEMP. DRIVER OR LEFT | NA | ||||
| 8 | RHS05 (YE-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. | NA | ||||
| 9 | CHS14 (GN) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR HIGH | NA | ||||
| 10 | CHS29 (WH-BU) | 20 | SWITCH - SEAT HEATER FRONT DRIVER OR LEFT SIDE | NA | ||||

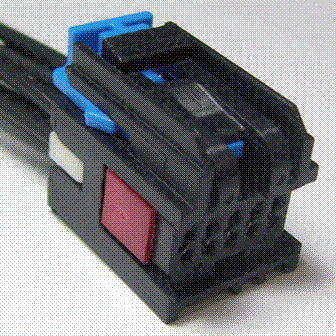

Available Pigtail Kits
Pigtail Kit Part Number WPT-1174
Service Part Number:
AU2Z-14S411-BLA
Gauge:
20
Pin material:
Tin
Cavities:
10
Vehicle Uses:
- Module - Climate Control Seat
