Connector End View (C3250) - SCUFF PLATE LAMP RH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3250 | SCUFF PLATE LAMP RH | BK | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLN25 (VT) | 22 | RELAY - PUDDLE LAMPS (KERB ILLUM.) | 9U5T-14474-LA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | GD383 (BK-WH) | 22 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | 9U5T-14474-LA | ||||
| 4 | * | * | Not Used | N/A | ||||

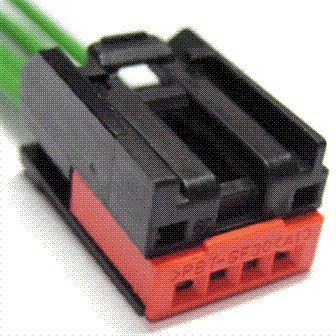

Available Pigtail Kits
Pigtail Kit Part Number WPT-1139
Service Part Number:
3U2Z-14S411-PRC
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Connector - Audio Input
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Module - Anti-theft
- Module - Power Moonroof
- Sensor - Steering Wheel Position
- Switch - 4x4 Control
- Switch - Clutch Pedal Position
- Switch - Deck Lid / Lift Gate Ajar
- Switch - Door Lock (LH)
- Switch - Door Lock (RH)
- Switch - Lift Gate Glass Ajar
- Switch - Message Center
- Switch - Moon Roof/Sun Roof
- Transceiver - Passive Anti-Theft (PATS)
