Connector End View (C3215) - FRONT SEAT POWER LUMBAR ASSEMBLY LH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3215	FRONT SEAT POWER LUMBAR ASSEMBLY LH	14D232			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
F0LB-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
A	CPS19 (GY-VT)	18	SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE	F0LB-14474-AA
B	CPS18 (BN-GN)	18	SWITCH - DRIVER LUMBAR PUMP	F0LB-14474-AA

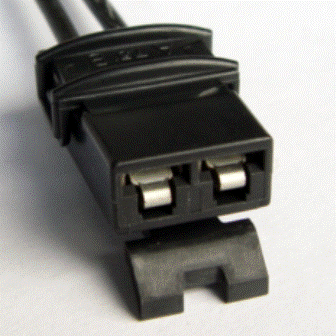

Available Pigtail Kits

Pigtail Kit Part Number WPT-687

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-ZAA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Motor - Air Suspension Compressor
Switch - Dimmer (Instrument Panel)
