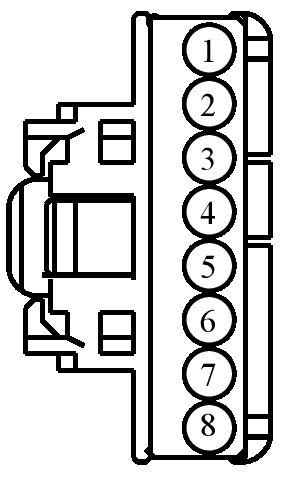

Connector End View (C3182) - HEATED REAR SEAT SWITCH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3182 | HEATED REAR SEAT SWITCH | BK | 14B079 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-NA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 9U5T-14474-LA | ||||
| 2 | CHS31 (YE-OG) | 26 | SWITCH - SEAT HEATER REAR COMMON OR LEFT | 9U5T-14474-NA | ||||
| 3 | CHS80 (BU-OG) | 26 | SWITCH - SEAT HEATER REAR RIGHT | 9U5T-14474-NA | ||||
| 4 | CHS53 (WH-BN) | 26 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR LOW | 9U5T-14474-NA | ||||
| 5 | CHS52 (BU) | 26 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR HIGH | 9U5T-14474-NA | ||||
| 6 | CHS49 (VT) | 26 | CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR LOW | 9U5T-14474-NA | ||||
| 7 | CHS48 (YE) | 26 | CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR HIGH | 9U5T-14474-NA | ||||
| 8 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | 9U5T-14474-LA | ||||

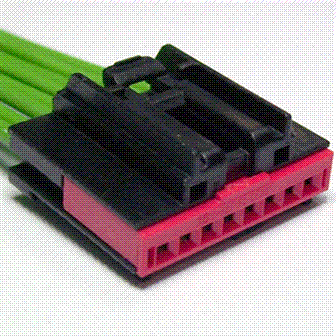

Available Pigtail Kits
Pigtail Kit Part Number WPT-1219
Service Part Number:
3U2Z-14S411-DAAC
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Switch - Ambient Lighting Dimmer
- Switch - Door Lock (LH)
- Switch - Message Center
- Switch - Moon Roof/Sun Roof
- Switch - Seat Memory
