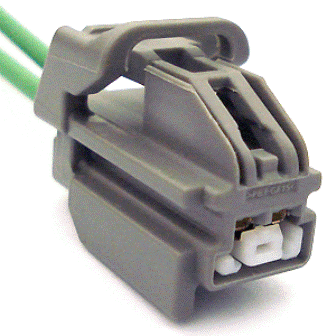

Connector End View (C3168) - REAR SEAT BACKREST HEATER MAT LH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3168 | REAR SEAT BACKREST HEATER MAT LH | LT GY | 14A699 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-DA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CHS74 (WH-OG) | 22 | HEATER - SEAT REAR LEFT CUSHION/BACK | AU5T-14474-DA | ||||
| 2 | GD382 (BK-GY) | 20 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | AU5T-14474-DA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-965
Service Part Number:
3U2Z-14S411-AEB
Gauge:
14
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Actuator - Door Lock - Decklid/Liftgate
- Element - Heated Seat
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Module - Heated Seat
- Motor - Adjustable Pedal
- Motor - Decklid / Liftgate
- Sensor - Air Charge Temperature
- Sensor - EATC In Car Temperature
- Speaker - Subwoofer
- Switch - Adjustable Pedal
- Switch - Brake Deactivation
- Switch - Brake Pressure
- Switch - Clutch Pedal Position
- Switch - Stop Lamp
- Switch - Third Row Power Folding Seat
