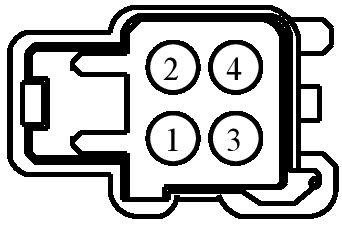

Connector End View (C3167) - REAR SEAT CUSHION HEATER MAT LH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3167 | REAR SEAT CUSHION HEATER MAT LH | LT GY | 14A699 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14421-DA | EU2Z-14421-CA | 1.5 |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CHS58 (WH) | 20 | CTRL MOD. - REAR HEATED SEAT LEFT # CUSHION HEATER + | AU5T-14421-DA | ||||
| 2 | VHS42 (GN) | 22 | SENSOR - CUSHION TEMP REAR LEFT | AU5T-14421-DA | ||||
| 3 | RHS41 (GN-BN) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP | 2L1T-14421-CA | ||||
| 4 | CHS74 (WH-OG) | 22 | HEATER - SEAT REAR LEFT CUSHION/BACK | AU5T-14421-DA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1076
Service Part Number:
3U2Z-14S411-BUB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Element - Heated Seat
- Lamp - Ash Tray
- Lamp - Courtesy - Footwell
- Module - Remote Keyless Entry
- Motor - Heater/AC Blower (Auxiliary)
- Radio - Amplifier
- Switch - Convertable Top
