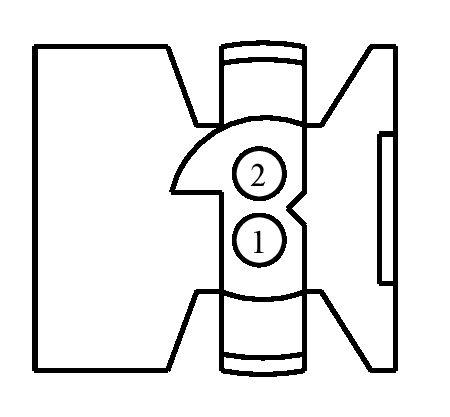

Connector End View (C3066) - FRONT SAFETY BELT ANCHOR PRETENSIONER RH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3066 | FRONT SAFETY BELT ANCHOR PRETENSIONER RH | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| NULL | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR122 (WH-OG) | 22 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + | NULL | ||||
| 2 | RR122 (BN) | 22 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - | NULL | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1222
Service Part Number:
BU2Z-14S411-BEA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Driver)
- Squib - Airbag (Passenger)
