Connector End View (C3052) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C3052 | INLINE | 14D72414A005 | See Below | |||||

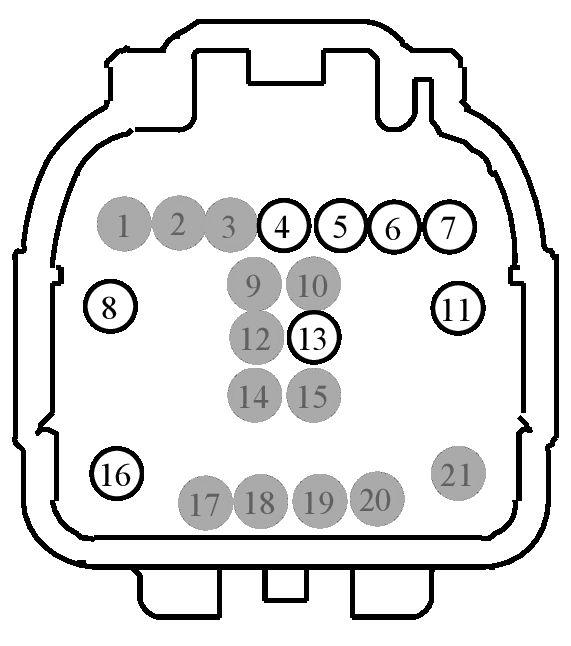

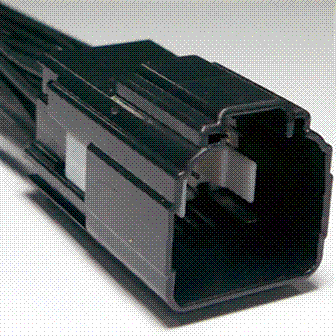

MALE
Harness
14D724

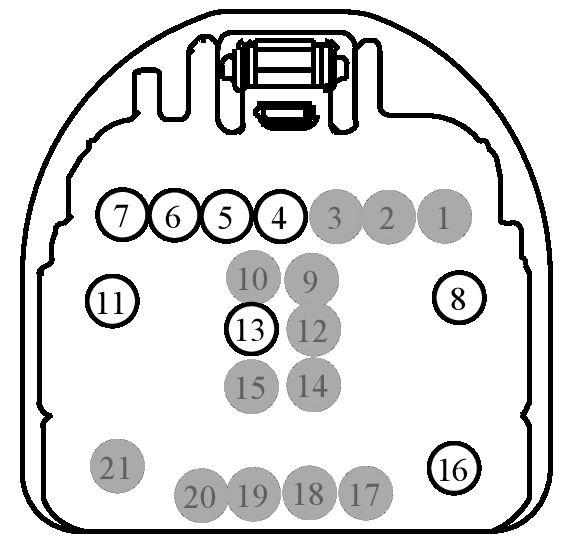

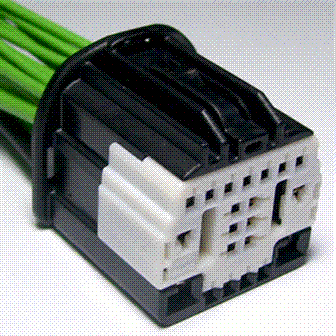

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | ||
| 2 | * | * | ||
| 3 | * | * | ||
| 4 | CR181 (WH) | 20 | 14D724 | |
| 4 | CR181 (WH) | 22 | 14A005 | |
| 5 | RR181 (BU-OG) | 20 | 14D724 | |
| 5 | RR181 (BU-OG) | 22 | 14A005 | |
| 6 | CR206 (BN) | 20 | 14D724 | |
| 6 | CR206 (BN) | 22 | 14A005 | |
| 7 | GD383 (BK-WH) | 20 | ||
| 8 | GD383 (BK-WH) | 20 | ||
| 9 | * | * | ||
| 10 | * | * | ||
| 11 | CPSD6 (VT-GY) | 18 | 14D724 | |
| 11 | CPSD6 (VT-GY) | 20 | 14A005 | |
| 12 | * | * | ||
| 13 | CHS75 (VT-OG) | 20 | 14D724 | |
| 13 | CHS75 (VT-OG) | 22 | 14A005 | |
| 14 | * | * | ||
| 15 | * | * | ||
| 16 | GD383 (BK-WH) | 18 | ||
| 17 | * | * | ||
| 18 | * | * | ||
| 19 | * | * | ||
| 20 | * | * |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1561
Service Part Number:
JU2Z-14S411-ARA
Gauge:
14 16 20
Pin material:
Tin
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1425
Service Part Number:
FU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1559
Service Part Number:
FU2Z-14S411-RB
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
