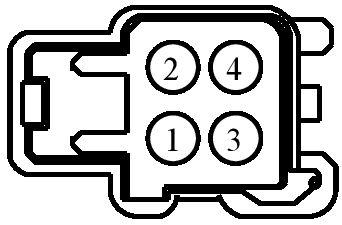

Connector End View (C3045) - REAR SEAT CUSHION HEATER MAT RH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3045	REAR SEAT CUSHION HEATER MAT RH	LT GY	14A699	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14421-DA	EU2Z-14421-CA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS54 (WH-GN)	22	CTRL MOD. - REAR HEATED SEAT RIGHT # CUSHION HEATER +	AU5T-14421-DA
2	VHS45 (GY-BN)	22	SENSOR - CUSHION TEMP REAR RIGHT	AU5T-14421-DA
3	RHS41 (GN-BN)	22	CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP	AU5T-14421-DA
4	CHS75 (VT-OG)	22	HEATER - SEAT REAR RIGHT CUSHION/BACK	AU5T-14421-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1076

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BUB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Connector - Inline
Element - Heated Seat
Lamp - Ash Tray
Lamp - Courtesy - Footwell
Module - Remote Keyless Entry
Motor - Heater/AC Blower (Auxiliary)
Radio - Amplifier
Switch - Convertable Top
