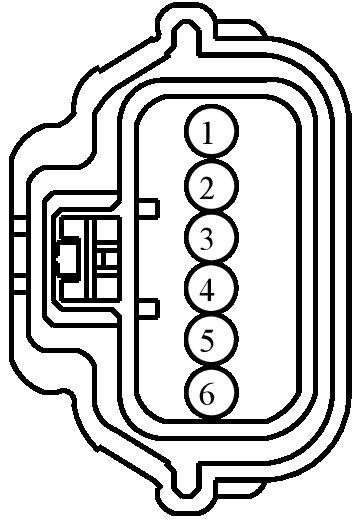

Connector End View (C3043) - OCCUPANT CLASSIFICATION SYSTEM MODULE (OCSM)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3043 | OCCUPANT CLASSIFICATION SYSTEM MODULE (OCSM) | 14D230 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBX02 (BN-RD) | 20 | POWER - SEAT # RUN/START OCCUPANT CLASSIFICATION MODULE | NA | ||||
| 2 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | NA | ||||
| 3 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | NA | ||||
| 4 | GD901 (BK) | 20 | GROUND - PASSENGER SEAT # RESTRAINTS CLEAN | NA | ||||
| 5 | LR142 (YE-BU) | 20 | CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD + | NA | ||||
| 6 | VR210 (BU-BN) | 20 | SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD | NA | ||||

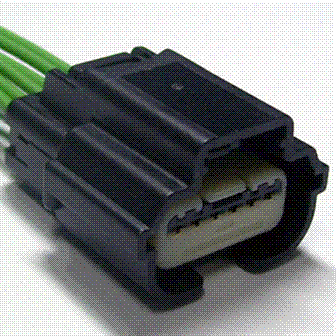

Available Pigtail Kits
Pigtail Kit Part Number WPT-1338
Service Part Number:
9U2Z-14S411-BB
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Module - Occupant Classification
- Sensor - Acceleration Pedal Position
- Sensor - Transmission Range
- Switch - Door Ajar / Interior Lamp
