Connector End View (C2607) - PASSENGER KNEE AIRBAG
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2607 | PASSENGER KNEE AIRBAG | GY | 14401 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14474-CBA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR169 (VT) | 20 | CTRL MOD. - AIR BAG PASSENGER KNEE + | DU5T-14474-CBA | ||||
| 2 | RR169 (GY-VT) | 20 | CTRL MOD. - AIR BAG PASSENGER KNEE - | DU5T-14474-CBA | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | DU5T-14474-CBA | ||||

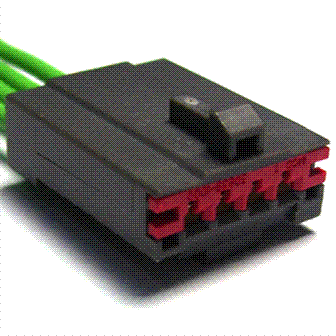

Available Pigtail Kits
Pigtail Kit Part Number WPT-1479
Service Part Number:
GU2Z-14S411-VA
Gauge:
16
Pin material:
Gold
Cavities:
4
Vehicle Uses:
- Airbag - Knee
- Inflator - Safety Belt
- Module - Airbag
Pigtail Kit Part Number WPT-1536
Service Part Number:
GU2Z-14S411-VB
Gauge:
16
Pin material:
Gold
Cavities:
4
Vehicle Uses:
- Airbag - Knee
- Connector - Inline
- Inflator - Safety Belt
- Module - Airbag
