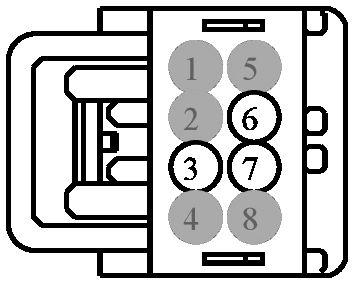

Connector End View (C2512B) - IMAGE PROCESSING MODULE B (IPMB)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2512B	IMAGE PROCESSING MODULE B (IPMB)	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	VMP24 (WH)	26	CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS	9U5T-14474-LA
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-LA
7	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-LA
8	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1233

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AZA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Air Suspension
