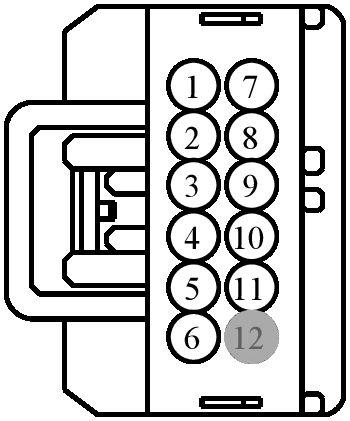

Connector End View (C2512A) - IMAGE PROCESSING MODULE B (IPMB)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2512A	IMAGE PROCESSING MODULE B (IPMB)	NA	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64
3F2T-14474-RA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB23 (BN-YE)	18	FUSE - 23 OR CIRCUIT BREAKER	9U5T-14474-MA
2	VMP22 (BU-BN)	20	CAMERA - REAR PARK ASSIST # DIGITAL VIDEO OUT+ (LVDS+)	9U5T-14474-MA
3	VMP23 (BN-GN)	20	CAMERA - REAR PARK ASSIST # DIGITAL VIDEO OUT- (LVDS-)	9U5T-14474-MA
4	DMP22 (*)	20	CAMERA - REAR PARK ASSIST D	3F2T-14474-RA
5	VMP26 (YE-BU)	22	CAMERA - FRONT PARK ASSIST # DIGITAL VIDEO OUT- (LVDS-)	9U5T-14474-LA
6	VMP25 (BN-YE)	22	CAMERA - FRONT PARK ASSIST # DIGITAL VIDEO OUT+ (LVDS+)	9U5T-14474-LA
7	VMP43 (GN-BU)	20	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT +	9U5T-14474-MA
8	VMP44 (VT-GY)	20	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT -	9U5T-14474-MA
9	DMP43 (*)	20	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT D	3F2T-14474-RA
10	DMP25 (BK)	20	CAMERA - FRONT PARK ASSIST # DIGITAL VIDEO OUT D	9U5T-14474-MA
11	GD215 (BK-GY)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	9U5T-14474-MA
12	*	*	Not Used	N/A

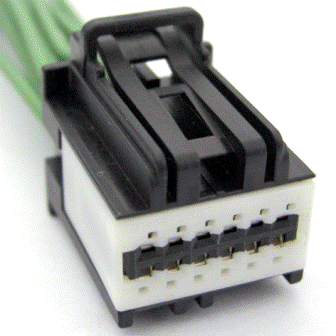

Available Pigtail Kits

Pigtail Kit Part Number WPT-930

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-DA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Climate Control Seat
Module - Heated Seat (Rear)
