Connector End View (C2428) - UPSHIFT PADDLE SWITCH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2428 | UPSHIFT PADDLE SWITCH | GY | PIA | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * (*) | * | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | N/A | ||||
| 2 | * (*) | * | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | N/A | ||||
| 3 | * (*) | * | GROUND - CROSS CAR BEAM # 2ND POINT | N/A | ||||
| 4 | * (*) | * | CTRL MOD. - IP/SWITCH ILLUMINATION | N/A | ||||

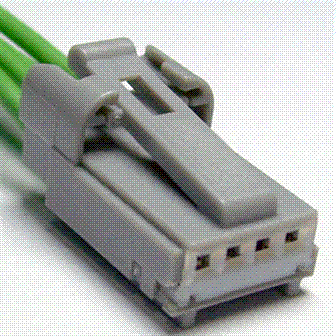

Available Pigtail Kits
Pigtail Kit Part Number WPT-1013
Service Part Number:
9U2Z-14S411-TA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Module - Auto Lamps
- Sensor - Sunload
