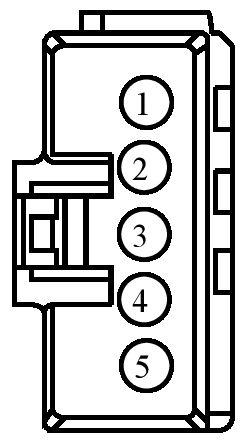

Connector End View (C2414) - STEERING ANGLE SENSOR MODULE (SASM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2414	STEERING ANGLE SENSOR MODULE (SASM)	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-RZA	FU2Z-14474-AA	0.64
DU5T-14474-BBA	Not Available
AU5T-14474-HA	FU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD214 (BK-BU)	10	GROUND - INSTRUMENT PANEL STRUCTURE	DU5T-14474-BBA
2	VDB25 (GN-OG)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	AU5T-14474-HA
3	VDB26 (GY-BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	AU5T-14474-HA
4	CBP37 (WH)	18	FUSE - 37 OR CIRCUIT BREAKER	96AG-14474-RZA
5	SBF05 (GY-RD)	10	FUSE - 5	DU5T-14474-BBA

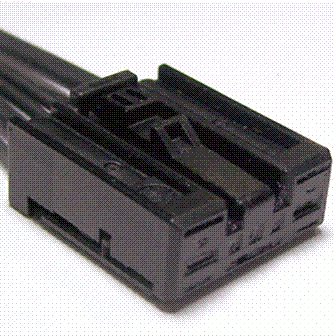

Available Pigtail Kits

Pigtail Kit Part Number WPT-1450

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-PB

Gauge:

14 20

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Clockspring
Module - Power Steering
Motor - Seat Height (Front)
Motor - Seat Height (Rear)
Motor - Seat Recline
