Connector End View (C2398) - GLOBAL POSITIONING SYSTEM MODULE (GPSM)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2398 | GLOBAL POSITIONING SYSTEM MODULE (GPSM) | 14C210 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-MA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-NA | DU2Z-14474-BA | 0.64 |

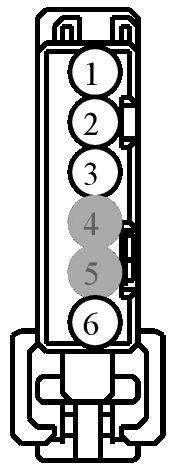

| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBP32 (VT-RD) | 20 | FUSE - 32 OR CIRCUIT BREAKER | 9U5T-14474-MA | ||||
| 2 | VDB06 (GY-OG) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | 9U5T-14474-NA | ||||
| 3 | VDB07 (VT-OG) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | 9U5T-14474-NA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | 9U5T-14474-MA | ||||

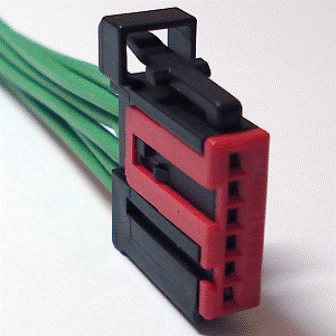

Available Pigtail Kits
Pigtail Kit Part Number WPT-958
Service Part Number:
6U2Z-14S411-LB
Gauge:
18 20
Pin material:
Tin & Silver
Cavities:
6
Vehicle Uses:
- Antenna - GPS
- Module - Global Positioning
