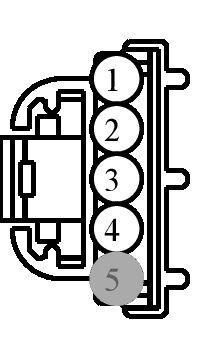

Connector End View (C2395) - HEAD UP DISPLAY (HUD) MODULE

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2395	HEAD UP DISPLAY (HUD) MODULE	BK	14C210	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA	DU2Z-14474-BA	0.64
9U5T-14474-NA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-MA
2	VDB26 (GY-BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-NA
3	VDB25 (GN-OG)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-NA
4	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	9U5T-14474-MA
5	*	*	Not Used	N/A

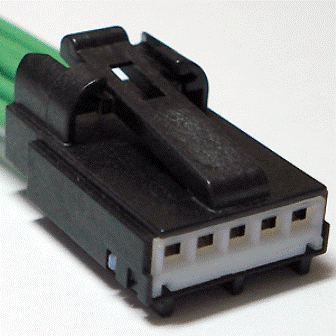

Available Pigtail Kits

Pigtail Kit Part Number WPT-983

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-SB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Heads Up Display
Switch - Overdrive Cancel
Switch - Power Window - LH - Rear
Switch - Power Window - Passenger (Front)
