Connector End View (C2383) - SYNC MODULE [APIM]

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C2383 SYNC MODULE [APIM] BK 14401 part# N/A Not Available

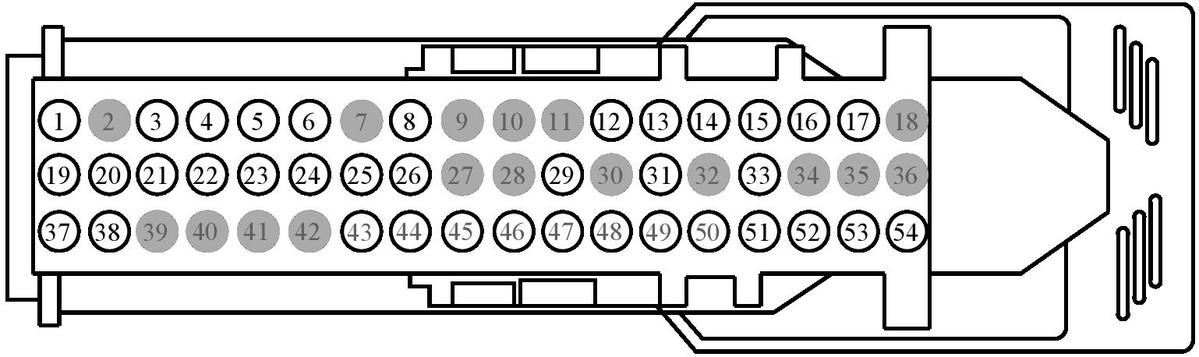

GFDWR1189Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DA DU2Z-14474-AA 0.64
9U5T-14474-YA DU2Z-14474-AA 0.64
FU5T-14474-LA DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SBP32 (VT-RD) 20 FUSE - 32 OR CIRCUIT BREAKER 9U5T-14474-DA
2 * * Not Used N/A
3 VME80 (VT-GN) 26 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) 9U5T-14474-YA
4 RME80 (BU-GY) 26 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) 9U5T-14474-YA
5 VMM23 (BN-VT) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + FU5T-14474-LA
6 RMM23 (WH-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - FU5T-14474-LA
7 * * Not Used N/A
8 LME89 (YE-BU) 26 CTRL MOD. - MEDIA CONNECTIVITY POWER 9U5T-14474-YA
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 VMM23 (BN-VT) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + FU5T-14474-LA
13 RMM23 (WH-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - FU5T-14474-LA
14 VMP22 (BU-BN) 20 CAMERA - REAR PARK ASSIST # DIGITAL VIDEO OUT+ (LVDS+) 9U5T-14474-DA
14 VMP43 (GN-BU) 20 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT + 9U5T-14474-DA
15 VMP23 (BN-GN) 20 CAMERA - REAR PARK ASSIST # DIGITAL VIDEO OUT- (LVDS-) 9U5T-14474-DA
15 VMP44 (VT-GY) 20 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT - 9U5T-14474-DA
16 VDB29 (GN-BU) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH 9U5T-14474-YA
17 VDB30 (WH-GN) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW 9U5T-14474-YA
18 * * Not Used N/A
19 VDB29 (GN-BU) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH 9U5T-14474-YA
20 VDB30 (WH-GN) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW 9U5T-14474-YA
21 DME80 (*) 20 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D 9U5T-14474-DA
22 DME52 (*) 20 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO D 9U5T-14474-DA
22 DME52 (*) 20 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO D 9U5T-14474-DA
23 VME52 (BU) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + FU5T-14474-LA
23 VME53 (VT-GN) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT + 9U5T-14474-YA
24 RME52 (GY-OG) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - FU5T-14474-LA
24 RME53 (BN-WH) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT - 9U5T-14474-YA
25 VME52 (BU) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + 9U5T-14474-YA
25 VME53 (VT-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT + FU5T-14474-LA
26 RME52 (GY-OG) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - 9U5T-14474-YA
26 RME53 (BN-WH) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT - FU5T-14474-LA
27 * * Not Used N/A
28 * * Not Used N/A
29 DMM23 (BK) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL D FU5T-14474-LA
30 * * Not Used N/A
31 DMM23 (BK) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL D FU5T-14474-LA
32 * * Not Used N/A
33 DMP22 (*) 20 CAMERA - REAR PARK ASSIST D 9U5T-14474-DA
34 * * Not Used N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 GD215 (BK-GY) 20 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT 9U5T-14474-DA
38 GD215 (BK-GY) 20 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT 9U5T-14474-DA
38 RME89 (WH-BU) 26 CTRL MOD. - MEDIA CONNECTIVITY GROUND 9U5T-14474-YA
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 VME90 (GY-BU) 26 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) 9U5T-14474-YA
52 VME91 (WH-BN) 26 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) 9U5T-14474-YA
53 VDB04 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH FU5T-14474-LA
54 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW FU5T-14474-LA
