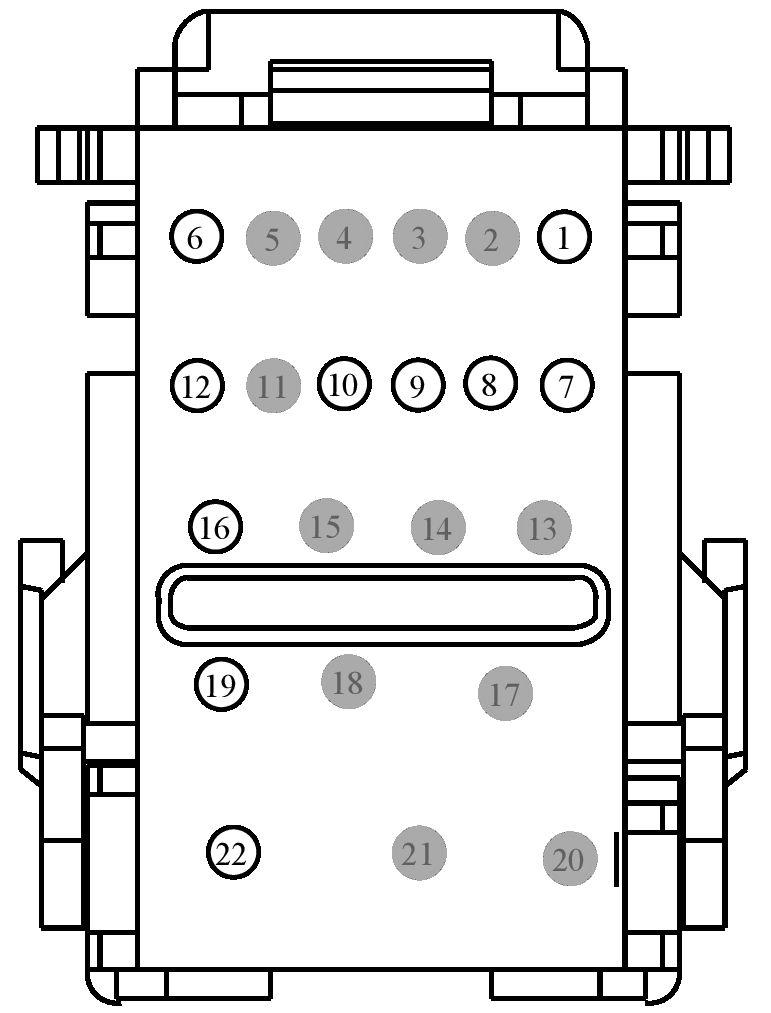

Connector End View (C2280H) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280H |
BODY CONTROL MODULE (BCM) |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| BU5T-14474-UA |
DU2Z-14474-DA |
1.5 |
| F8VB-14474-BA |
EU2Z-14474-AA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CCB08 (VT-WH) |
20 |
SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
BU5T-14474-UA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
CBP21 (BU-GY) |
22 |
FUSE - 21 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 7 |
CBP19 (BN-WH) |
18 |
FUSE - 19 OR CIRCUIT BREAKER |
7C3T-14474-DA |
| 8 |
SBP13 (GY-RD) |
22 |
FUSE - 13 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 9 |
SBP32 (VT-RD) |
20 |
FUSE - 32 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 10 |
SBP12 (GN-RD) |
20 |
FUSE - 12 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
SBP18 (YE-RD) |
22 |
FUSE - 18 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
CBP37 (WH) |
18 |
FUSE - 37 OR CIRCUIT BREAKER |
F8VB-14474-BA |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
SBP20 (GN-RD) |
20 |
FUSE - 20 OR CIRCUIT BREAKER |
F8VB-14474-BA |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
CBP33 (WH-BN) |
16 |
FUSE - 33 OR CIRCUIT BREAKER |
DU5T-14474-TA |
