Connector End View (C2280G) - BODY CONTROL MODULE (BCM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C2280G BODY CONTROL MODULE (BCM) BK 14401 part# N/A Not Available

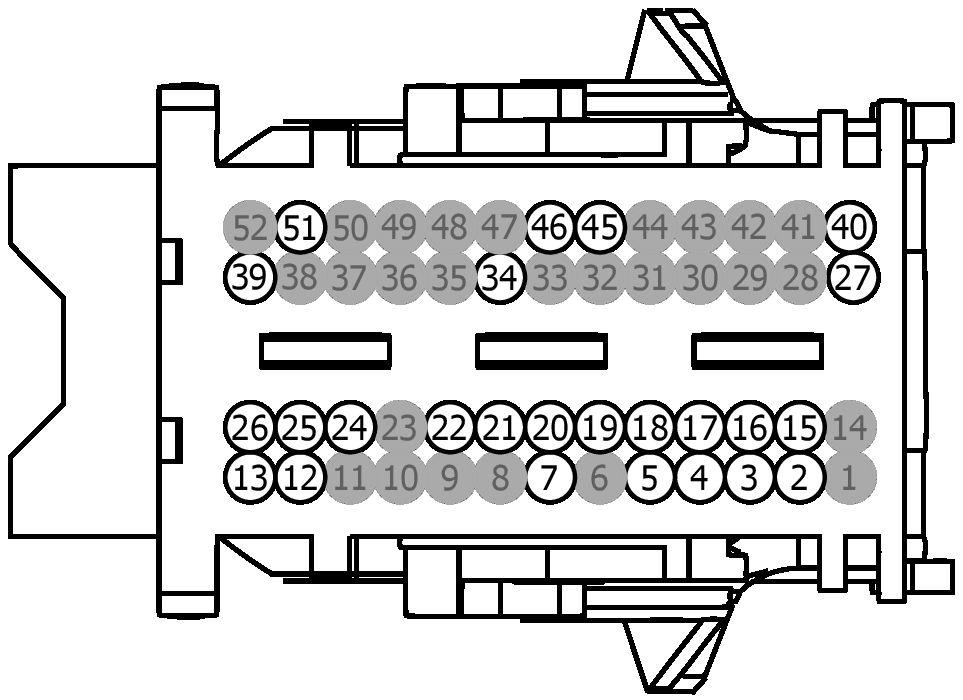

GFDWR1180Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-YA DU2Z-14474-AA 0.64
FU5T-14474-LA DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 CLS34 (GY) 26 SWITCH - PARK LAMPS 9U5T-14474-YA
3 CLN56 (BN-VT) 26 DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN 9U5T-14474-YA
4 CMP18 (GN-BN) 26 SWITCH - PARKING AID 9U5T-14474-YA
5 CPK35 (YE-OG) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + FU5T-14474-LA
6 * * Not Used N/A
7 CLN55 (YE-VT) 26 DIMMER - IP/SWITCH ILLUMINATION # DIM UP 9U5T-14474-YA
8 * * Not Used N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 CDC26 (GY-OG) 22 RELAY - STARTER INHIBIT FU5T-14474-LA
13 VDN15 (BU-GY) 22 CTRL MOD. - LIN BUS # BCM 7 FU5T-14474-LA
14 * * Not Used N/A
15 CLF24 (YE-BU) 26 SWITCH - HEADLAMP ON 9U5T-14474-YA
16 CLF23 (WH-VT) 26 SWITCH - HEADLAMP OFF 9U5T-14474-YA
17 CMP32 (GN) 22 SWITCH - ACTIVE PARK ASSIST (AUTOPARK) FU5T-14474-LA
18 RRH02 (GN-WH) 22 CTRL MOD. - SWITCH HORN FU5T-14474-LA
19 CLS32 (BN-YE) 26 SWITCH - HAZARD 9U5T-14474-YA
20 CLF21 (GY-VT) 26 SWITCH - FOG LAMPS FRONT 9U5T-14474-YA
21 CLF19 (VT-GN) 26 SWITCH - AUTOLAMP (1) ON 9U5T-14474-YA
22 RLF14 (GY-BN) 26 SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - 9U5T-14474-YA
23 * * Not Used N/A
24 VLF14 (BU-BN) 26 SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + 9U5T-14474-YA
25 VDN02 (GN-OG) 22 CTRL MOD. - LIN BUS # BCM 2 FU5T-14474-LA
26 VPL56 (BU-GY) 26 RECEIVER - REMOTE RF 9U5T-14474-YA
27 RPK05 (YE-OG) 22 CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) - FU5T-14474-LA
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 CMP02 (GN-BU) 26 CTRL MOD. - PARKING AID # INDICATOR STATUS 9U5T-14474-YA
35 * * Not Used N/A
36 * * Not Used N/A
37 * * Not Used N/A
38 * * Not Used N/A
39 CPK36 (VT-BN) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED FU5T-14474-LA
40 VPK05 (BN-GN) 22 CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) + FU5T-14474-LA
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
45 VLN04 (VT-GY) 26 CTRL MOD. - IP/SWITCH ILLUMINATION 9U5T-14474-YA
46 CET53 (BU-OG) 22 CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK FU5T-14474-LA
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 CPK34 (BN-VT) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + FU5T-14474-LA
52 * * Not Used N/A
