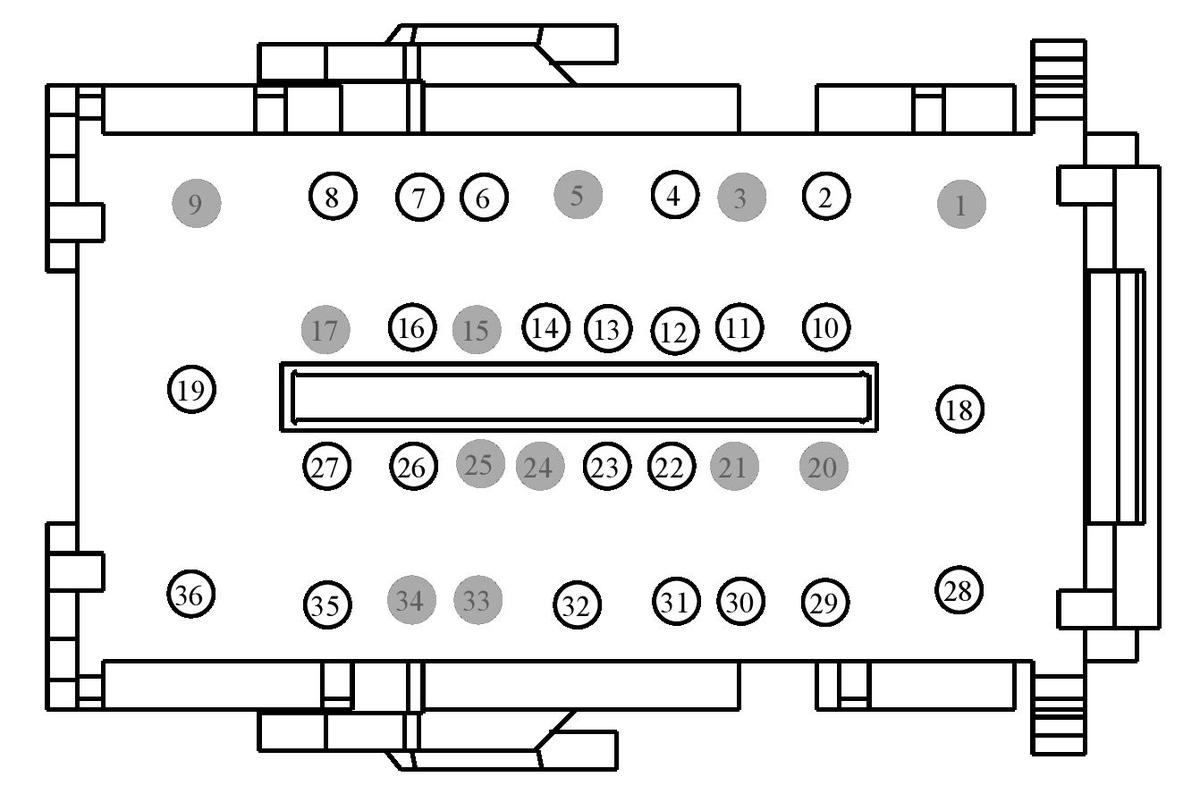

Connector End View (C2280F) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280F |
BODY CONTROL MODULE (BCM) |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| BU5T-14474-UA |
DU2Z-14474-DA |
1.5 |
| DU5T-14474-JBA |
EU2Z-14474-AA |
2.8 |
| DU5T-14474-LBA |
EU2Z-14474-AA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
SBP28 (GN-RD) |
14 |
FUSE - 28 OR CIRCUIT BREAKER |
DU5T-14474-LBA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
CBX07 (GN-RD) |
22 |
POWER - CTRL MOD. AMBIENT LIGHTING |
BU5T-14474-UA |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
GD326 (BK-WH) |
18 |
GROUND - FLOOR CROSS MEMBER REAR LEFT |
7C3T-14474-DA |
| 7 |
GD326 (BK-WH) |
18 |
GROUND - FLOOR CROSS MEMBER REAR LEFT |
7C3T-14474-DA |
| 8 |
CBP36 (BU-BN) |
20 |
FUSE - 36 OR CIRCUIT BREAKER |
DU5T-14474-JBA |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
GD382 (BK-GY) |
18 |
GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT |
DU5T-14474-JBA |
| 11 |
CLS28 (BU-WH) |
22 |
CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) |
BU5T-14474-UA |
| 12 |
CLS05 (BU-GY) |
22 |
CTRL MOD. - PARK |
BU5T-14474-UA |
| 13 |
VLN33 (GY-VT) |
22 |
CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) |
BU5T-14474-UA |
| 14 |
CLN09 (YE-GN) |
22 |
RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |
BU5T-14474-UA |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
SBP10 (YE-RD) |
22 |
FUSE - 10 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
SBP26 (YE-RD) |
12 |
FUSE - 26 OR CIRCUIT BREAKER |
DU5T-14474-RBA |
| 19 |
SBP27 (BU-RD) |
12 |
FUSE - 27 OR CIRCUIT BREAKER |
DU5T-14474-RBA |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
SBP32 (VT-RD) |
22 |
FUSE - 32 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 23 |
CBP22 (GN-OG) |
22 |
FUSE - 22 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 24 |
* |
* |
Not Used |
N/A |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
CLN25 (VT) |
20 |
RELAY - PUDDLE LAMPS (KERB ILLUM.) |
BU5T-14474-UA |
| 27 |
CPL51 (BU-GN) |
14 |
CTRL MOD. - DOOR LOCK # DRIVER UNLOCK |
DU5T-14474-LBA |
| 28 |
SBP25 (RD) |
12 |
FUSE - 25 OR CIRCUIT BREAKER |
DU5T-14474-RBA |
| 29 |
SBP02 (YE-RD) |
20 |
FUSE - 2 OR CIRCUIT BREAKER |
DU5T-14474-JBA |
| 30 |
CBP23 (BN-YE) |
22 |
FUSE - 23 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 31 |
CPL10 (GN-WH) |
20 |
CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE |
BU5T-14474-UA |
| 32 |
CPL13 (BN-GN) |
14 |
CTRL MOD. - DOOR LOCK # ALL UNLOCK |
DU5T-14474-LBA |
| 33 |
* |
* |
Not Used |
N/A |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
CPL11 (GY-BN) |
14 |
CTRL MOD. - DOOR LOCK # ALL LOCK |
DU5T-14474-LBA |
| 36 |
CBP38 (GY-BU) |
14 |
FUSE - 38 OR CIRCUIT BREAKER |
DU5T-14474-PBA |
