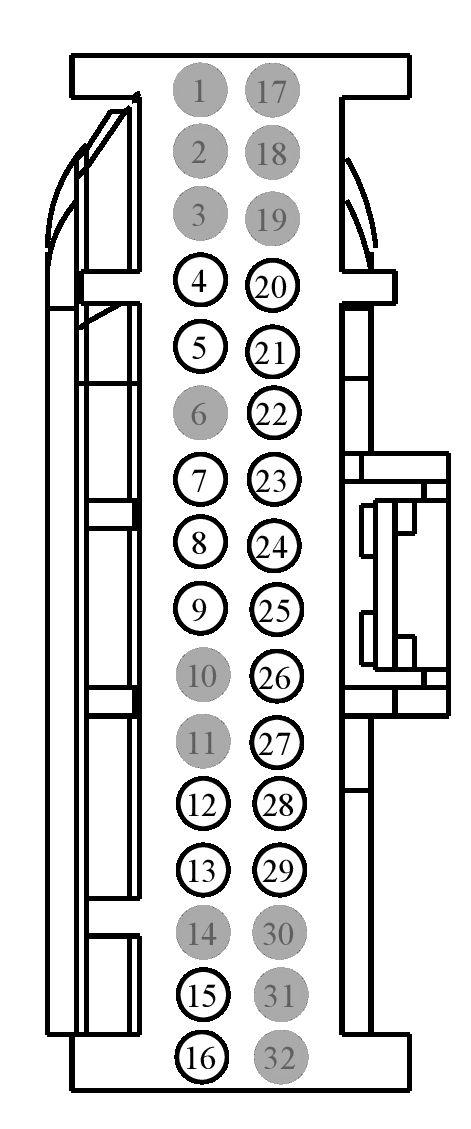

Connector End View (C2280E) - BODY CONTROL MODULE (BCM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280E	BODY CONTROL MODULE (BCM)	BK	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
FU5T-14474-LA	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	VPK47 (VT)	22	SENSOR - KEYLESS VEHICLE HANDLE REAR PASSENGER SIDE POWER/DATA	FU5T-14474-LA
5	VPK40 (WH-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA	FU5T-14474-LA
6	*	*	Not Used	N/A
7	VMP17 (YE-OG)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	FU5T-14474-LA
8	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)	FU5T-14474-LA
9	VMP30 (BN)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE	FU5T-14474-LA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	VPK02 (VT-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER +	FU5T-14474-LA
13	VPK01 (BN-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER +	FU5T-14474-LA
14	*	*	Not Used	N/A
15	RPK06 (BU-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) -	FU5T-14474-LA
16	VPK06 (GY-VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) +	FU5T-14474-LA
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	FU5T-14474-LA
21	VPK39 (GN-VT)	22	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	FU5T-14474-LA
22	VPK46 (GY)	22	SENSOR - KEYLESS VEHICLE HANDLE REAR DRIVER SIDE POWER/DATA	FU5T-14474-LA
23	VMP15 (YE-GN)	22	SENSOR - PARKING AID # REAR # (LEFT OUTER)	FU5T-14474-LA
24	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	FU5T-14474-LA
25	VMP29 (GN-OG)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR LEFT SIDE	FU5T-14474-LA
26	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +	FU5T-14474-LA
27	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -	FU5T-14474-LA
28	RPK01 (WH-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER -	FU5T-14474-LA
29	RPK02 (GY-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER -	FU5T-14474-LA
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A

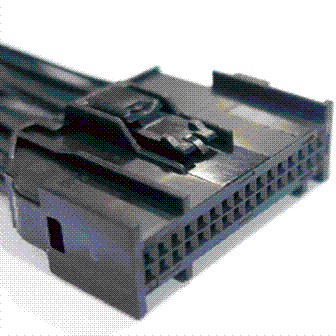

Available Pigtail Kits

Pigtail Kit Part Number WPT-1512

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-DA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Body Control
