Connector End View (C2280D) - BODY CONTROL MODULE (BCM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C2280D BODY CONTROL MODULE (BCM) BU 14A005 part# N/A Not Available

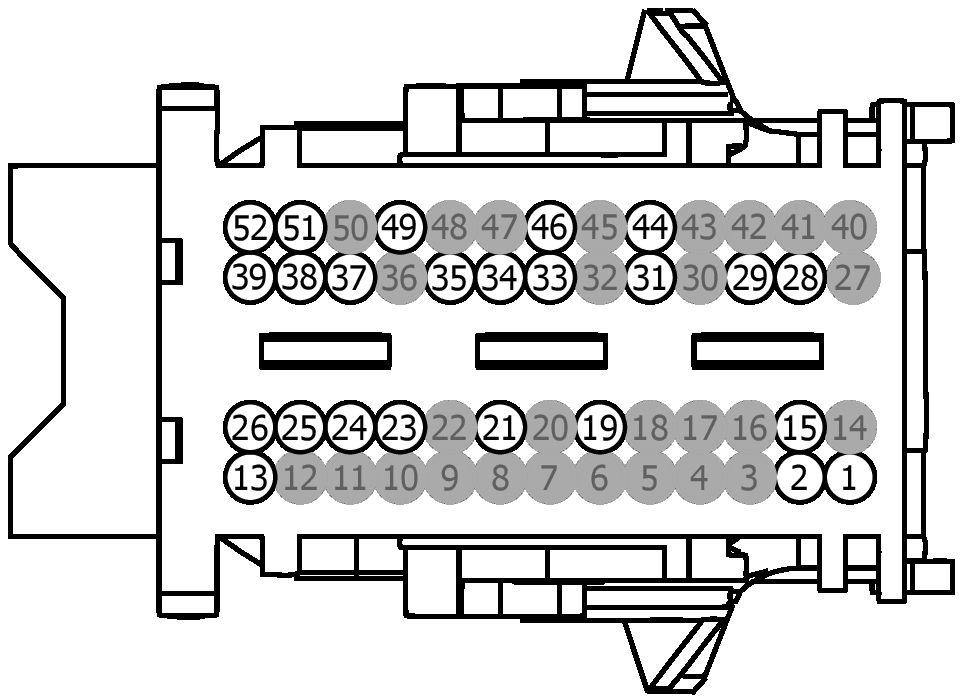

GFDWR1176Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
FU5T-14474-LA DU2Z-14474-AA 0.64
9U5T-14474-DA DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CPL45 (BN) 22 SWITCH - LIFTGATE/DECKLID RELEASE FU5T-14474-LA
2 CPK30 (VT-GN) 22 SWITCH - KEYLESS KEYPAD LINE B FU5T-14474-LA
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 * * Not Used N/A
13 CLS17 (YE-GY) 22 CTRL MOD. - STOP HIGH MOUNT FU5T-14474-LA
14 * * Not Used N/A
15 CPK31 (YE-GN) 22 SWITCH - KEYLESS KEYPAD LINE C FU5T-14474-LA
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 CPL39 (YE) 22 SWITCH - LATCH REAR PASSENGER SIDE OR RIGHT REAR # AJAR (INCL.SLIDING DOOR) FU5T-14474-LA
20 * * Not Used N/A
21 CPL31 (WH) 22 SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR FU5T-14474-LA
22 * * Not Used N/A
23 CLS53 (GY-VT) 22 CTRL MOD. - STOP/TURN RIGHT OUTBOARD FU5T-14474-LA
24 CLS51 (WH-GN) 22 CTRL MOD. - STOP/TURN LEFT OUTBOARD FU5T-14474-LA
25 CLS08 (VT-GN) 22 CTRL MOD. - PARK REAR LEFT FU5T-14474-LA
26 CLS23 (GY-OG) 22 CTRL MOD. - TURN LAMP LEFT REAR FU5T-14474-LA
27 * * Not Used N/A
28 CPK29 (GY-BU) 22 SWITCH - KEYLESS KEYPAD LINE A FU5T-14474-LA
29 CPK52 (VT-WH) 22 CTRL MOD. - LIFTGATE/TAILGATE HANDS-FREE # OUTPUT FU5T-14474-LA
30 * * Not Used N/A
31 CLS55 (GN-BU) 22 LAMP - TURN REAR LEFT # SIGNAL OUT FU5T-14474-LA
32 * * Not Used N/A
33 CPL26 (GN-VT) 22 SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR FU5T-14474-LA
34 CPL44 (YE-OG) 22 SWITCH - LIFTGATE/DECKLID/CARGO # AJAR FU5T-14474-LA
35 CPK28 (WH-GN) 22 CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION FU5T-14474-LA
36 * * Not Used N/A
37 VDN04 (VT-WH) 26 CTRL MOD. - LIN BUS # BCM 4 9U5T-14474-DA
37 VDN04 (VT-WH) 22 CTRL MOD. - LIN BUS # BCM 4 9U5T-14474-DA
38 VDN13 (BN) 22 CTRL MOD. - LIN BUS # BCM 5 FU5T-14474-LA
39 CPL89 (BN-BU) 22 CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER FU5T-14474-LA
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 CLS54 (BU-OG) 22 LAMP - TURN REAR RIGHT # SIGNAL OUT FU5T-14474-LA
45 * * Not Used N/A
46 CPL36 (GN) 22 SWITCH - LATCH REAR DRIVER SIDE OR LEFT REAR # AJAR (INCL.SLIDING DOOR) FU5T-14474-LA
47 * * Not Used N/A
48 * * Not Used N/A
49 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) FU5T-14474-LA
50 * * Not Used N/A
51 CLS09 (WH-OG) 22 CTRL MOD. - PARK REAR RIGHT FU5T-14474-LA
52 CLS27 (GN-OG) 22 CTRL MOD. - TURN LAMP RIGHT REAR FU5T-14474-LA
