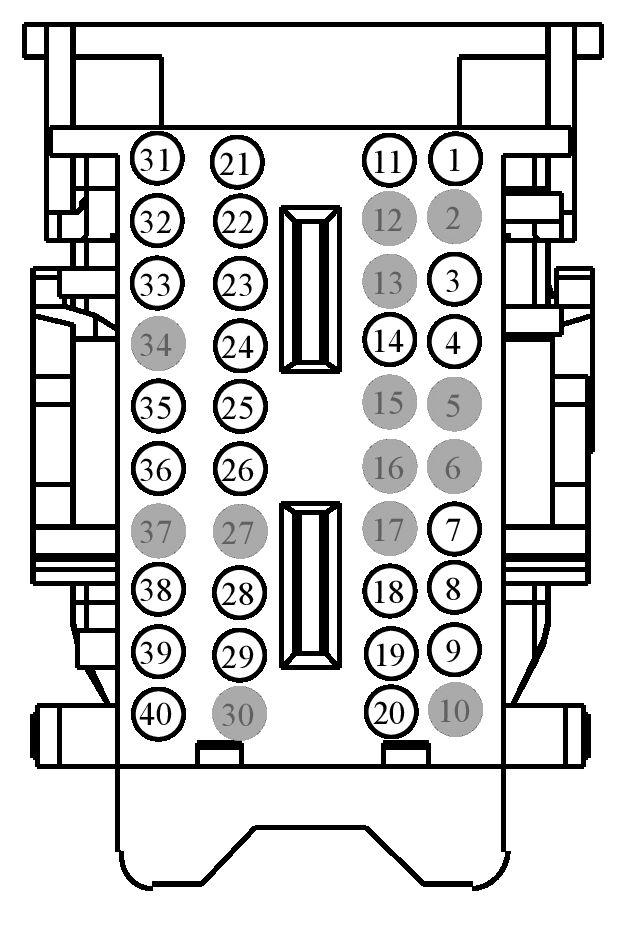

Connector End View (C2280C) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280C |
BODY CONTROL MODULE (BCM) |
BK |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| FU5T-14474-LB |
DU2Z-14474-AA |
0.64 |
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VMP21 (WH-BN) |
22 |
SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE |
9U5T-14474-DB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
LDC59 (BU-WH) |
22 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR + |
9U5T-14474-DB |
| 4 |
CDC56 (WH) |
22 |
CTRL MOD. - BATTERY MONITORING SYSTEM LIN BUS |
9U5T-14474-DB |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
LMP06 (VT-GY) |
22 |
CTRL MOD. - PARKING AID # SENSORS FRONT + |
9U5T-14474-DB |
| 8 |
SDC57 (BU-OG) |
22 |
CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR |
9U5T-14474-DB |
| 9 |
CDC45 (VT-BN) |
20 |
CTRL MOD. - ELECTRICAL STEERING COLUMN LOCK + |
9U5T-14474-DB |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
VMP20 (GY-OG) |
22 |
SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE |
9U5T-14474-DB |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
CPL25 (BU-OG) |
20 |
SWITCH - HOOD # AJAR |
9U5T-14474-DB |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
FU5T-14474-LB |
| 18 |
CE436 (VT-OG) |
20 |
CTRL MOD. -WAKE UP PCM |
FU5T-14474-LB |
| 19 |
RDC59 (GY-BN) |
22 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR - |
9U5T-14474-DB |
| 20 |
CRH02 (BU-WH) |
22 |
SWITCH - HORN |
9U5T-14474-DB |
| 21 |
VMP13 (BU-OG) |
22 |
SENSOR - PARKING AID # FRONT # (RIGHT OUTER) |
9U5T-14474-DB |
| 22 |
VMP12 (BU-GY) |
22 |
SENSOR - PARKING AID # FRONT # (RIGHT INNER) |
9U5T-14474-DB |
| 23 |
CDC71 (YE-GY) |
22 |
CTRL MOD. - POWER OUTLET ENABLE OR SET |
FU5T-14474-LB |
| 24 |
CDC40 (VT-GY) |
22 |
RELAY - DELAY ACCESSORY |
9U5T-14474-DB |
| 25 |
CDC55 (BN-VT) |
20 |
RELAY - RUN START |
9U5T-14474-DB |
| 26 |
CE226 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
9U5T-14474-DB |
| 27 |
* |
* |
Not Used |
N/A |
| 28 |
CMC19 (GY-VT) |
20 |
SWITCH - LOW LEVEL BRAKE FLUID |
9U5T-14474-DB |
| 29 |
CR115 (BN) |
20 |
CTRL MOD. - INDICATOR DEPLOYMENT (RDI) |
9U5T-14474-DB |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
VMP11 (BU-GN) |
22 |
SENSOR - PARKING AID # FRONT # (LEFT OUTER) |
9U5T-14474-DB |
| 32 |
VMP10 (WH-BU) |
22 |
SENSOR - PARKING AID # FRONT # (LEFT INNER) |
9U5T-14474-DB |
| 33 |
CDC72 (BN-WH) |
22 |
CTRL MOD. - POWER OUTLET DISABLE OR RESET |
9U5T-14474-DB |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
RMP06 (YE-OG) |
20 |
CTRL MOD. - PARKING AID # SENSORS FRONT - |
9U5T-14474-DB |
| 36 |
CLF62 (VT-WH) |
20 |
CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT |
9U5T-14474-DB |
| 37 |
* |
* |
Not Used |
N/A |
| 38 |
CLS25 (YE-VT) |
20 |
CTRL MOD. - TURN LAMP RIGHT FRONT |
9U5T-14474-DB |
| 39 |
CLS21 (BU-GN) |
20 |
CTRL MOD. - TURN LAMP LEFT FRONT |
9U5T-14474-DB |
| 40 |
CLF61 (GY-BU) |
20 |
CTRL MOD. - DAYTIME RUNNING LIGHT LEFT |
9U5T-14474-DB |
