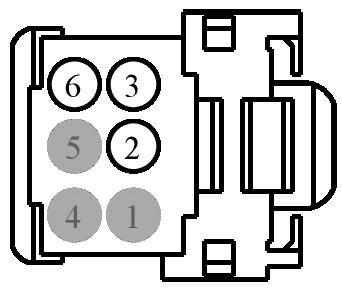

Connector End View (C2269) - FRONT POWER LIFTGATE SWITCH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2269 |
FRONT POWER LIFTGATE SWITCH |
BN |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-LA |
DU2Z-14474-BA |
0.64 |
| 9U5T-14474-NA |
DU2Z-14474-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
9U5T-14474-LA |
| 3 |
VLN04 (VT-GY) |
26 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
9U5T-14474-NA |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
CPR63 (GY-YE) |
26 |
SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE |
9U5T-14474-NA |
