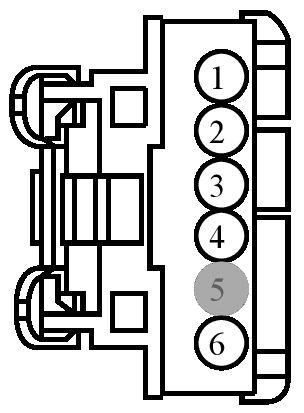

Connector End View (C2091) - TEMPERATURE DOOR ACTUATOR LH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2091	TEMPERATURE DOOR ACTUATOR LH	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-YA	DU2Z-14474-AA	0.64
FU5T-14474-LA	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CH239 (BU-WH)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS)	9U5T-14474-YA
2	RH111 (GY-BU)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS	FU5T-14474-LA
3	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS	FU5T-14474-LA
4	CH237 (VT-GY)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COMMON	9U5T-14474-YA
5	*	*	Not Used	N/A
6	CH238 (YE-OG)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS)	9U5T-14474-YA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1419

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-KA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Motor - Heater A/C Mode Door
Motor - Heater/AC Blend Door
Motor - Heater/AC Inlet Door
