Connector End View (C2004) - BLOWER MOTOR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2004 | BLOWER MOTOR | NA | 14401 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RH301 (GY-VT) | 10 | CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR - | 8S4T-14474-BA | ||||
| 2 | VH301 (YE-BU) | 10 | CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR + | 8S4T-14474-BA | ||||

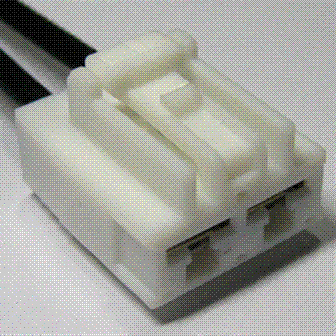

Available Pigtail Kits
Pigtail Kit Part Number WPT-1134
Service Part Number:
BU2Z-14S411-HA
Gauge: Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Motor - Heater/AC Blower (Auxiliary)
