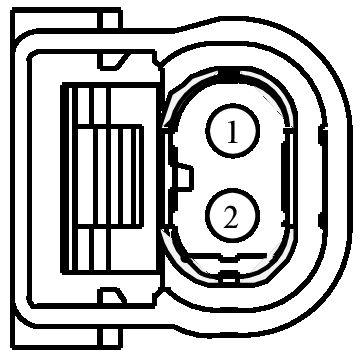

Connector End View (C1833) - TURBOCHARGER BYPASS VALVE (TCBY)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1833 | TURBOCHARGER BYPASS VALVE (TCBY) | LT GY | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-MA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK03 (GY) | 18 | FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) | AU5T-14474-MA | ||||
| 2 | CE148 (YE-GY) | 18 | CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE | AU5T-14474-MA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1303
Service Part Number:
CU2Z-14S411-ATA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Solenoid - Turbo Charger Bypass
