Connector End View (C1831) - TRANSFER CASE FLUID TEMPERATURE SENSOR

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1831	TRANSFER CASE FLUID TEMPERATURE SENSOR	BK	13A840	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14421-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	AU5T-14421-AA
2	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	AU5T-14421-AA

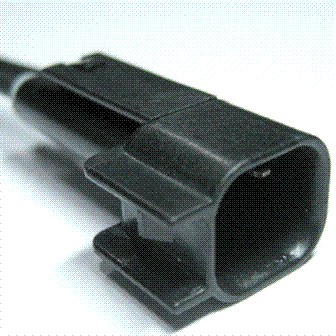

Available Pigtail Kits

Pigtail Kit Part Number WPT-1193

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DCAB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Element - Heated Seat
Lamp - CHMSL (Center High Mount Stop Lamp)
Lamp - Fog/Driving
Lamp - Side Marker (Rear Fender)
Mirror - Sideview
Sensor - Crash (Engine Compartment)
Speaker - Tweeter - LH - Front
Speaker - Tweeter - RH - Front
