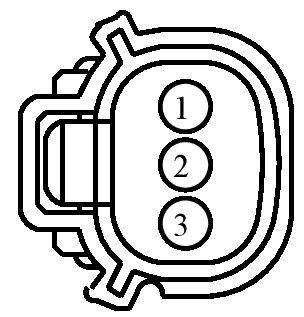

Connector End View (C1750) - SIGNATURE LAMP LH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1750 | SIGNATURE LAMP LH | LT GY | 15K867 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB20 (YE-VT) | 22 | FUSE - 20 OR CIRCUIT BREAKER | BU5T-14474-UA | ||||
| 2 | CLS05 (BU-GY) | 22 | CTRL MOD. - PARK | BU5T-14474-UA | ||||
| 3 | GD120 (BK-GN) | 22 | GROUND - FENDER FRONT LEFT | BU5T-14474-UA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1261
Service Part Number:
CU2Z-14S411-MA
Gauge:
16
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
