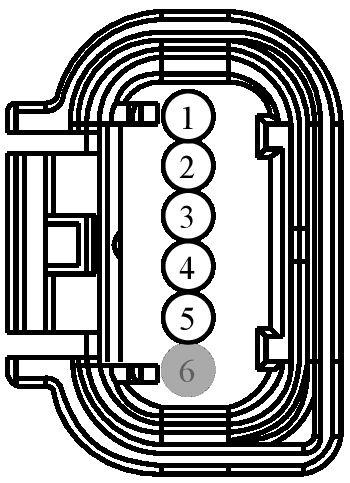

Connector End View (C1663) - FRONT PARKING AID CAMERA
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1663 | FRONT PARKING AID CAMERA | 15K867 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14474-EAA | DU2Z-14474-CA | 0.64 |
| 8U5T-14474-BA | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB23 (BN-YE) | 22 | FUSE - 23 OR CIRCUIT BREAKER | DU5T-14474-EAA | ||||
| 2 | VMP24 (WH) | 22 | CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS | DU5T-14474-EAA | ||||
| 3 | VMP26 (YE-BU) | 22 | CAMERA - FRONT PARK ASSIST # DIGITAL VIDEO OUT- (LVDS-) | DU5T-14474-EAA | ||||
| 4 | VMP25 (BN-YE) | 22 | CAMERA - FRONT PARK ASSIST # DIGITAL VIDEO OUT+ (LVDS+) | DU5T-14474-EAA | ||||
| 5 | DMP25 (BK) | 20 | CAMERA - FRONT PARK ASSIST # DIGITAL VIDEO OUT D | 8U5T-14474-BA | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits

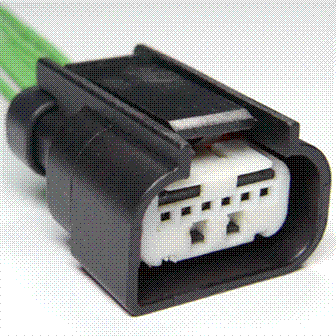

Pigtail Kit Part Number WPT-1556
Service Part Number:
CU2Z-14S411-AEB
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Front
- Camera - Reverse Park Aid

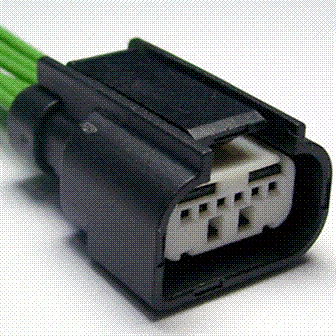

Pigtail Kit Part Number WPT-1280
Service Part Number:
CU2Z-14S411-AEA
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
