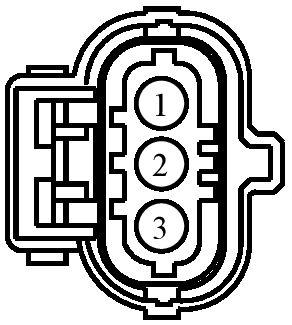

Connector End View (C1657) - ENGINE OIL PRESSURE (EOP) SENSOR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1657 | ENGINE OIL PRESSURE (EOP) SENSOR | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-KA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMC14 (BN-YE) | 18 | SENSOR - LOW LEVEL ENGINE OIL | 9U5T-14474-KA | ||||
| 2 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | 9U5T-14474-KA | ||||
| 3 | LE458 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) | 9U5T-14474-KA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1066
Service Part Number:
AU2Z-14S411-GA
Gauge:
14
Pin material:
Tin (greased)
Cavities:
3
Vehicle Uses:
- Sensor - Fuel Rail Pressure
