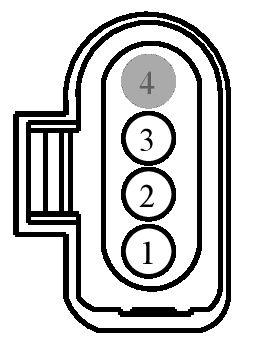

Connector End View (C1656) - WINDSHIELD WIPER MOTOR RH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1656 | WINDSHIELD WIPER MOTOR RH | BK | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-CAA | Not Available | |
| BU5T-14474-DAA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CRW25 (BU-GY) | 14 | RELAY - FRONT WIPER PARK | BU5T-14474-DAA | ||||
| 2 | GD123 (BK-GY) | 14 | GROUND - FENDER FRONT RIGHT | BU5T-14474-DAA | ||||
| 3 | VRW28 (WH-OG) | 20 | MOTOR - FRONT WIPER MASTER # MOTOR FRONT WIPER SLAVE | BU5T-14474-CAA | ||||
| 4 | * | * | Not Used | N/A | ||||

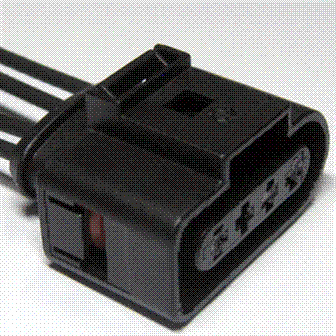

Available Pigtail Kits
Pigtail Kit Part Number WPT-1135
Service Part Number:
BU2Z-14S411-JA
Gauge:
14
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Motor - Windshield Wiper
