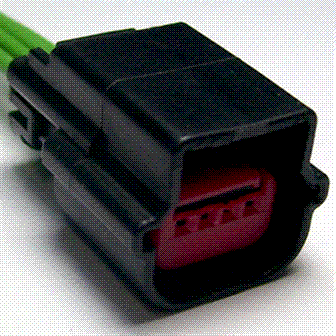

Connector End View (C1651) - ACTIVE GRILLE SHUTTER
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1651 | ACTIVE GRILLE SHUTTER | BK | 13A840 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BA | DU2Z-14474-CA | 0.64 |
| DU5T-14474-EAA | DU2Z-14474-CA | 0.64 |

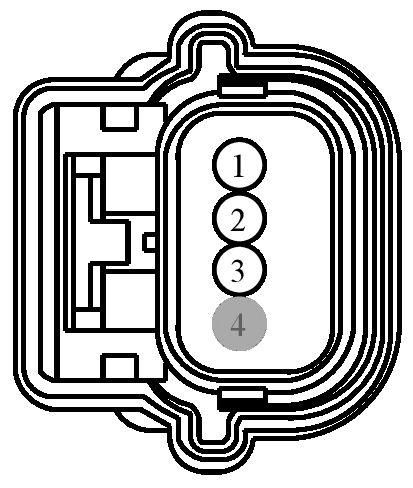

| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | 8U5T-14474-BA | ||||
| 2 | VDN06 (WH-GN) | 22 | CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 [OBSOLETE - REPLACED BY VE181] | DU5T-14474-EAA | ||||
| 3 | CBK03 (GY) | 20 | FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) | 8U5T-14474-BA | ||||
| 4 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1569
Service Part Number:
CU2Z-14S411-AGB
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Antenna - Keyless Entry
- Motor - Active Grill Shutter
- Sensor - Brake Pedal Position
- Sensor - Clutch Master Cylinder
- Sensor - Gear Neutral
Pigtail Kit Part Number WPT-1307
Service Part Number:
CU2Z-14S411-AGA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Antenna - Keyless Entry
- Sensor - Brake Pedal Position
- Sensor - Clutch Master Cylinder
