Power Distribution

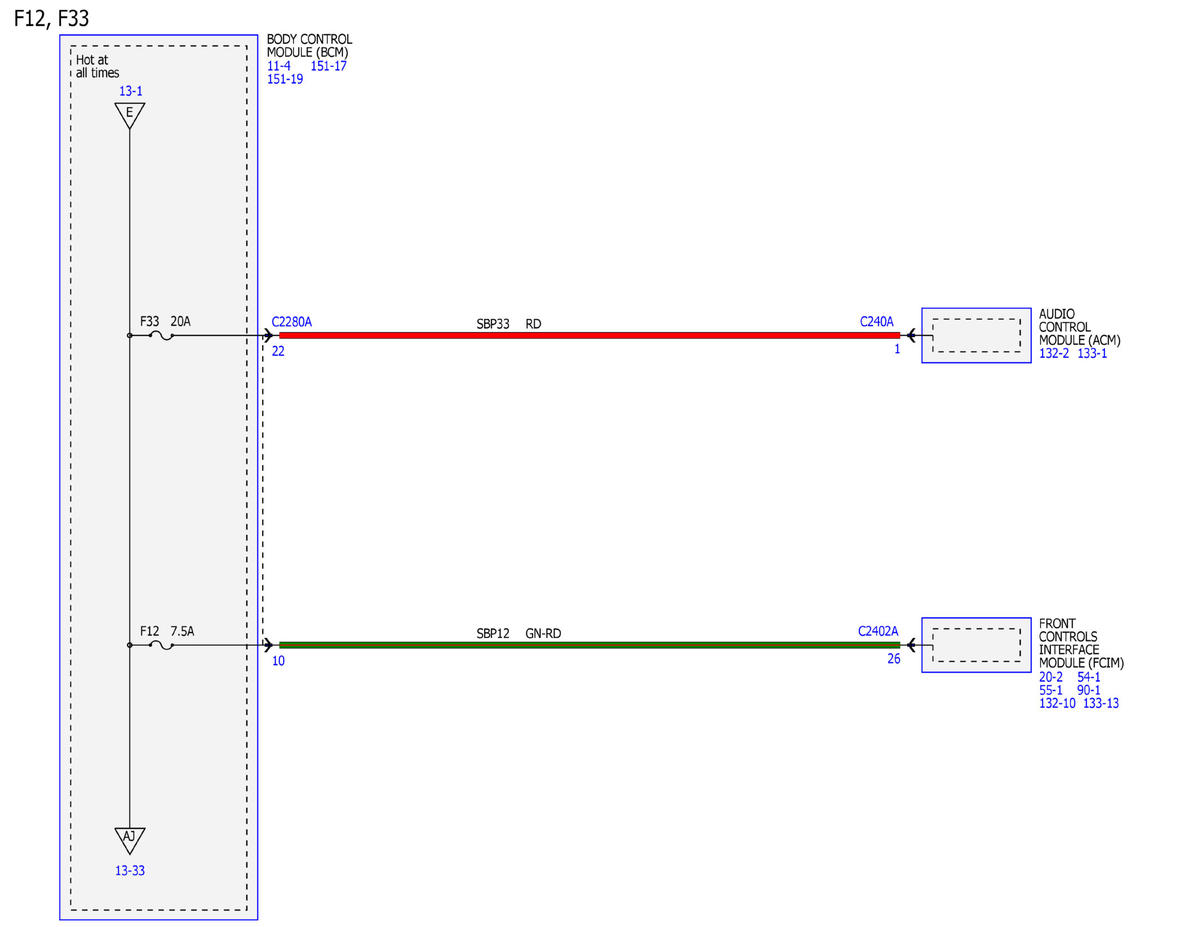

Fig 1: Power Distribution Wiring Diagram (1 of 39)

GFDWR10989

Courtesy of FORD MOTOR COMPANY

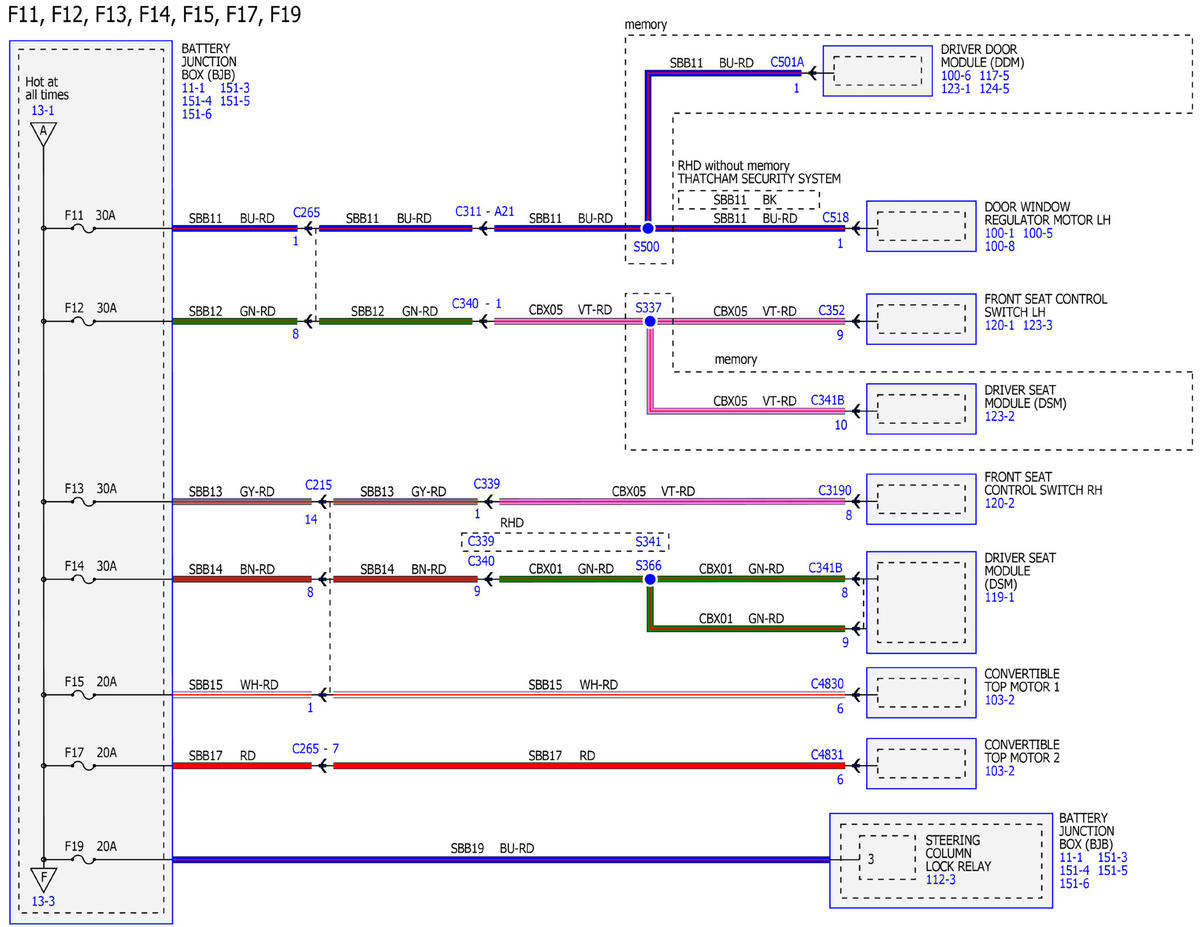

Fig 2: Power Distribution Wiring Diagram (2 of 39)

GFDWR10990

Courtesy of FORD MOTOR COMPANY

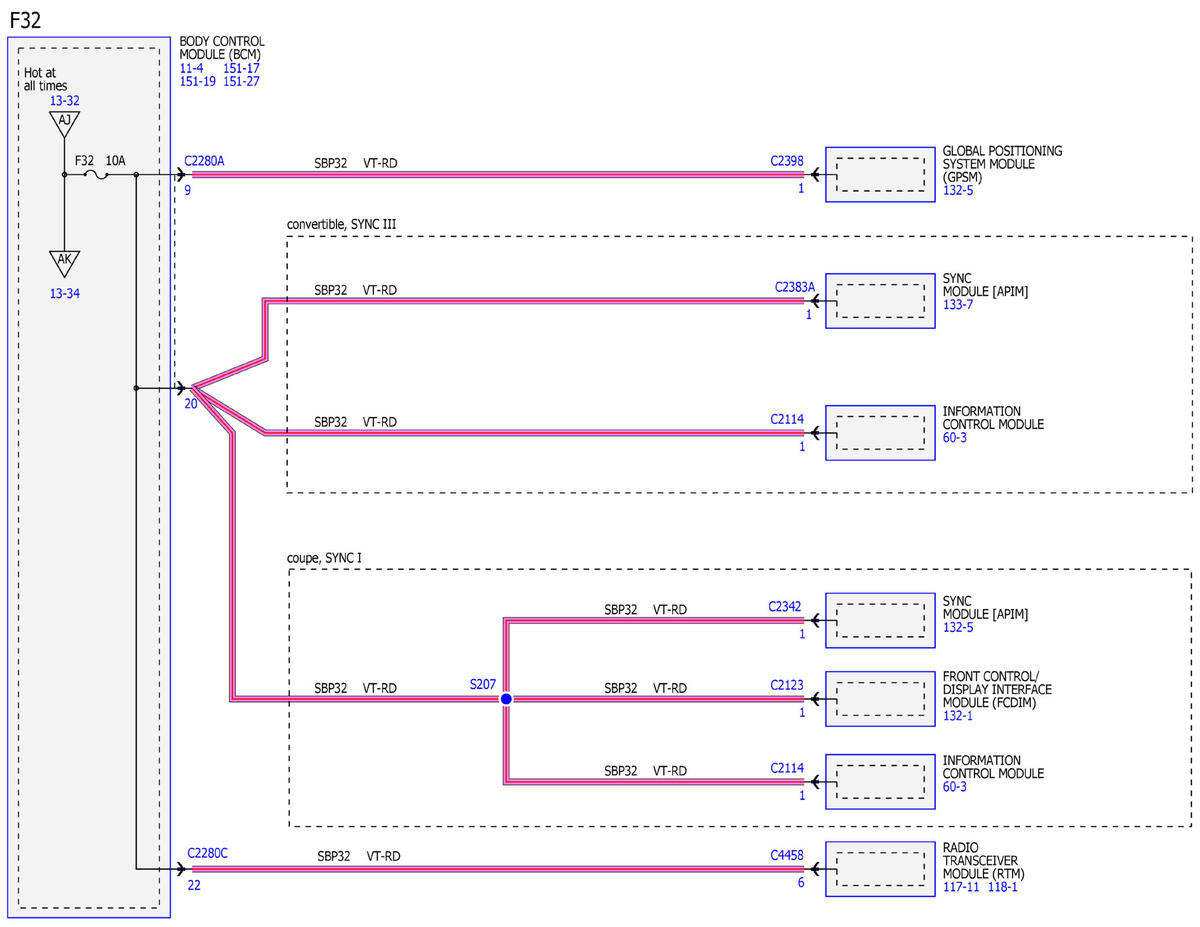

Fig 3: Power Distribution Wiring Diagram (3 of 39)

GFDWR10991

Courtesy of FORD MOTOR COMPANY

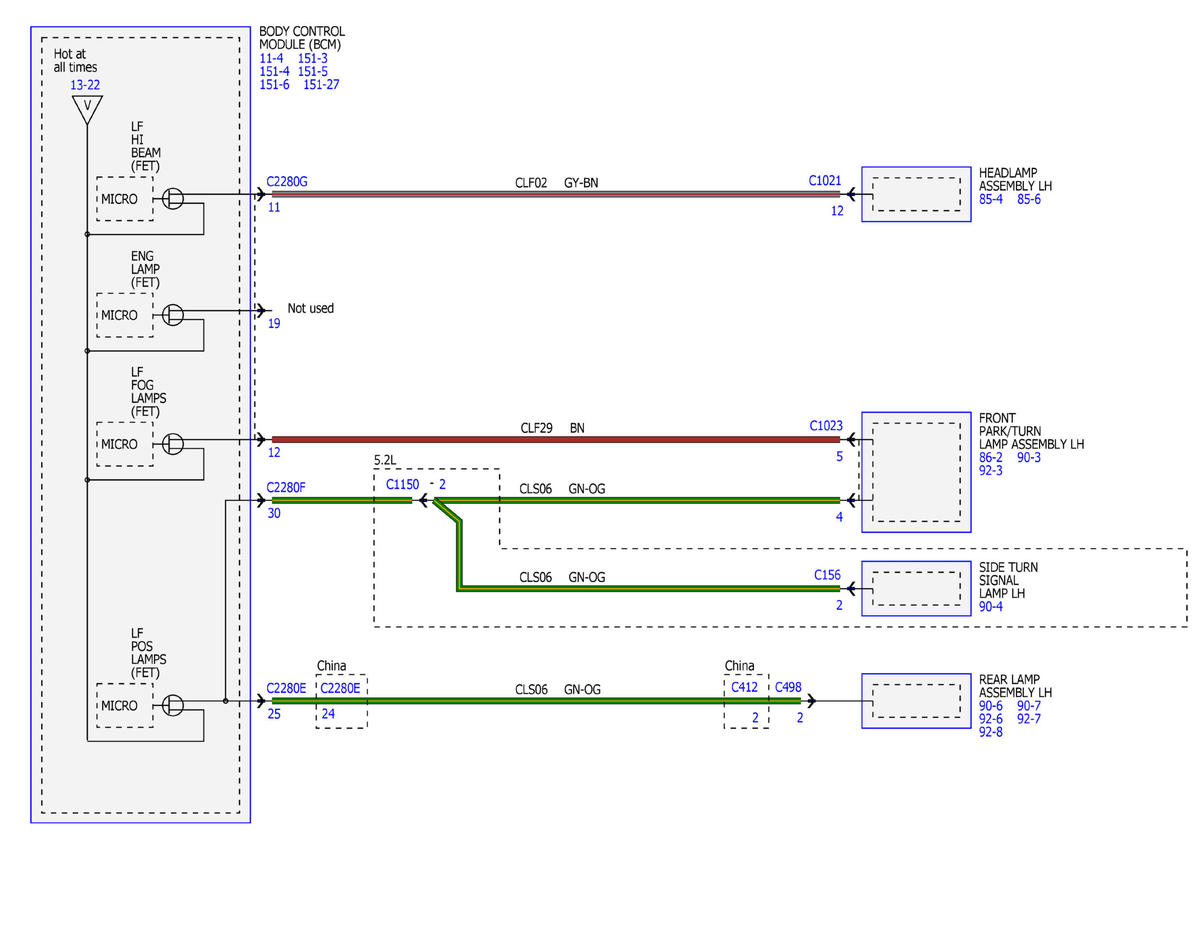

Fig 4: Power Distribution Wiring Diagram (4 of 39)

GFDWR10992

Courtesy of FORD MOTOR COMPANY

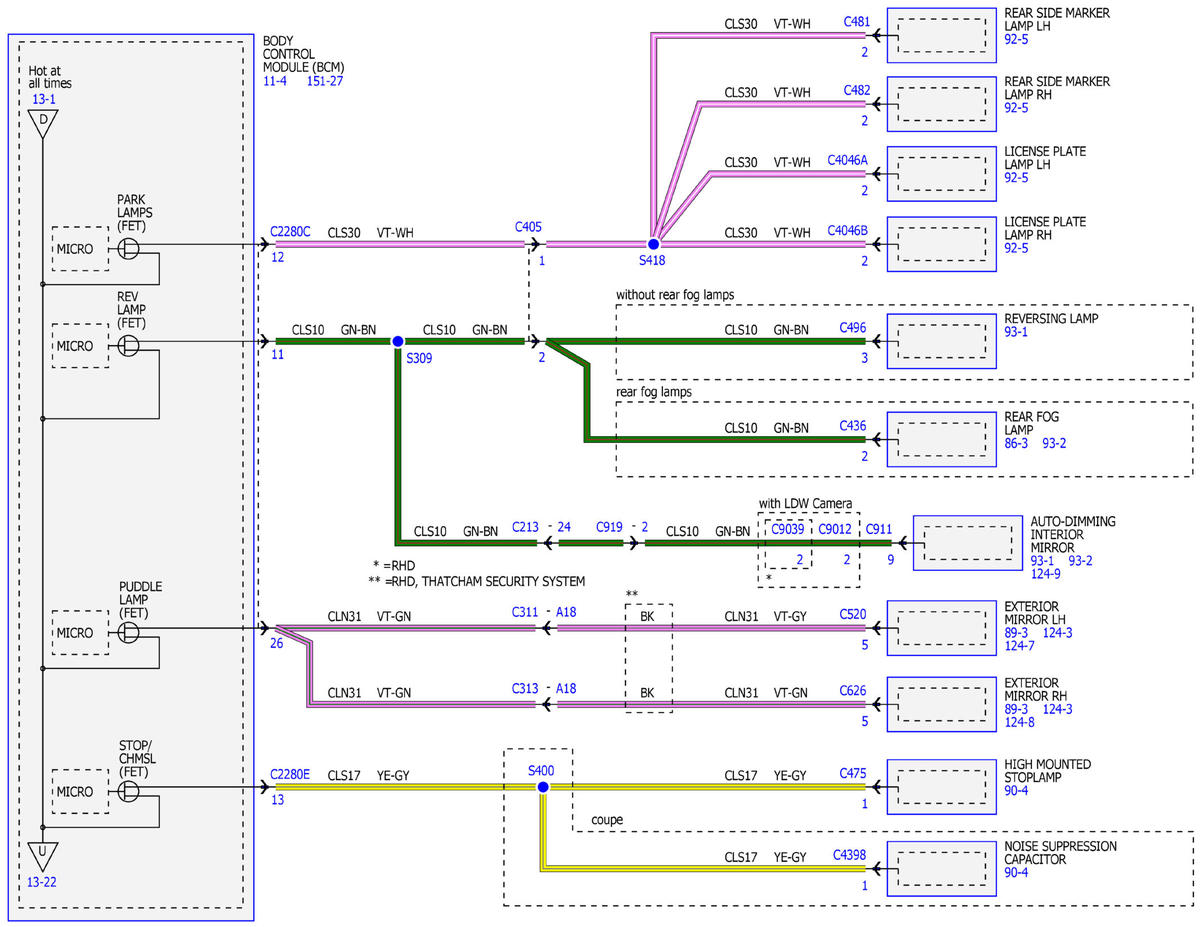

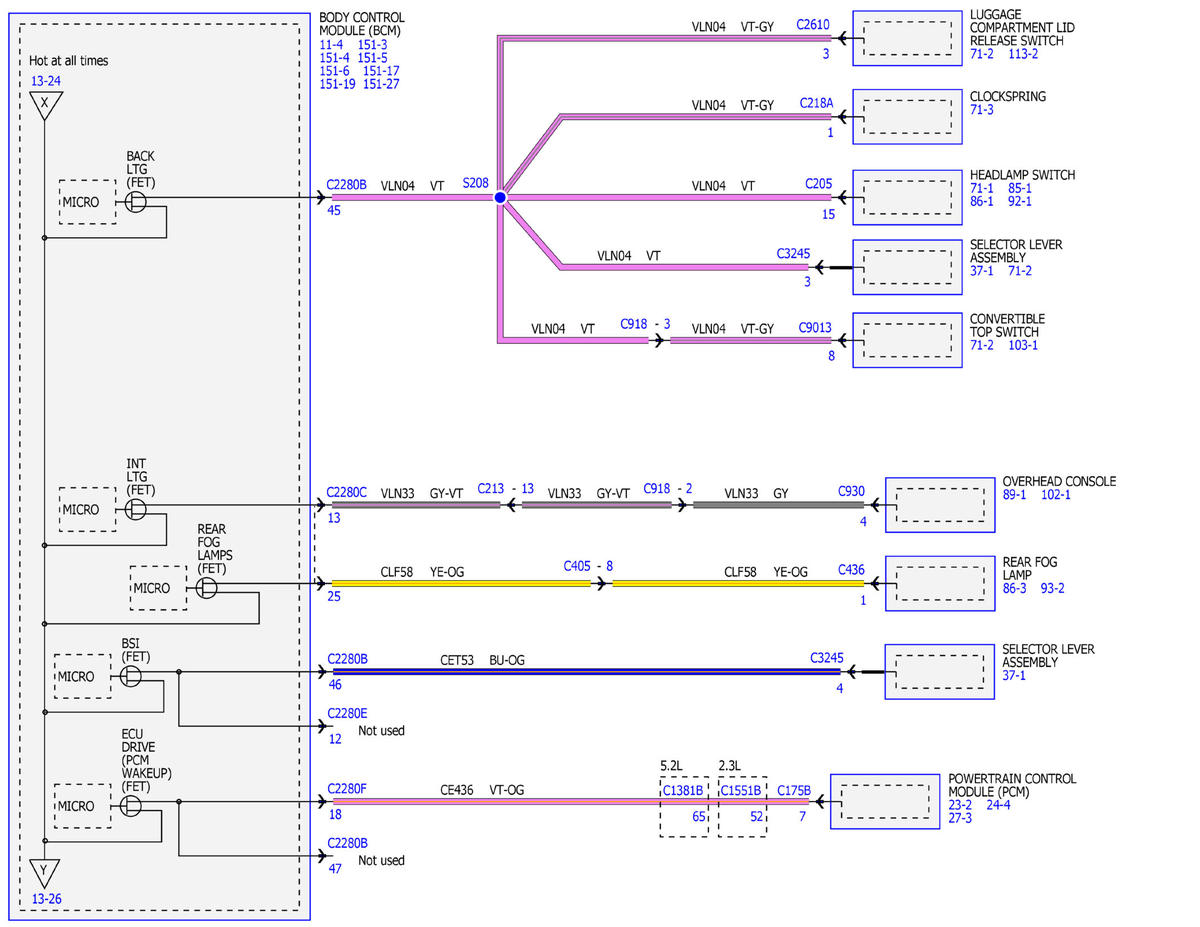

Fig 5: Power Distribution Wiring Diagram (5 of 39)

GFDWR10993

Courtesy of FORD MOTOR COMPANY

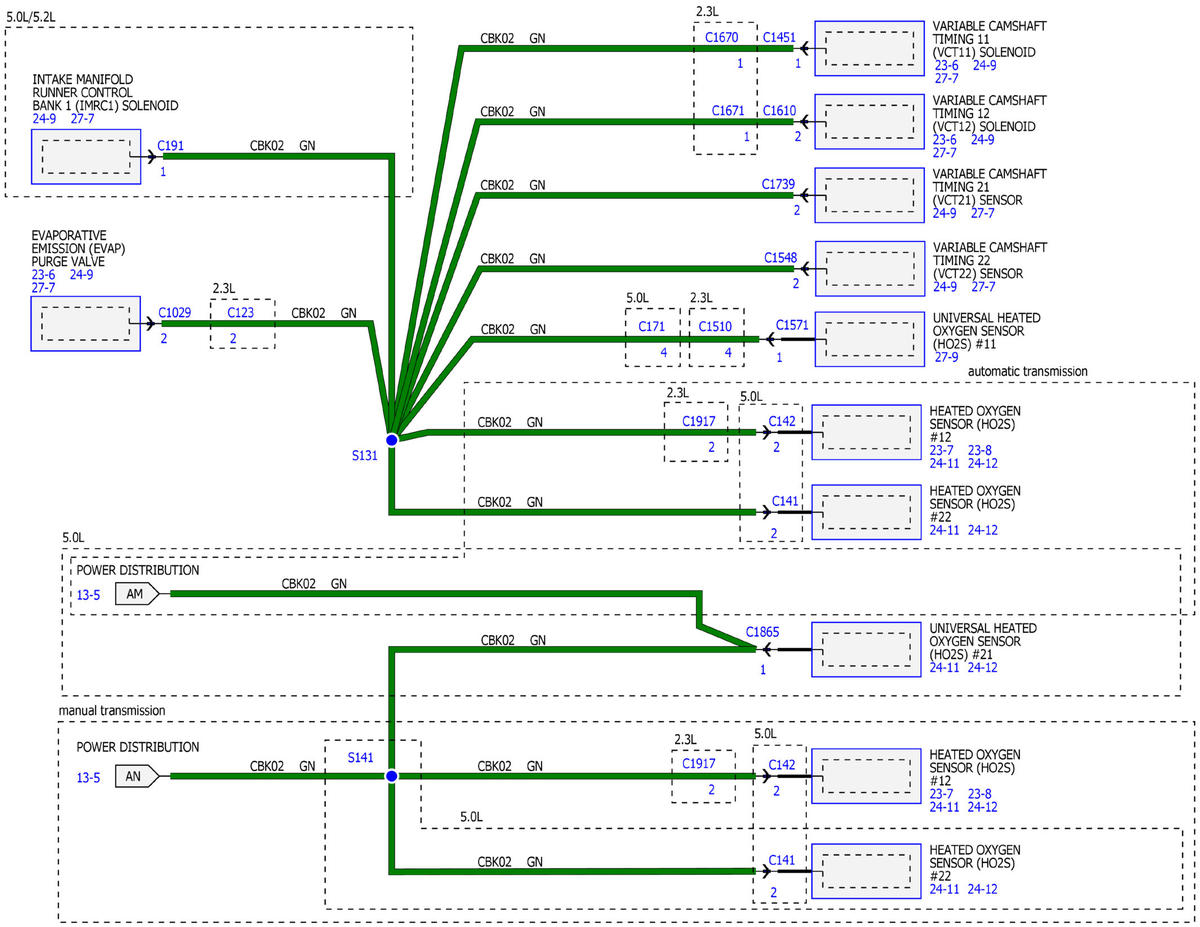

Fig 6: Power Distribution Wiring Diagram (6 of 39)

GFDWR10994

Courtesy of FORD MOTOR COMPANY

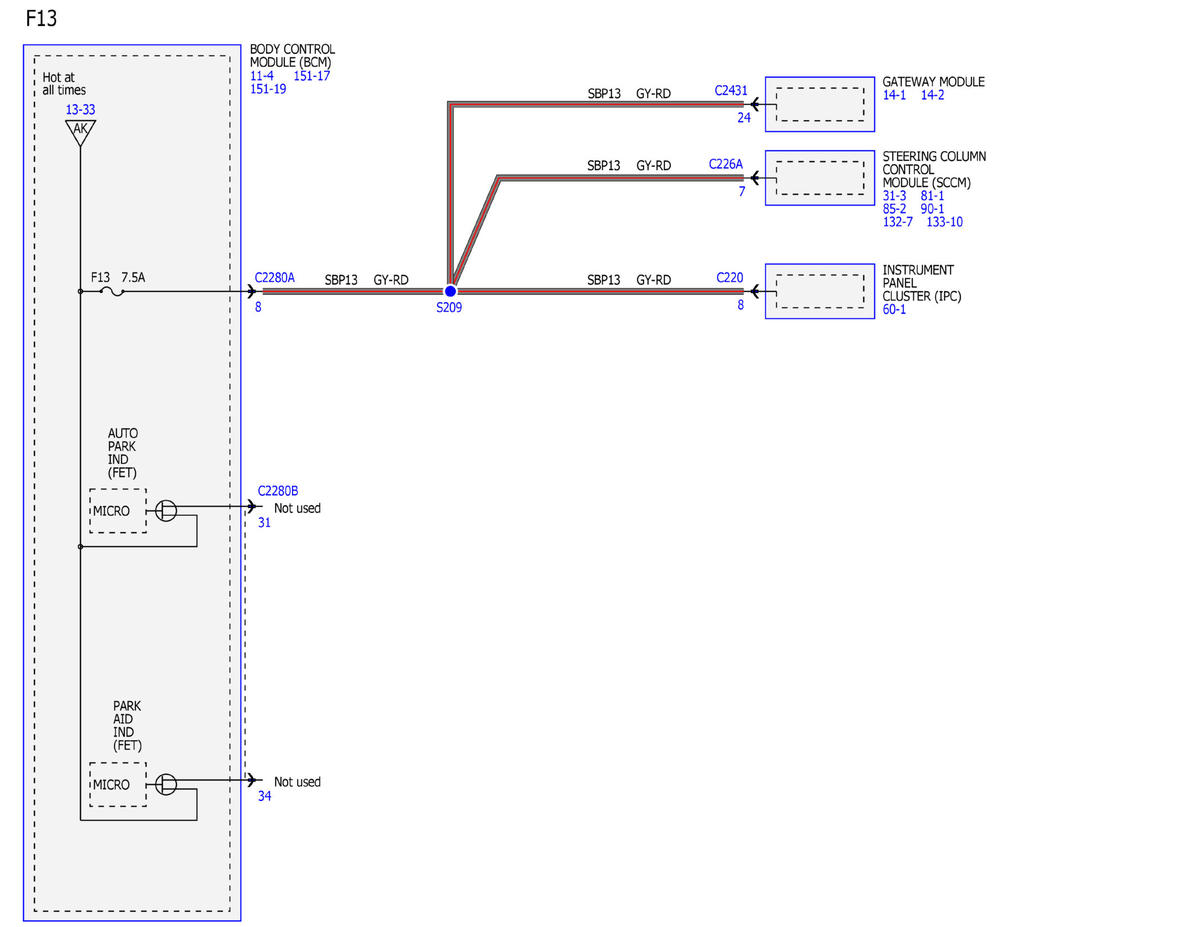

Fig 7: Power Distribution Wiring Diagram (7 of 39)

GFDWR10995

Courtesy of FORD MOTOR COMPANY

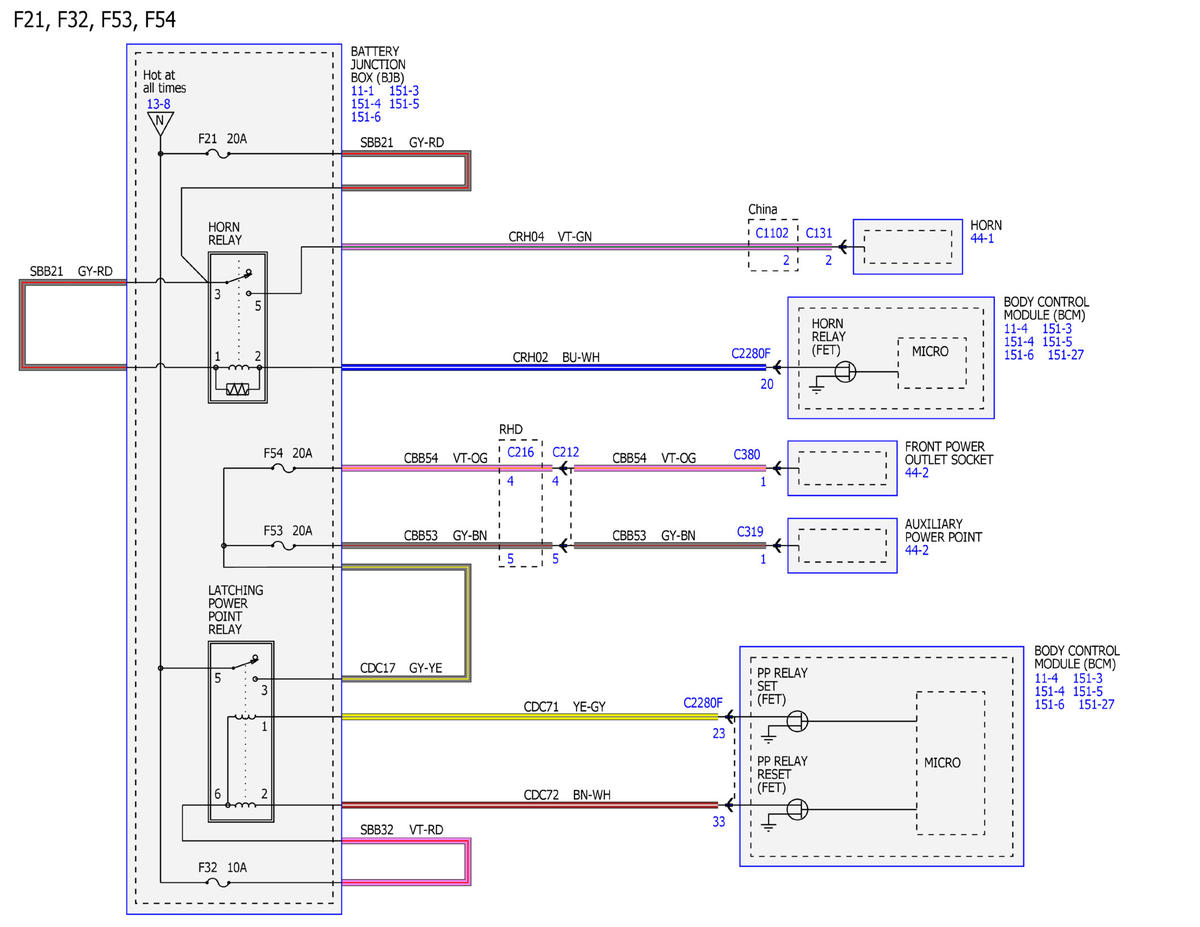

Fig 8: Power Distribution Wiring Diagram (8 of 39)

GFDWR10996

Courtesy of FORD MOTOR COMPANY

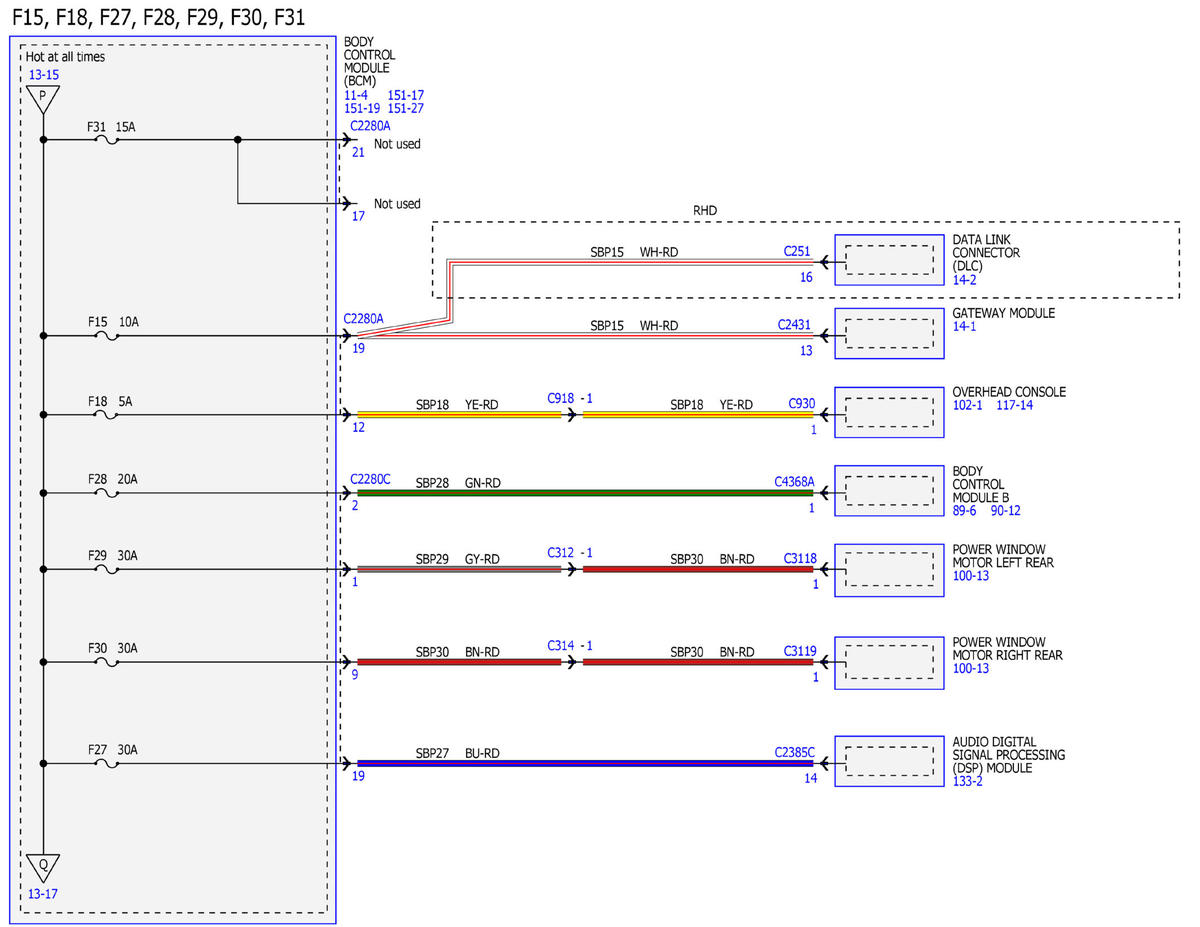

Fig 9: Power Distribution Wiring Diagram (9 of 39)

GFDWR10997

Courtesy of FORD MOTOR COMPANY

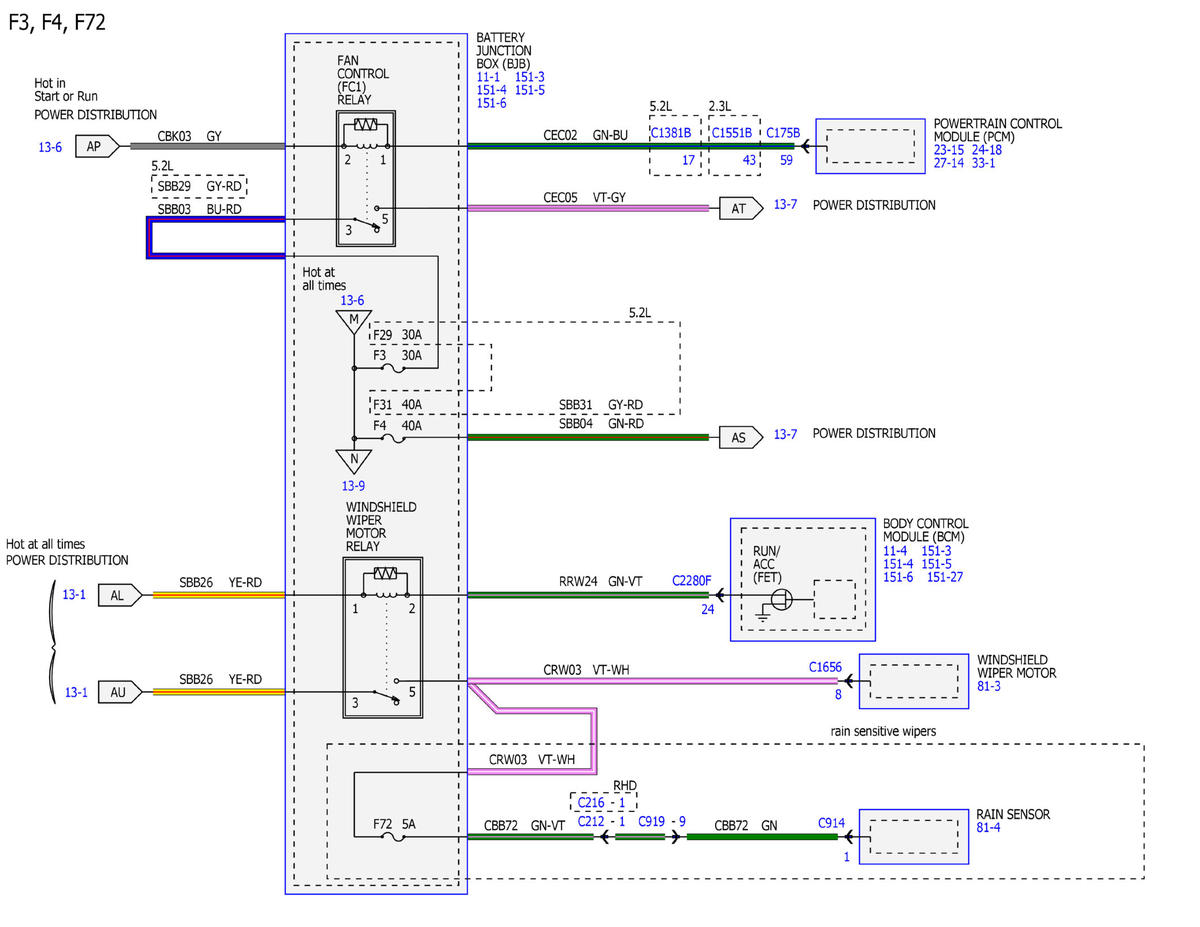

Fig 10: Power Distribution Wiring Diagram (10 of 39)

GFDWR10998

Courtesy of FORD MOTOR COMPANY

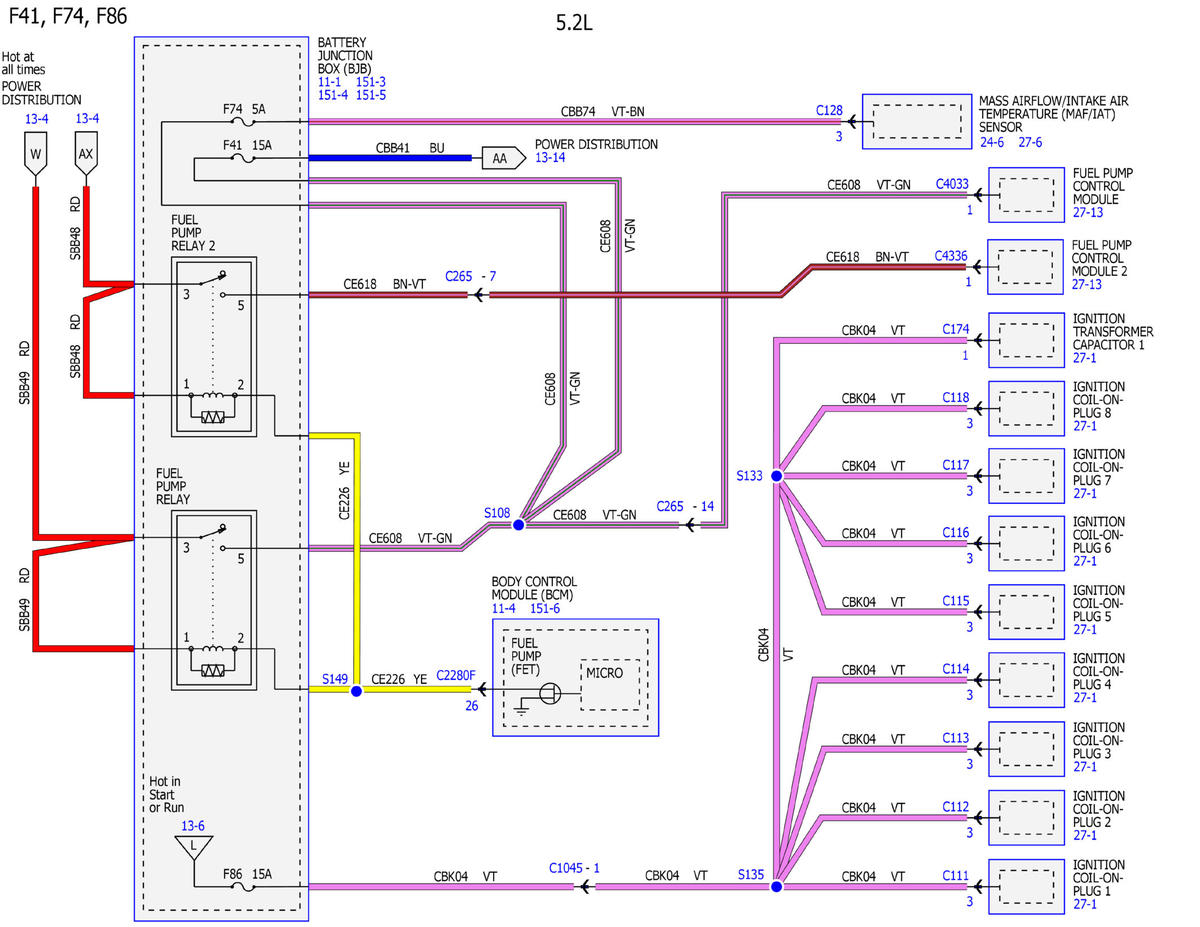

Fig 11: Power Distribution Wiring Diagram (11 of 39)

GFDWR10999

Courtesy of FORD MOTOR COMPANY

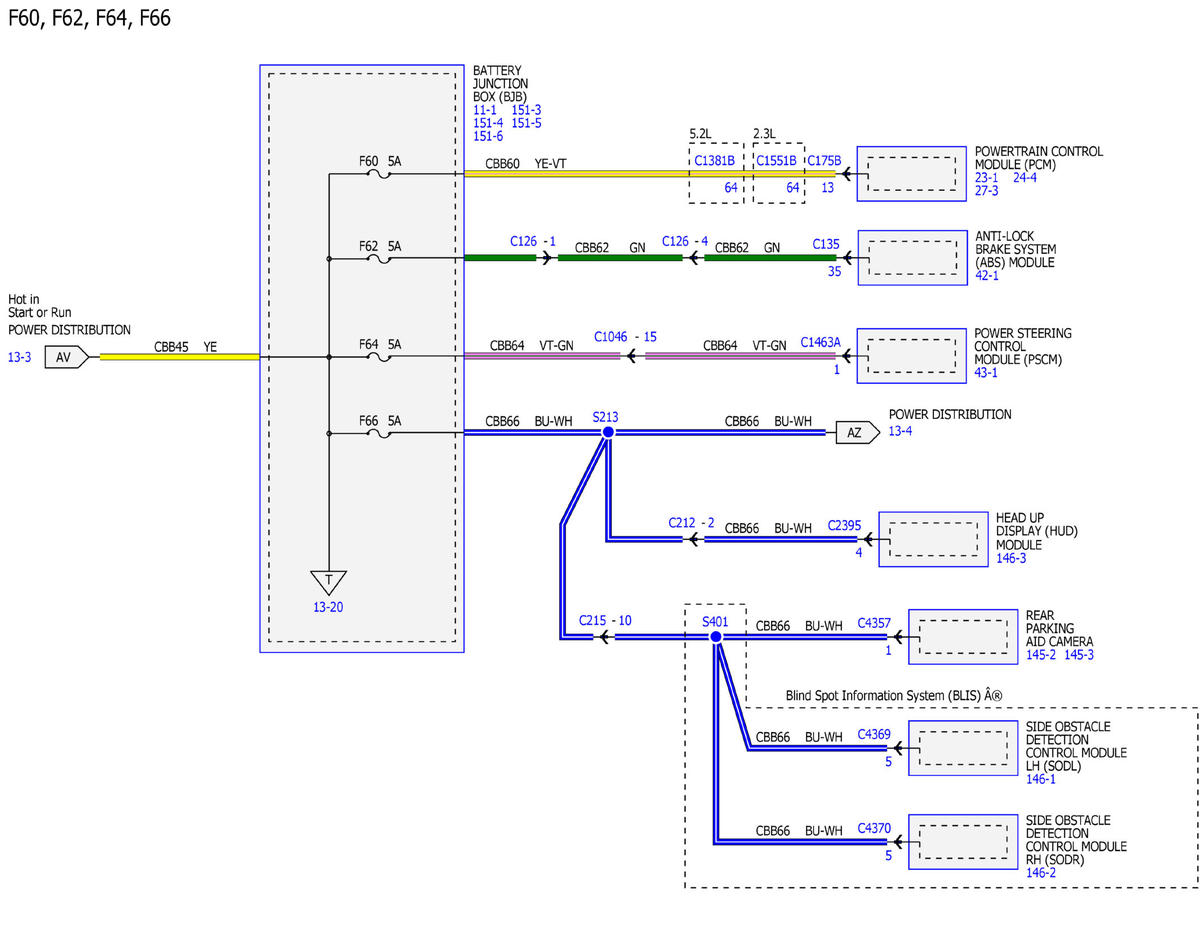

Fig 12: Power Distribution Wiring Diagram (12 of 39)

GFDWR11000

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Distribution Wiring Diagram (13 of 39)

GFDWR11001

Courtesy of FORD MOTOR COMPANY

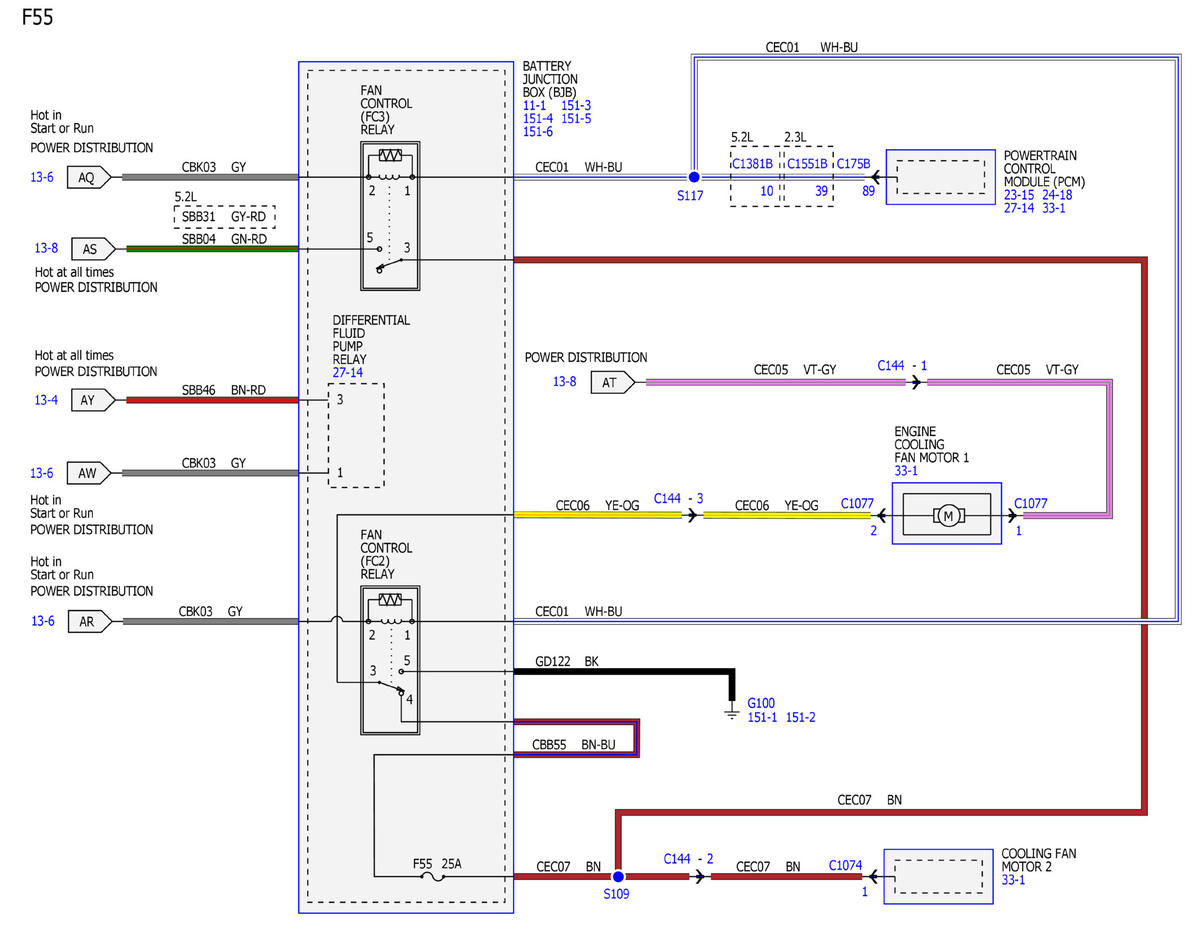

Fig 14: Power Distribution Wiring Diagram (14 of 39)

GFDWR11002

Courtesy of FORD MOTOR COMPANY

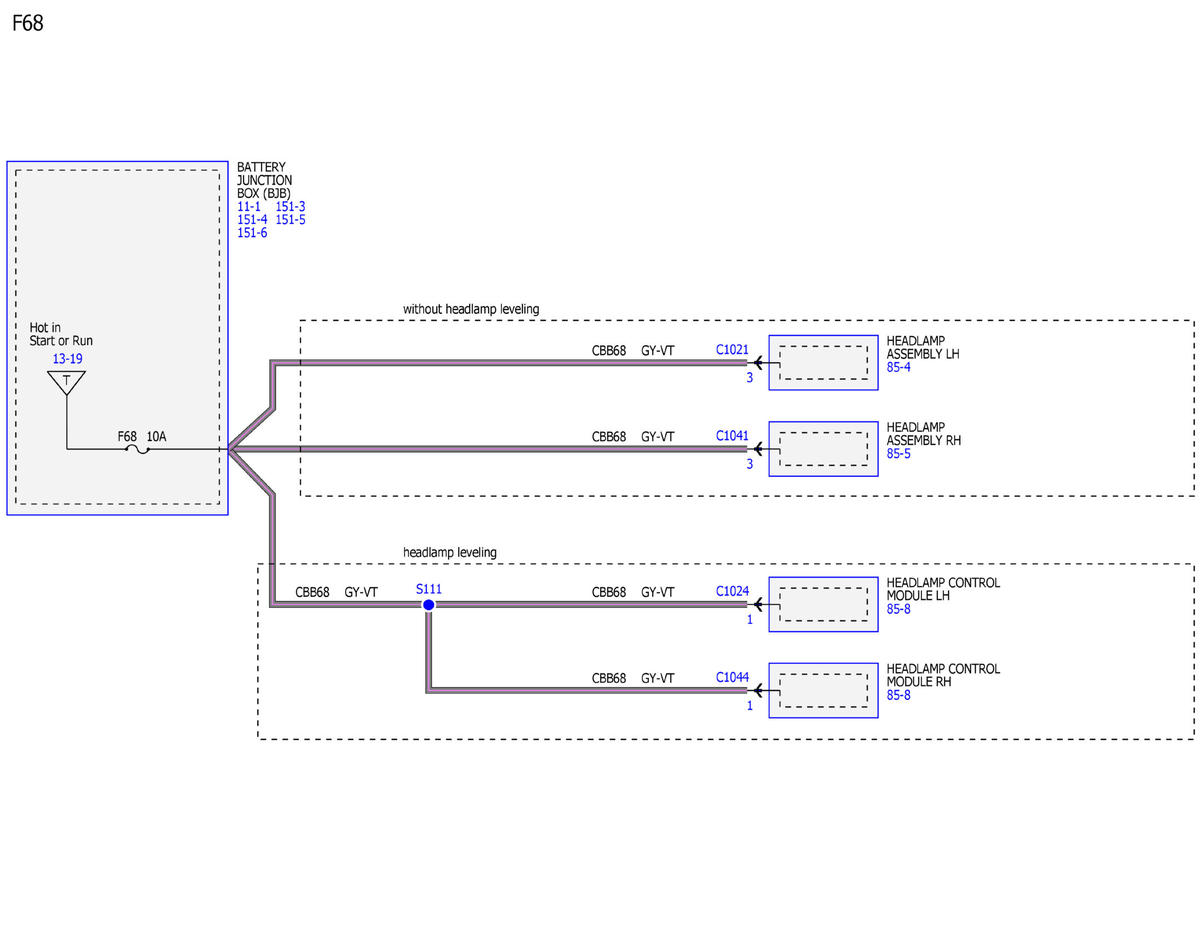

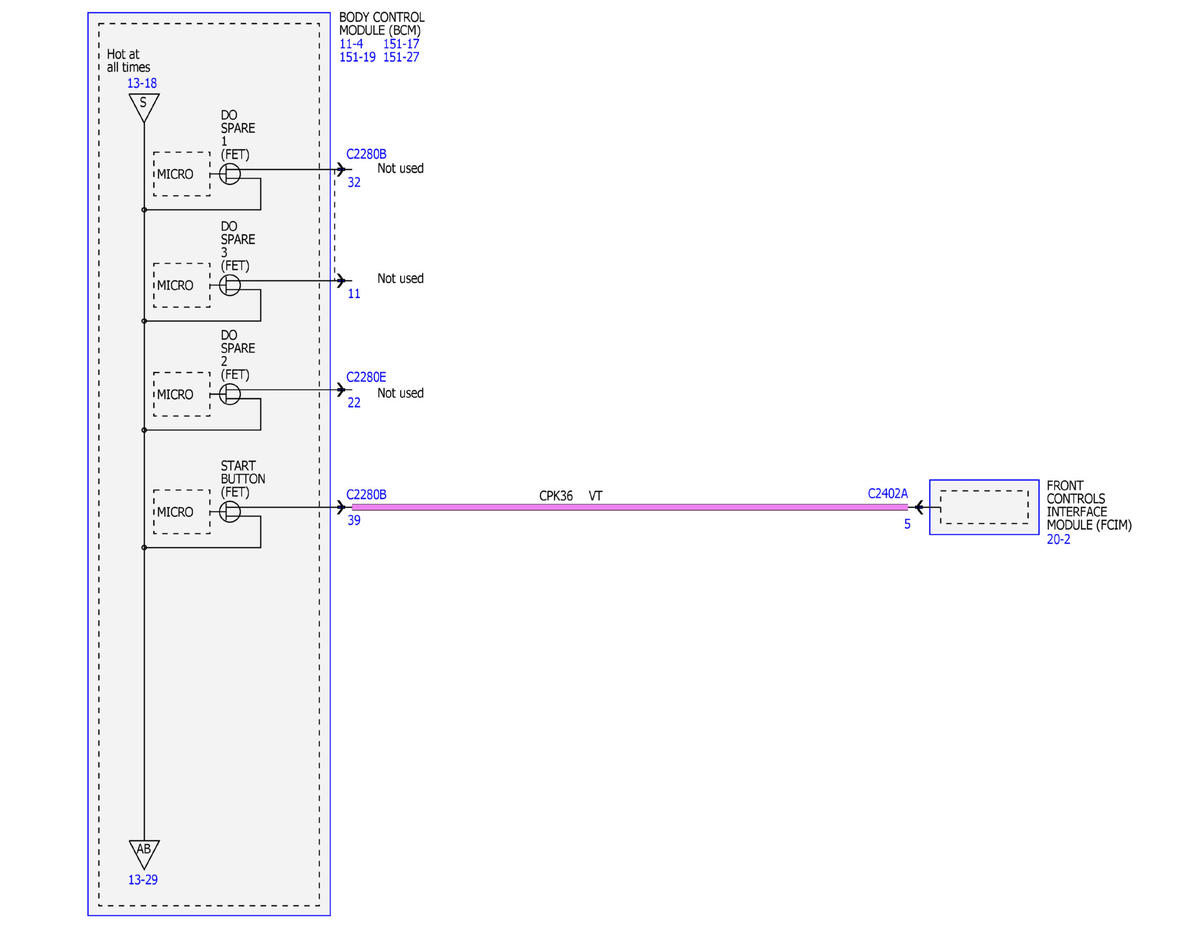

Fig 15: Power Distribution Wiring Diagram (15 of 39)

GFDWR11003

Courtesy of FORD MOTOR COMPANY

Fig 16: Power Distribution Wiring Diagram (16 of 39)

GFDWR11004

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution Wiring Diagram (17 of 39)

GFDWR11005

Courtesy of FORD MOTOR COMPANY

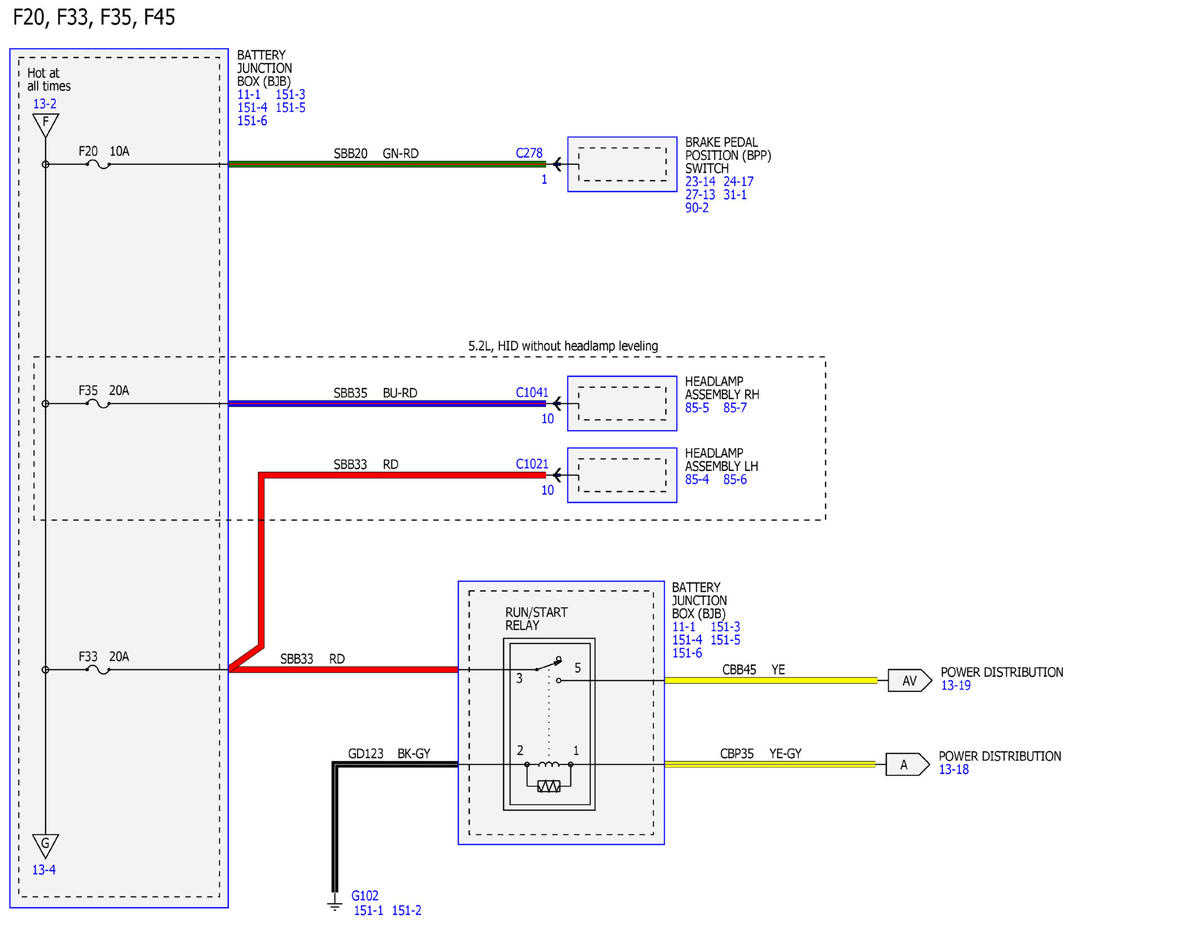

Fig 18: Power Distribution Wiring Diagram (18 of 39)

GFDWR11006

Courtesy of FORD MOTOR COMPANY

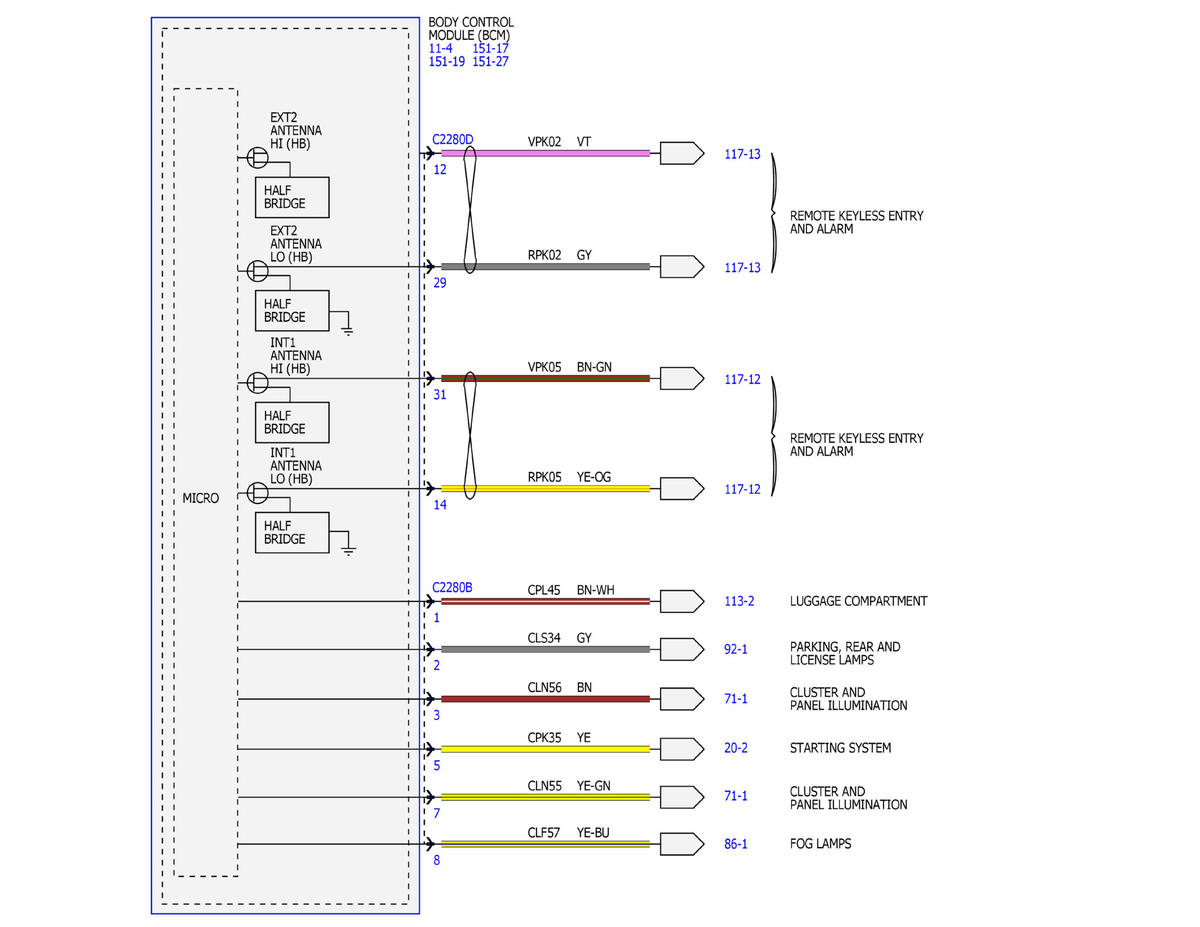

Fig 19: Power Distribution Wiring Diagram (19 of 39)

GFDWR11007

Courtesy of FORD MOTOR COMPANY

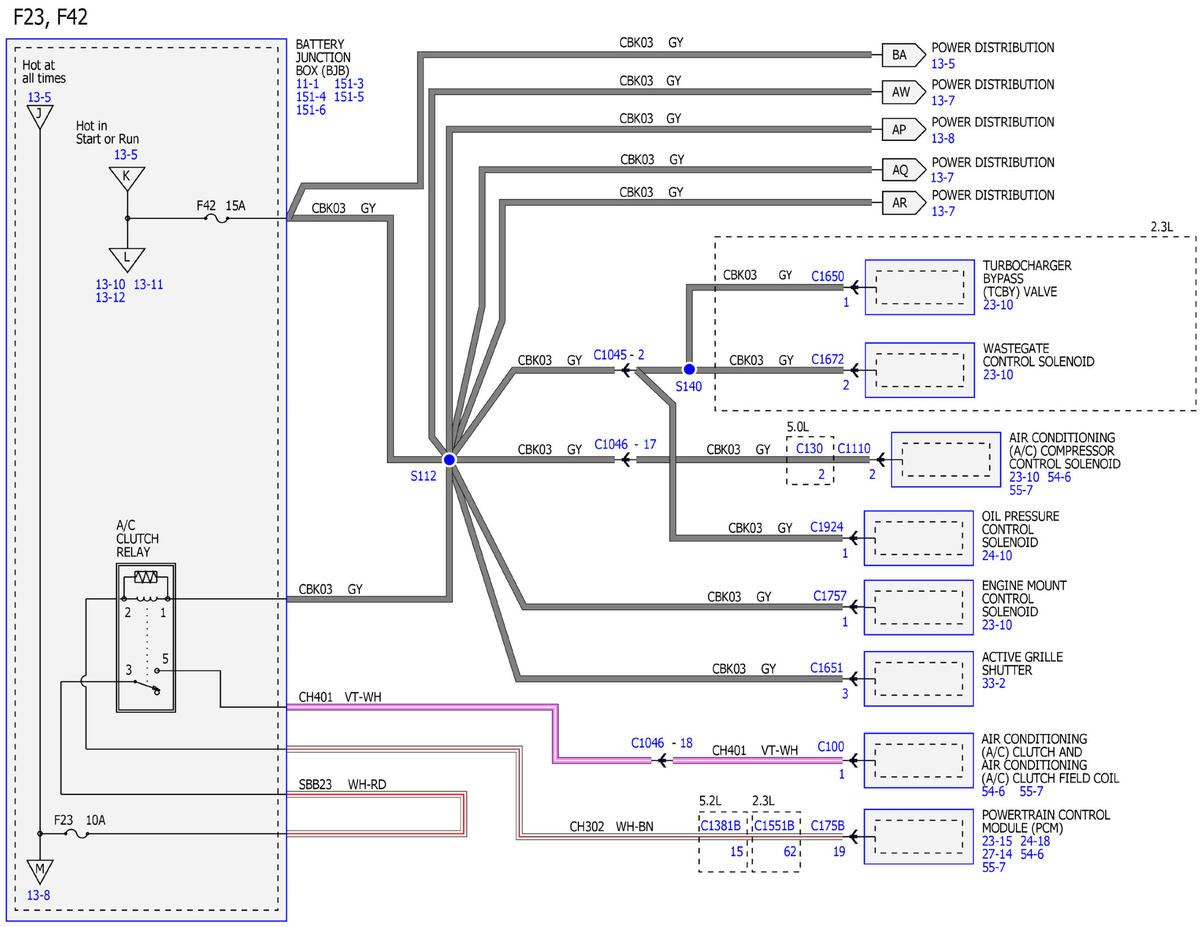

Fig 20: Power Distribution Wiring Diagram (20 of 39)

GFDWR11008

Courtesy of FORD MOTOR COMPANY

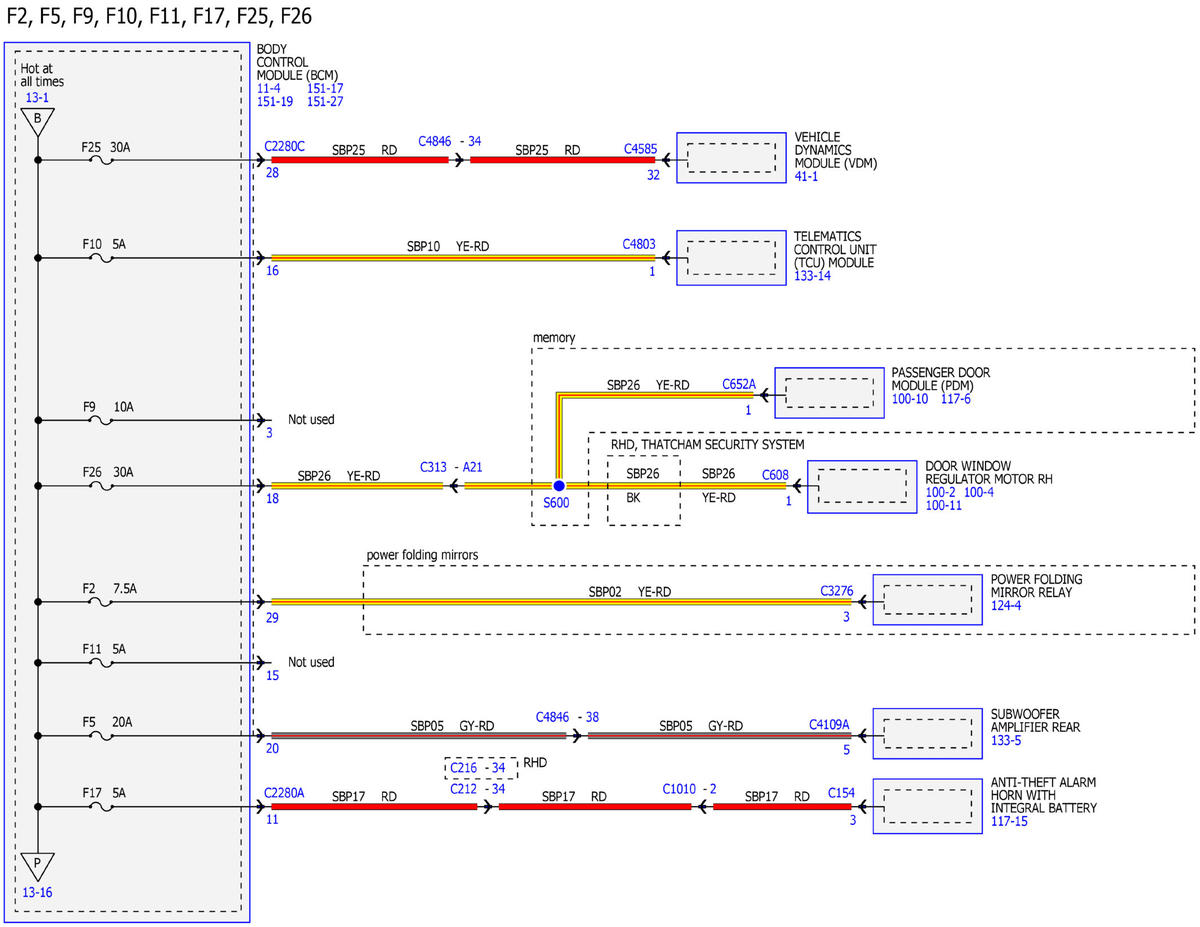

Fig 21: Power Distribution Wiring Diagram (21 of 39)

GFDWR11009

Courtesy of FORD MOTOR COMPANY

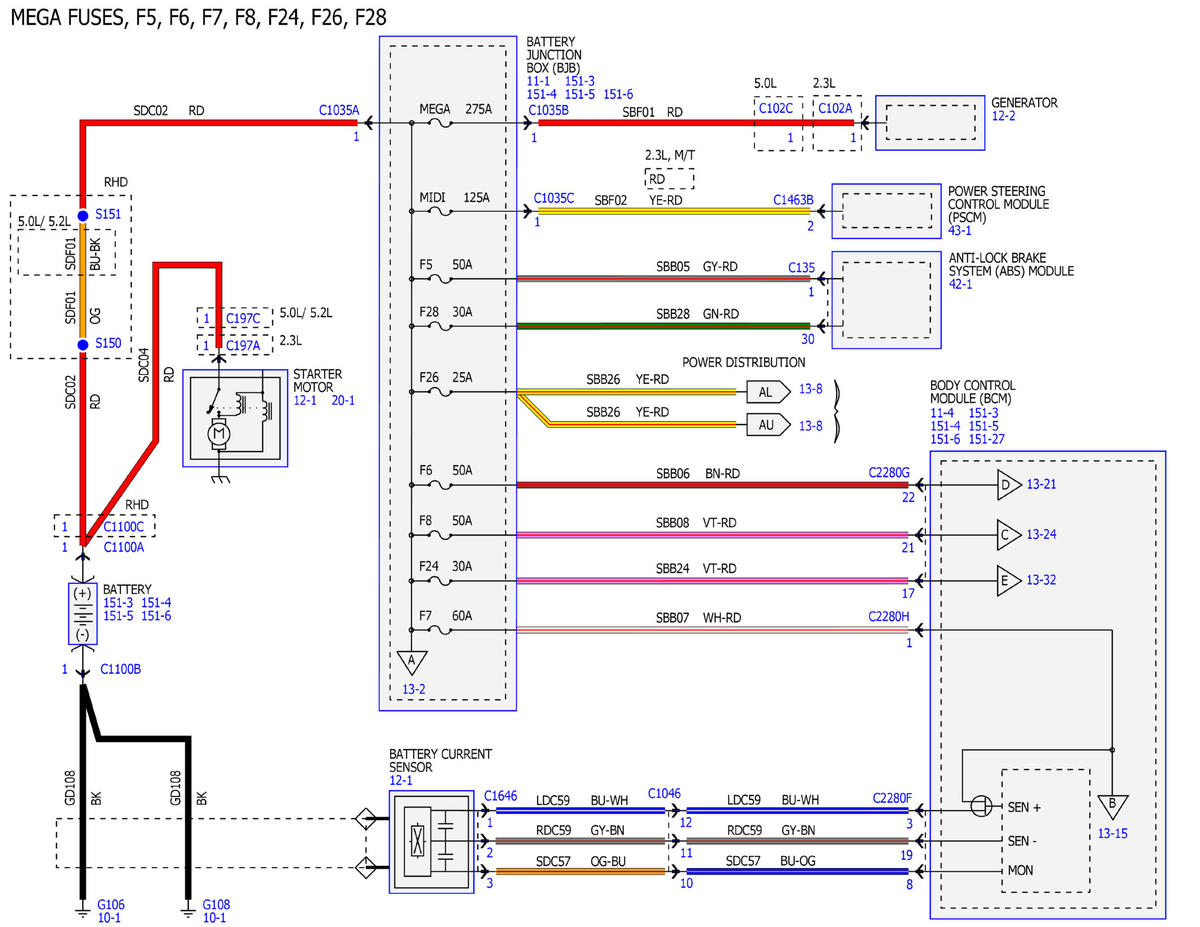

Fig 22: Power Distribution Wiring Diagram (22 of 39)

GFDWR11010

Courtesy of FORD MOTOR COMPANY

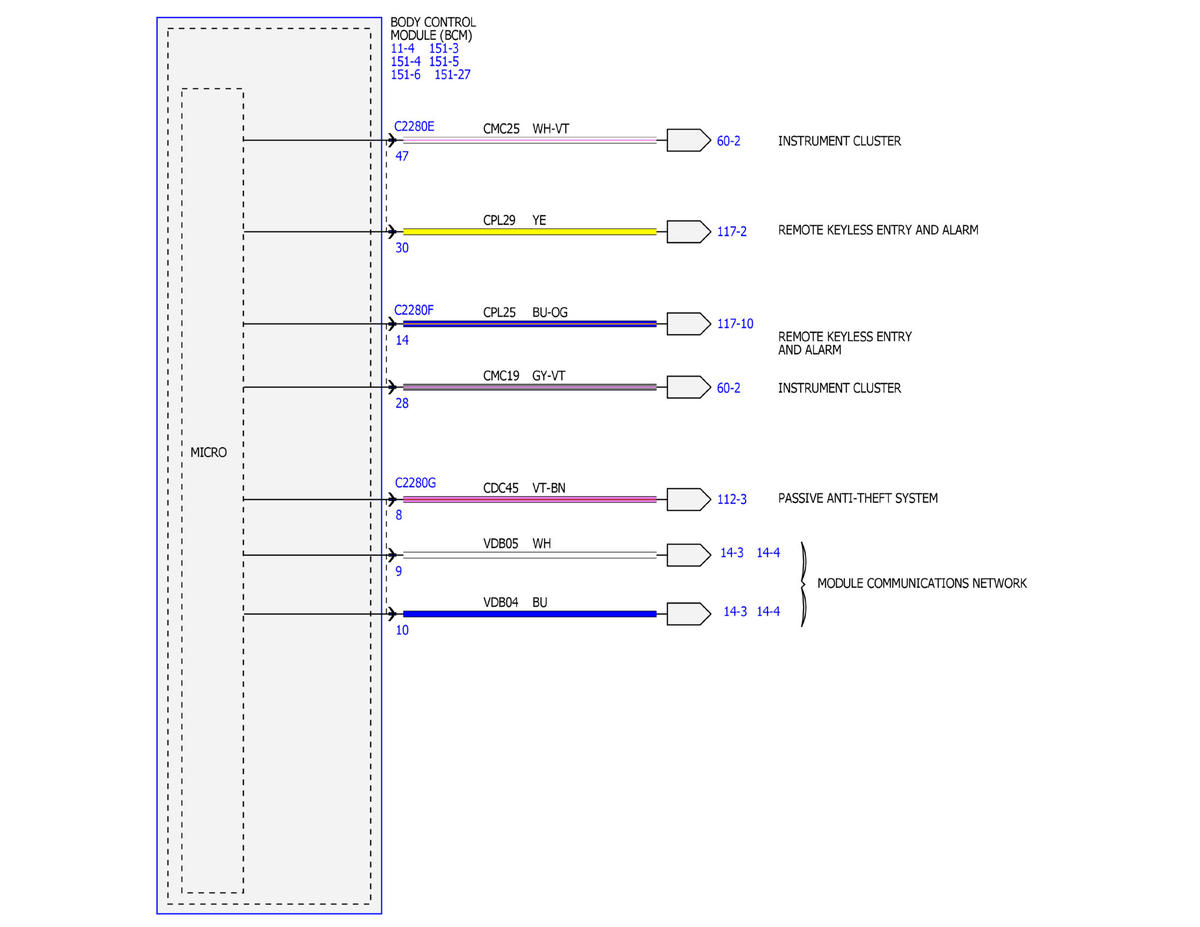

Fig 23: Power Distribution Wiring Diagram (23 of 39)

GFDWR11011

Courtesy of FORD MOTOR COMPANY

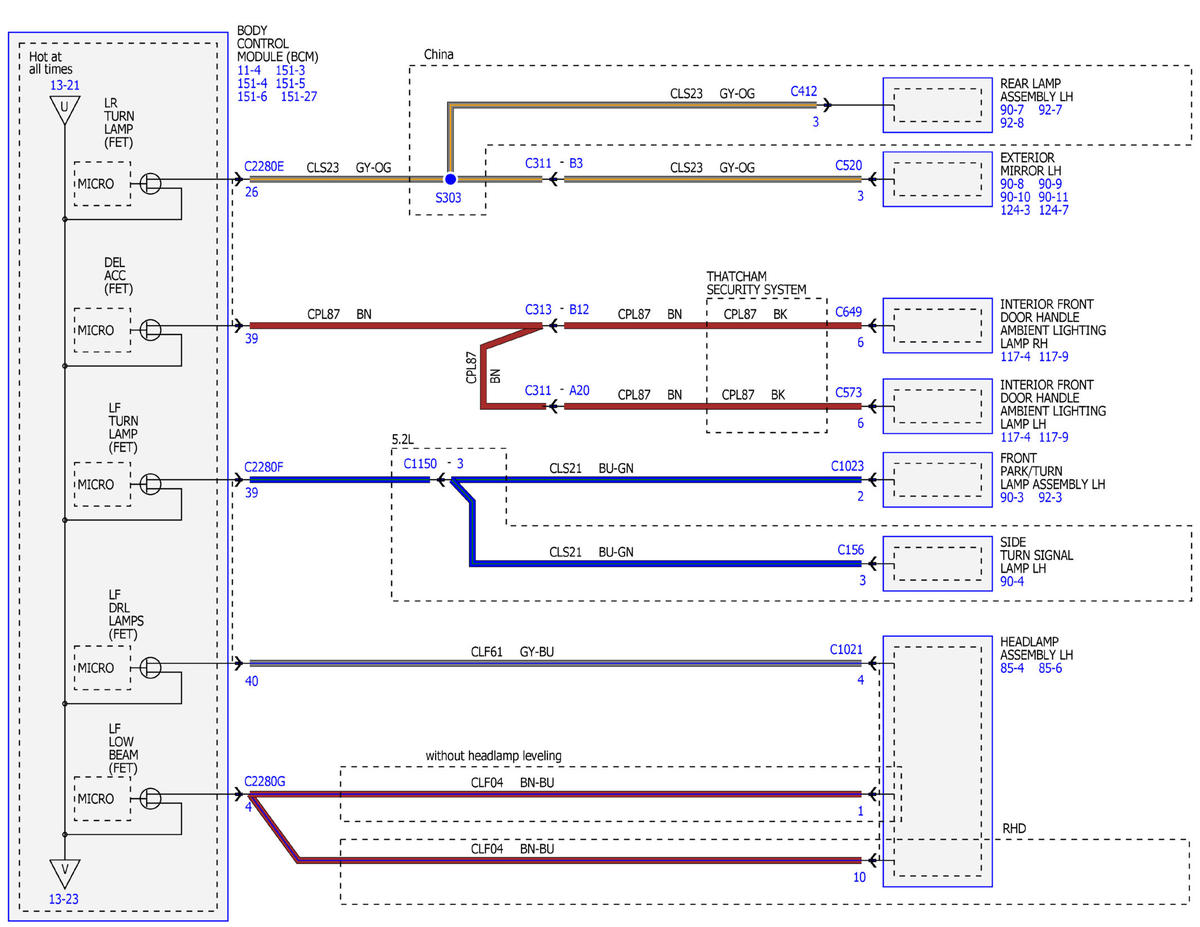

Fig 24: Power Distribution Wiring Diagram (24 of 39)

GFDWR11012

Courtesy of FORD MOTOR COMPANY

Fig 25: Power Distribution Wiring Diagram (25 of 39)

GFDWR11013

Courtesy of FORD MOTOR COMPANY

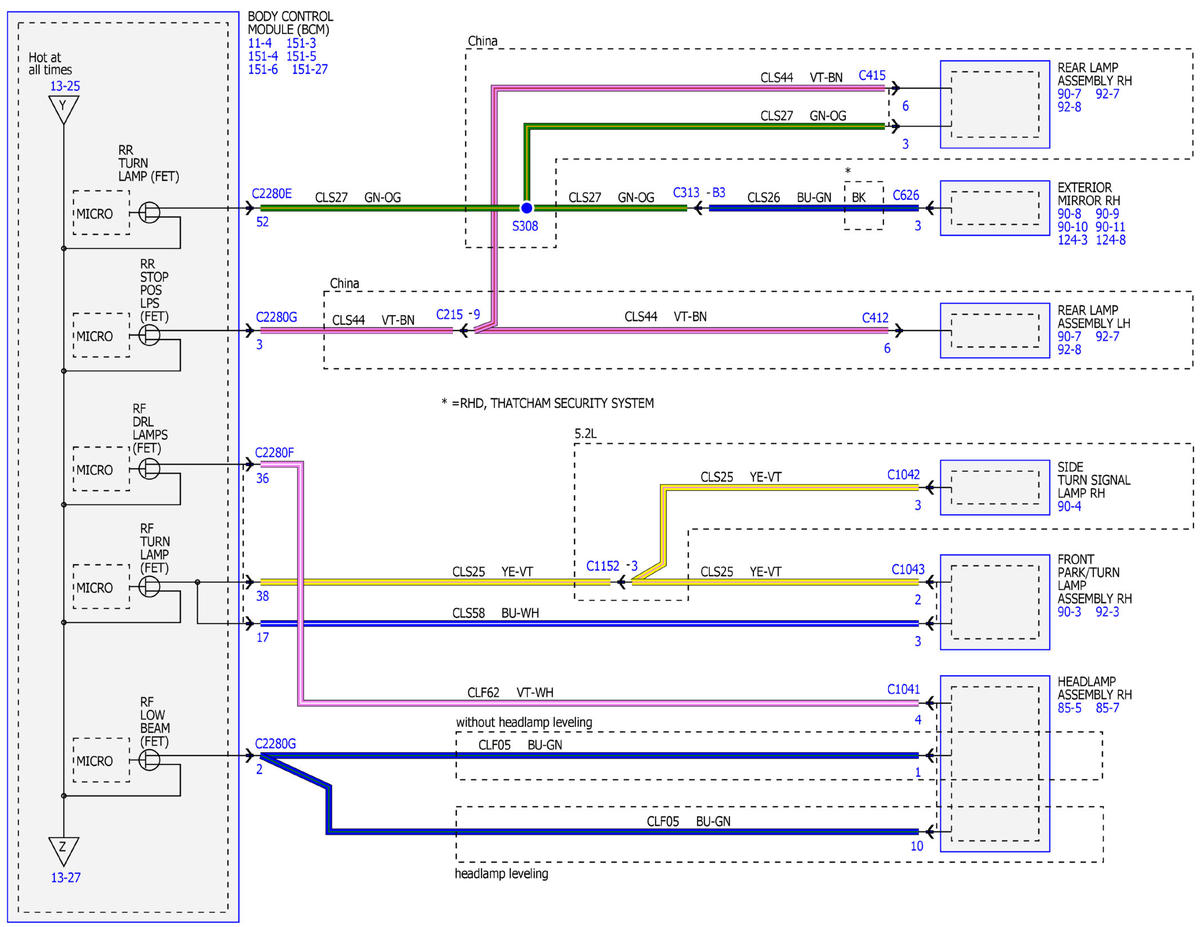

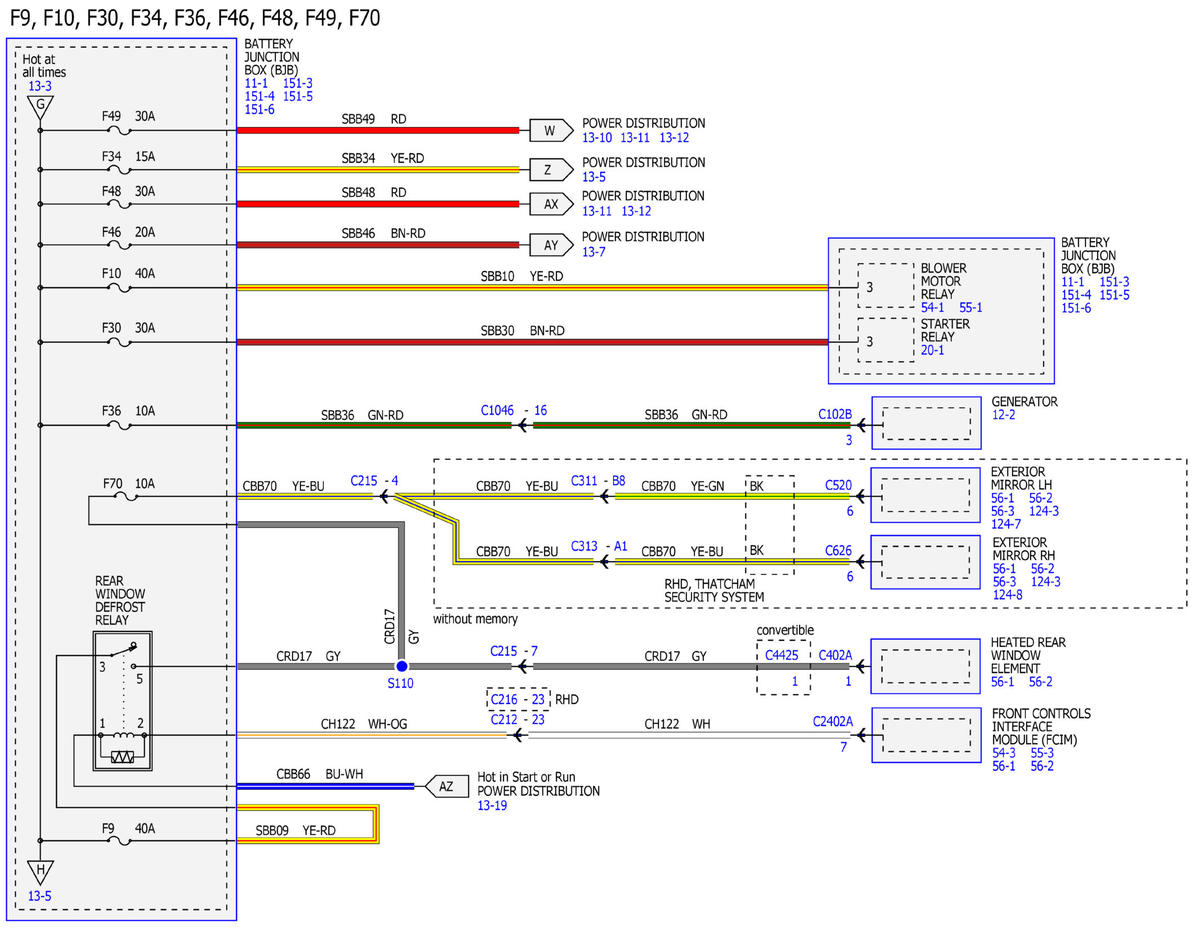

Fig 26: Power Distribution Wiring Diagram (26 of 39)

GFDWR11014

Courtesy of FORD MOTOR COMPANY

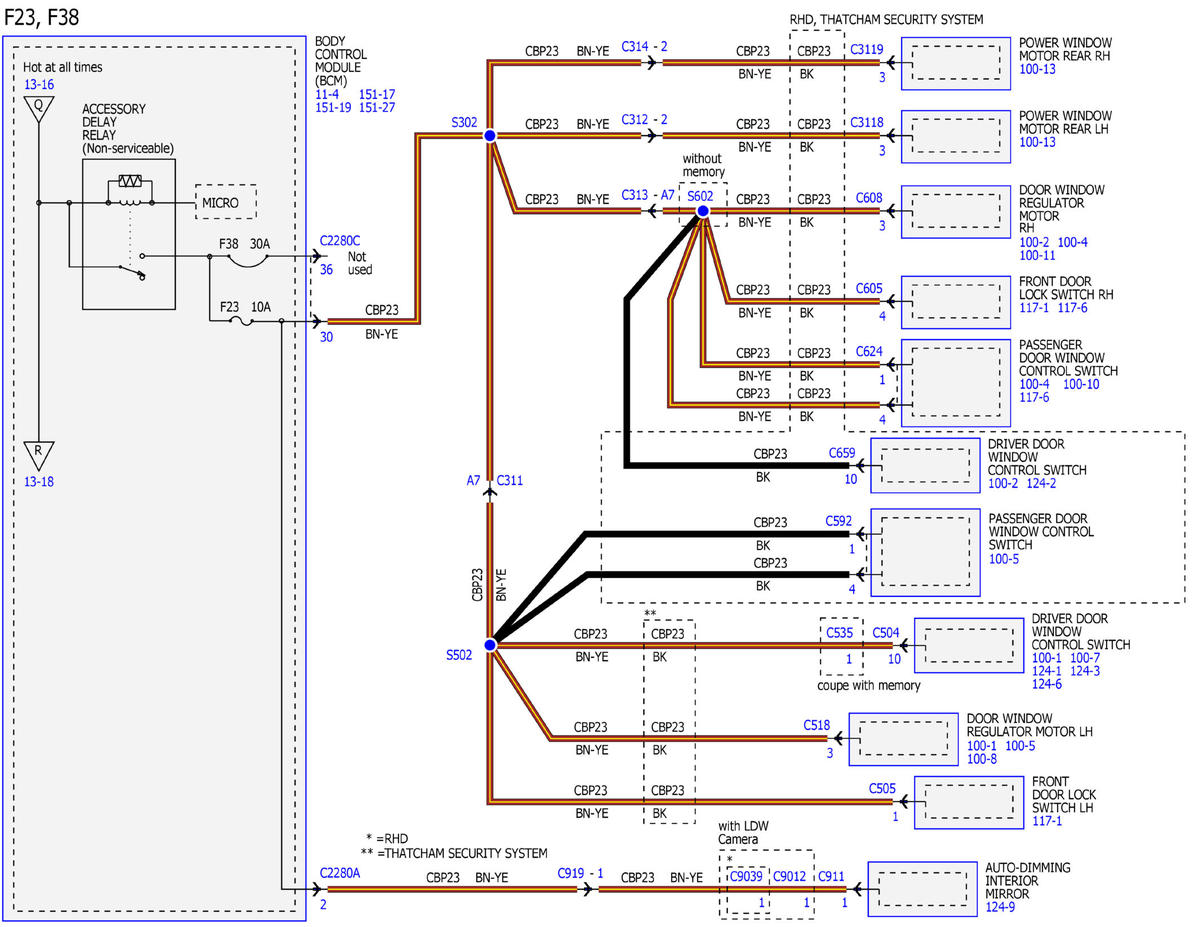

Fig 27: Power Distribution Wiring Diagram (27 of 39)

GFDWR11015

Courtesy of FORD MOTOR COMPANY

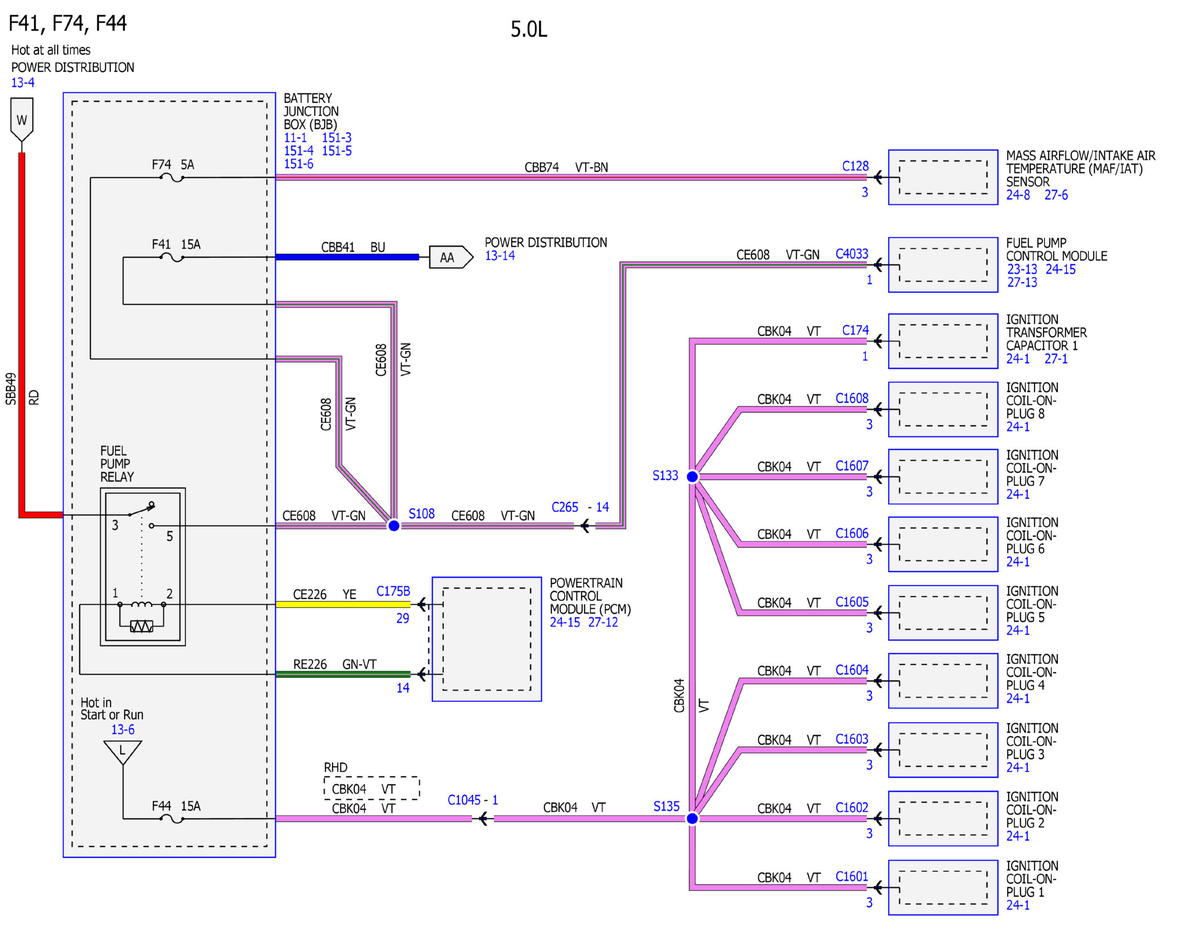

Fig 28: Power Distribution Wiring Diagram (28 of 39)

GFDWR11016

Courtesy of FORD MOTOR COMPANY

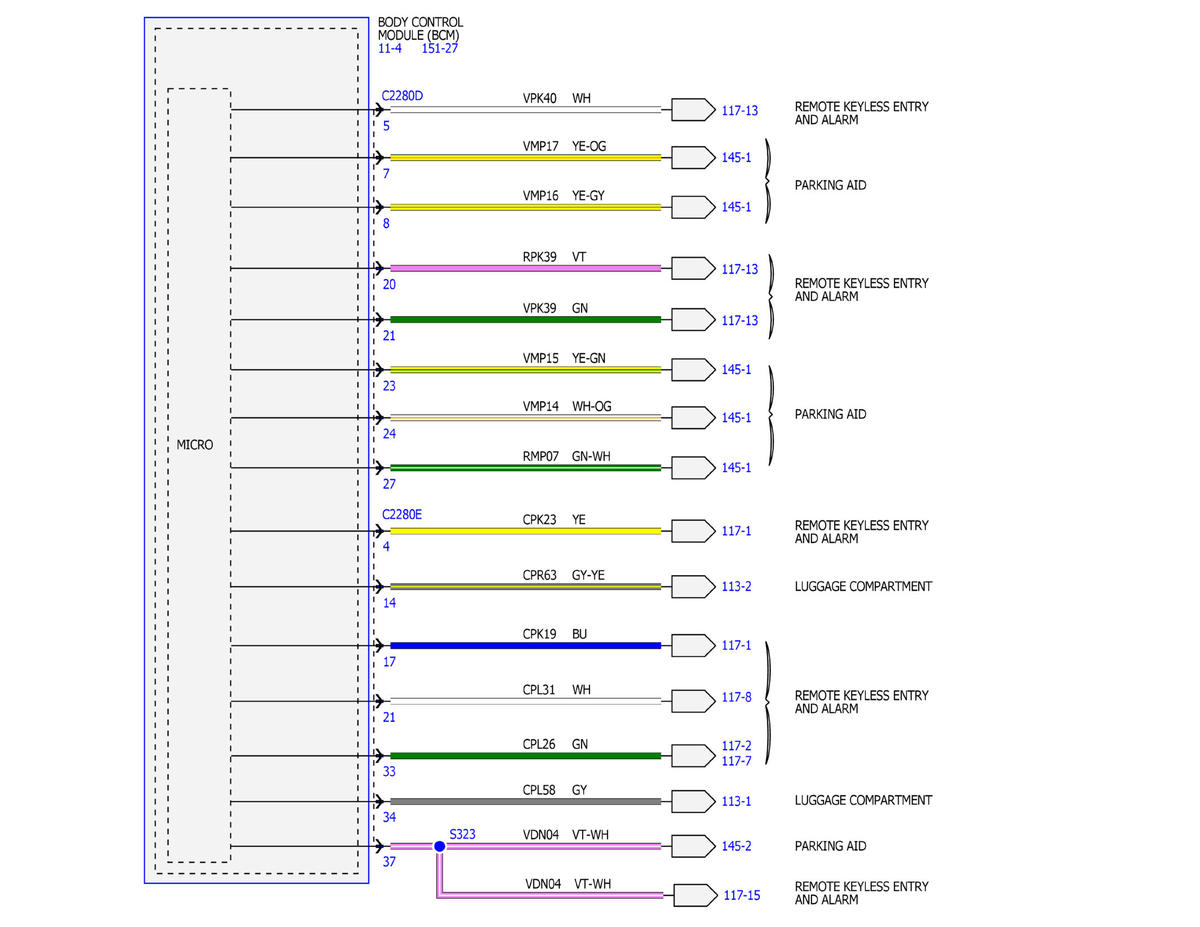

Fig 29: Power Distribution Wiring Diagram (29 of 39)

GFDWR11017

Courtesy of FORD MOTOR COMPANY

Fig 30: Power Distribution Wiring Diagram (30 of 39)

GFDWR11018

Courtesy of FORD MOTOR COMPANY

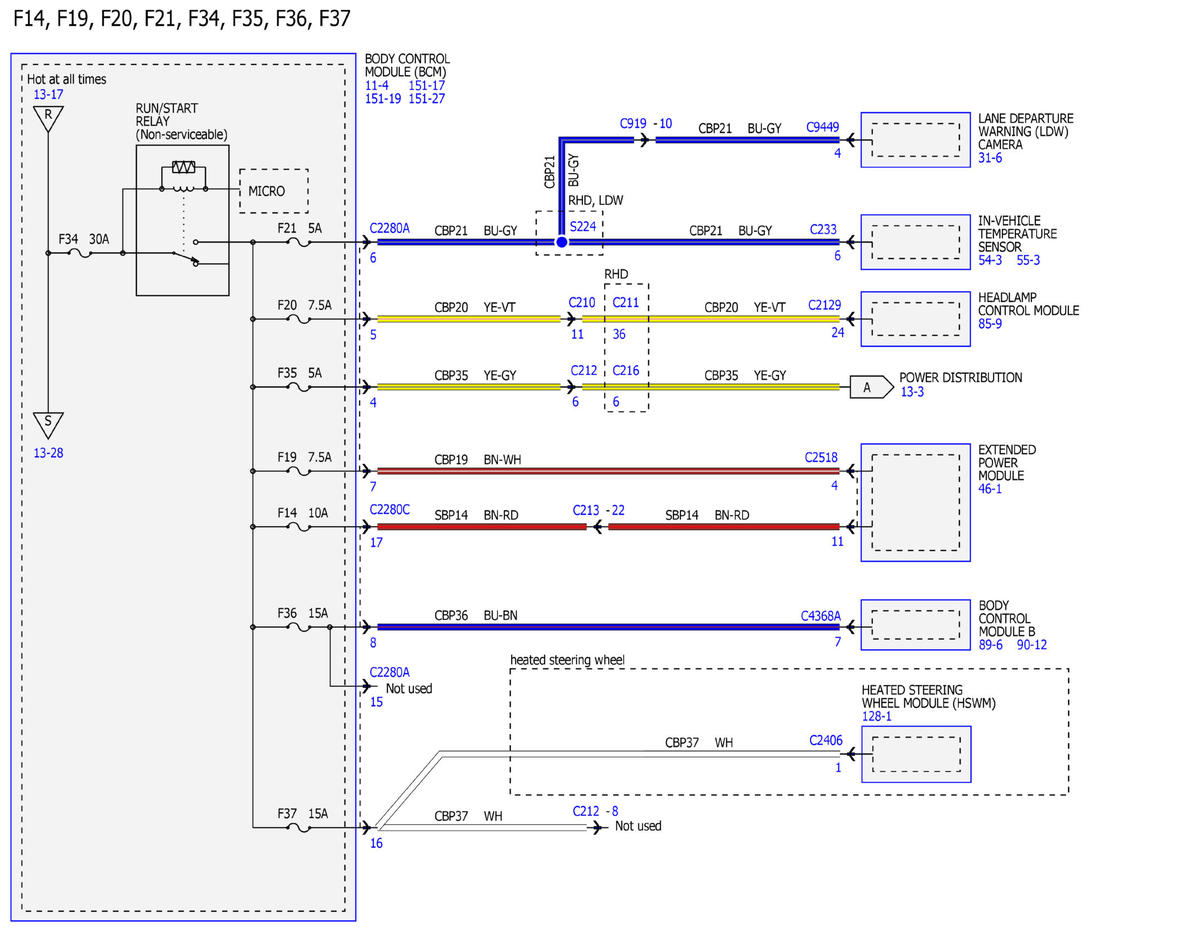

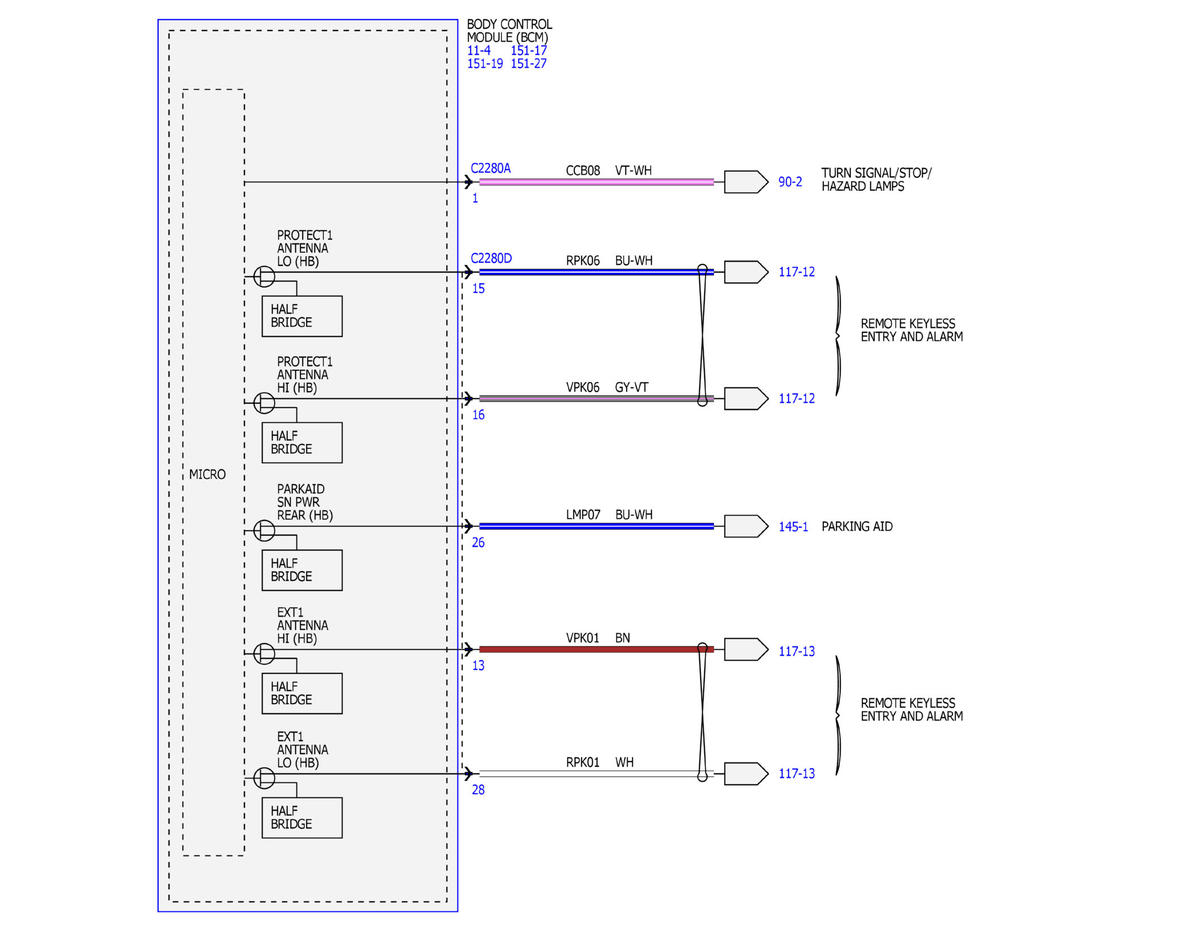

Fig 31: Power Distribution Wiring Diagram (31 of 39)

GFDWR11019

Courtesy of FORD MOTOR COMPANY

Fig 32: Power Distribution Wiring Diagram (32 of 39)

GFDWR11020

Courtesy of FORD MOTOR COMPANY

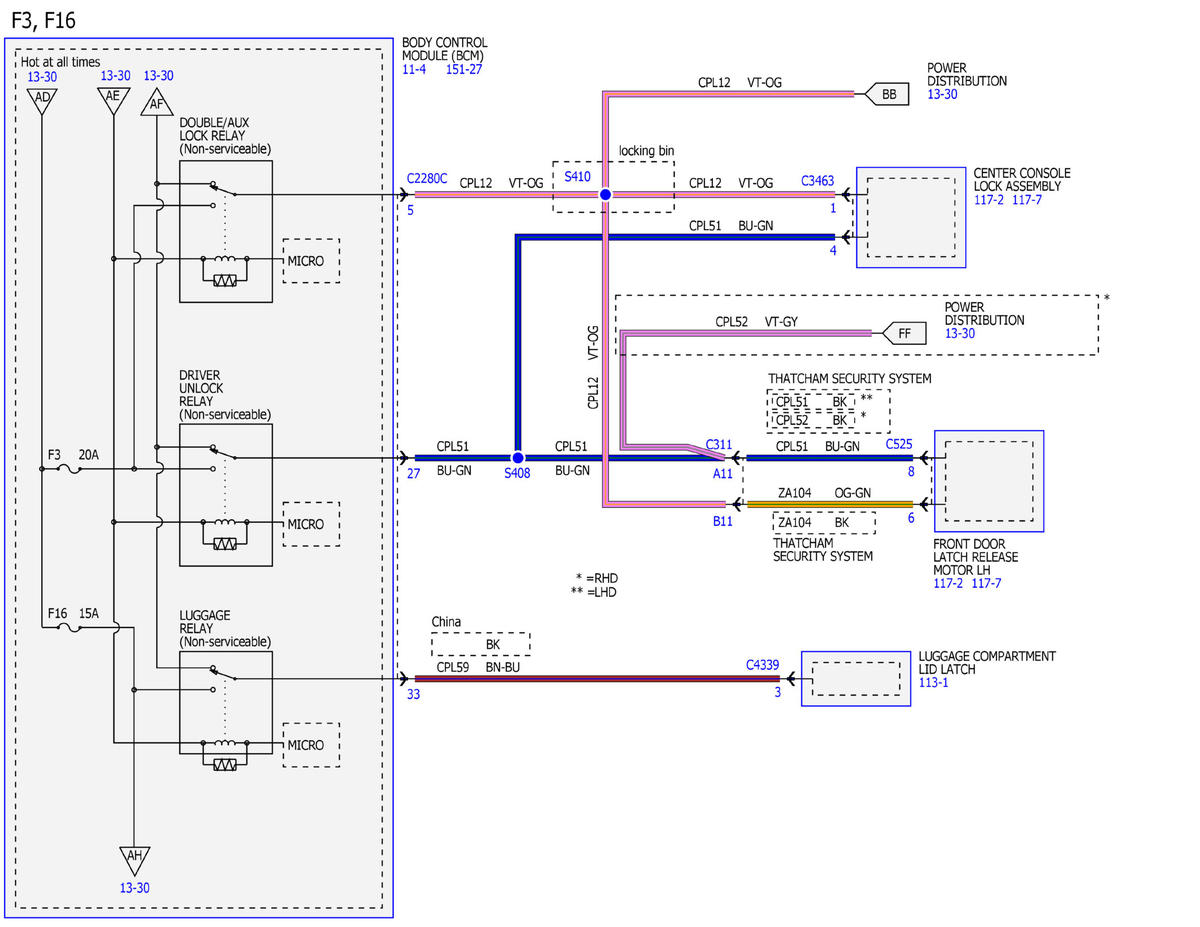

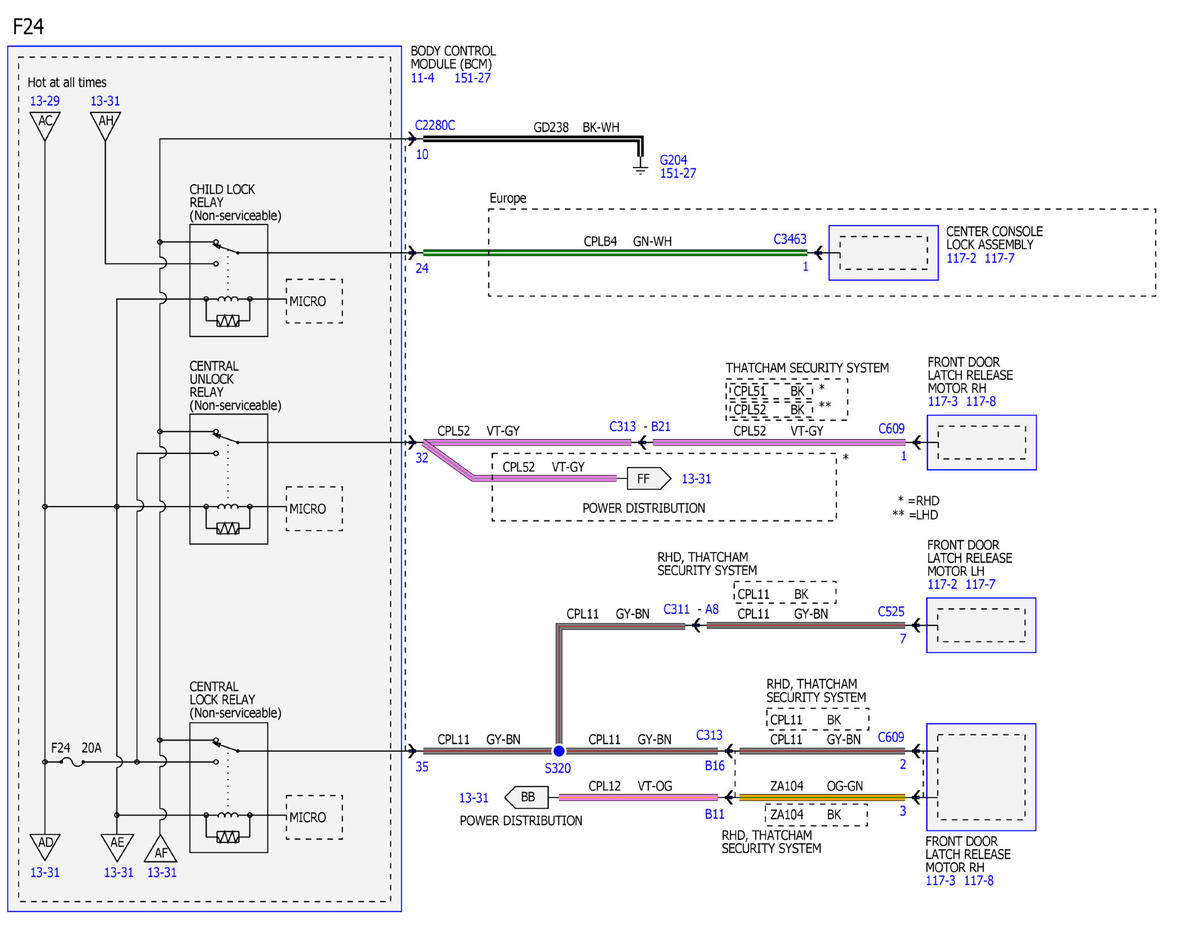

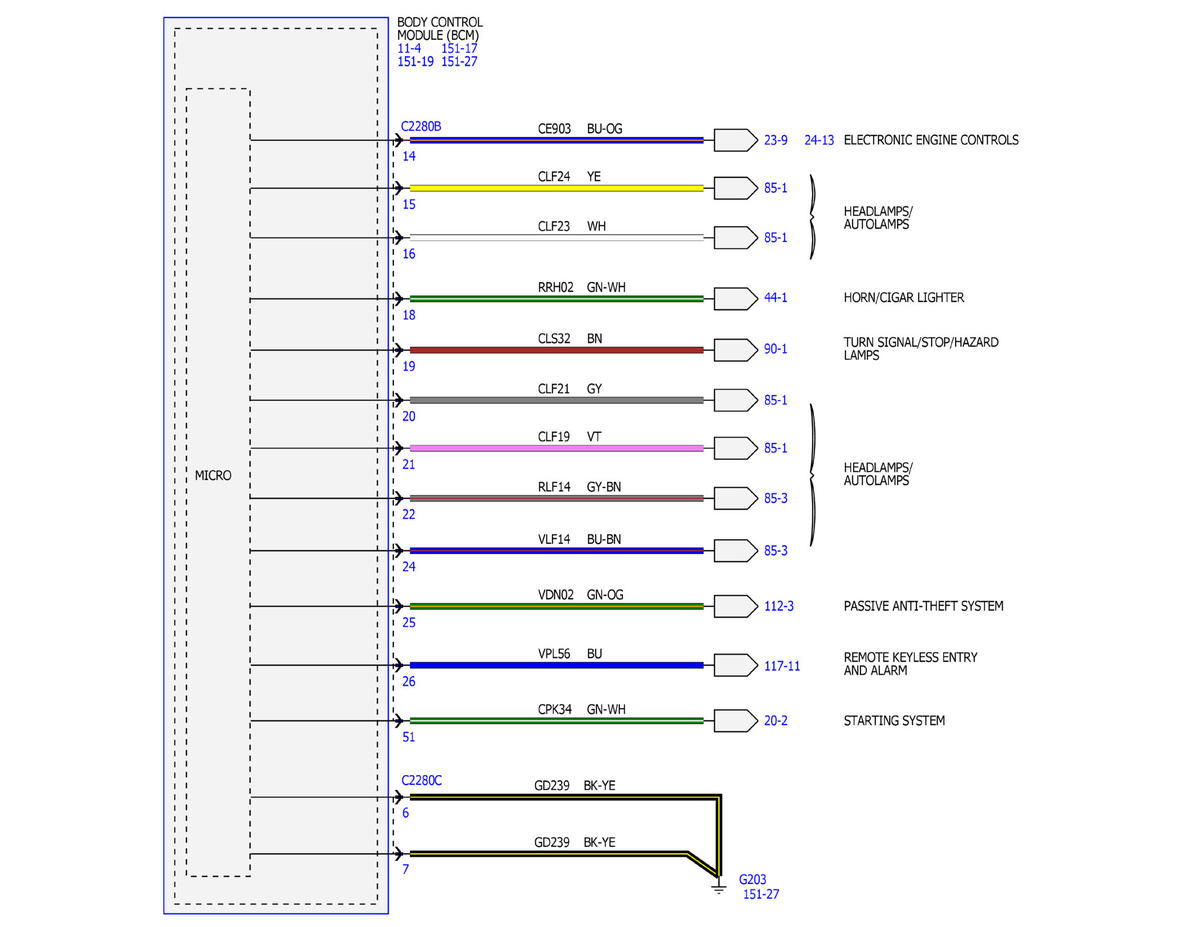

Fig 33: Power Distribution Wiring Diagram (33 of 39)

GFDWR11021

Courtesy of FORD MOTOR COMPANY

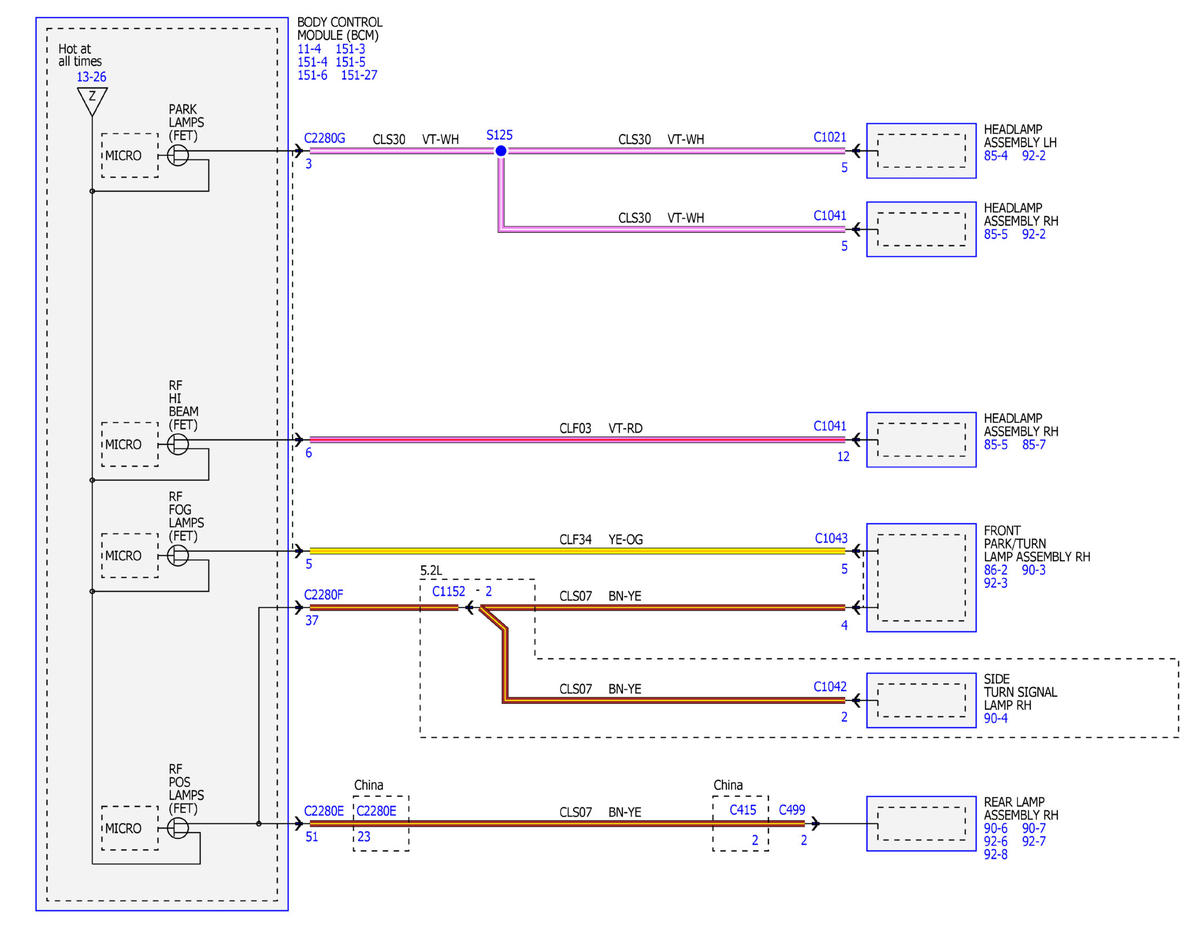

Fig 34: Power Distribution Wiring Diagram (34 of 39)

GFDWR11022

Courtesy of FORD MOTOR COMPANY

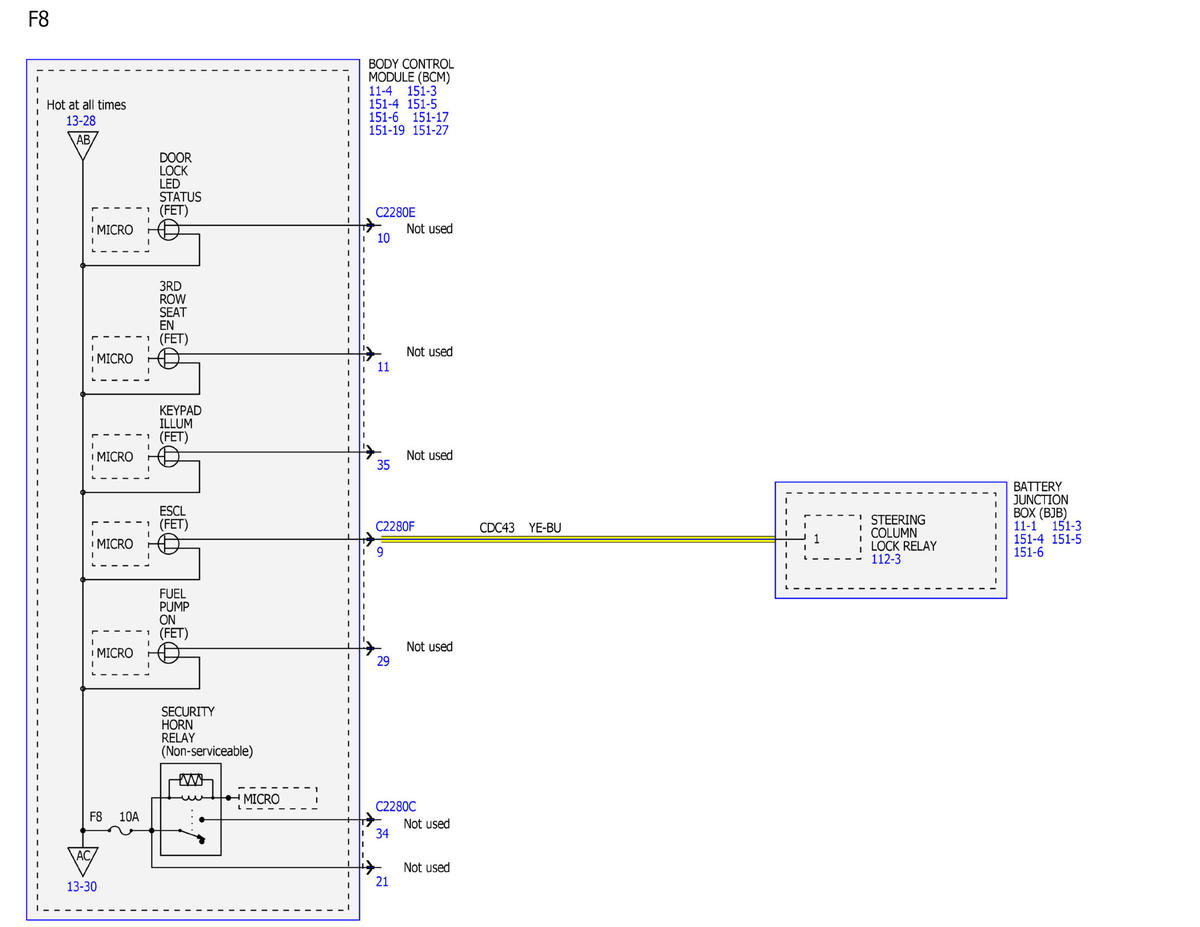

Fig 35: Power Distribution Wiring Diagram (35 of 39)

GFDWR11023

Courtesy of FORD MOTOR COMPANY

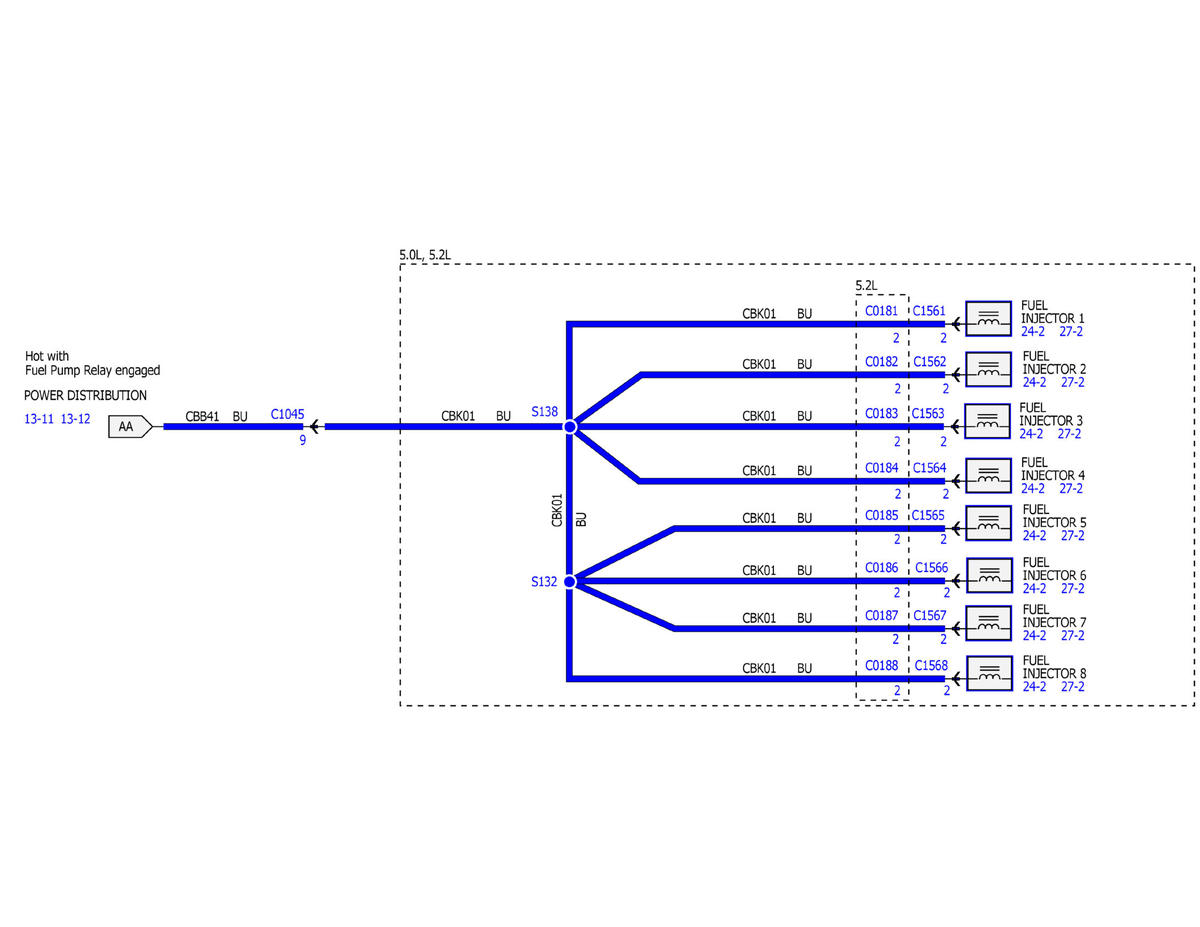

Fig 36: Power Distribution Wiring Diagram (36 of 39)

GFDWR11024

Courtesy of FORD MOTOR COMPANY

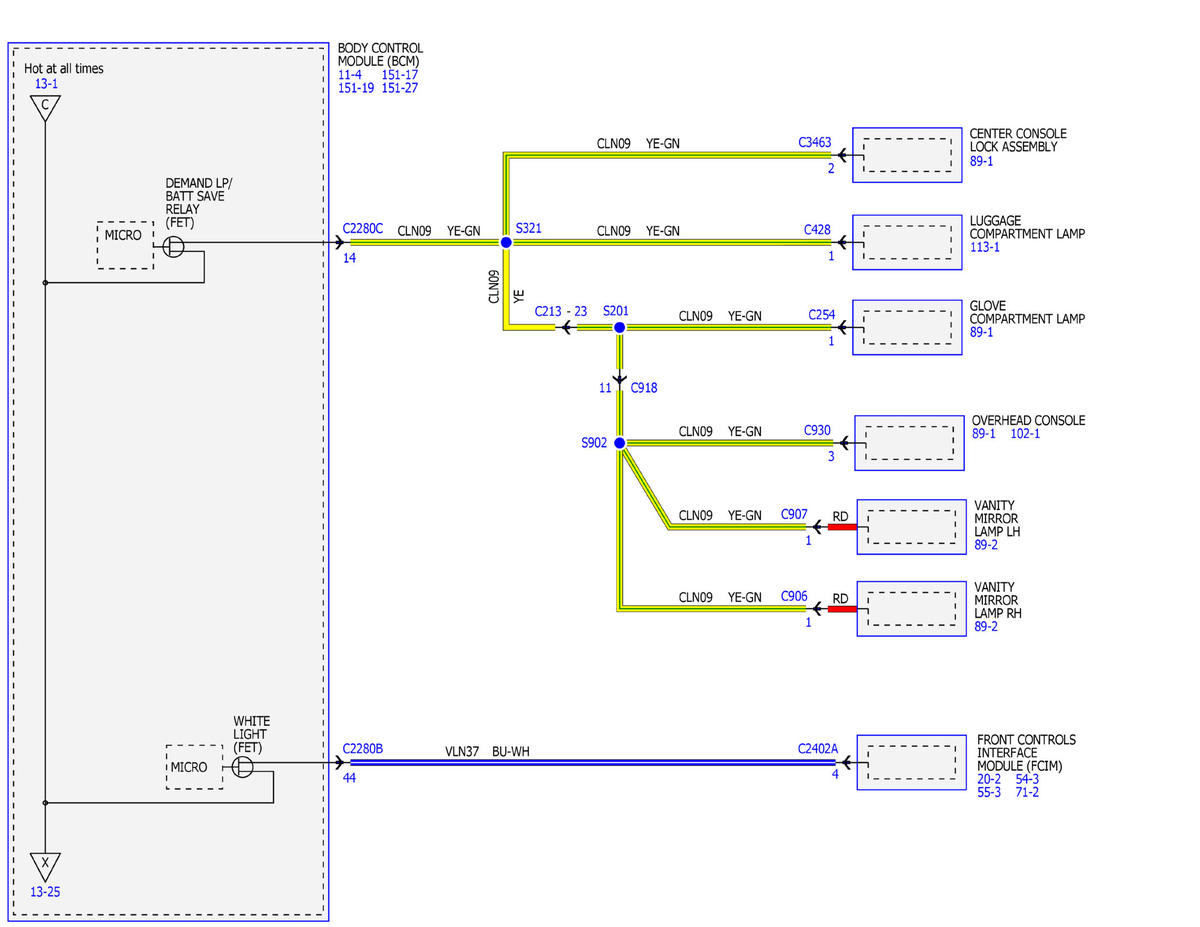

Fig 37: Power Distribution Wiring Diagram (37 of 39)

GFDWR11025

Courtesy of FORD MOTOR COMPANY

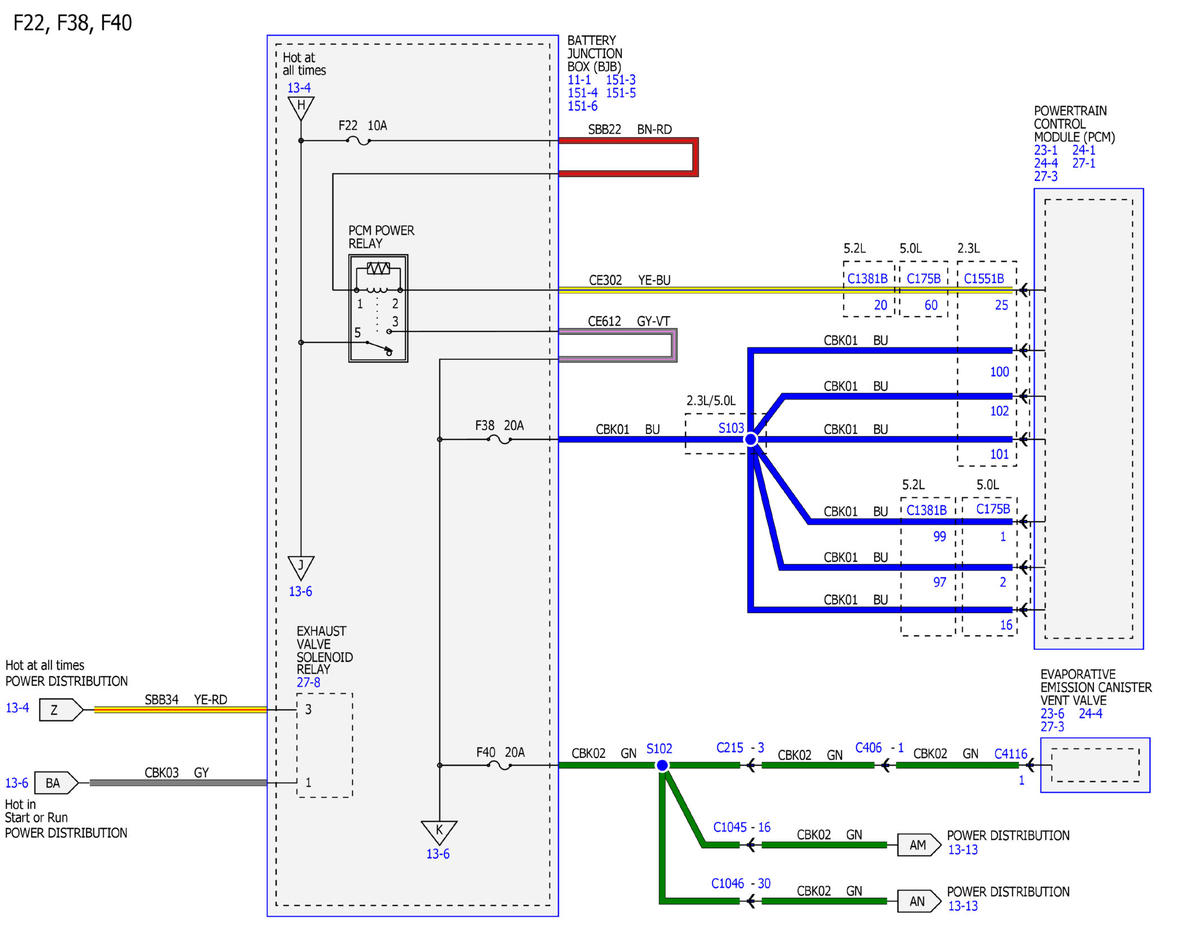

Fig 38: Power Distribution Wiring Diagram (38 of 39)

GFDWR11026

Courtesy of FORD MOTOR COMPANY

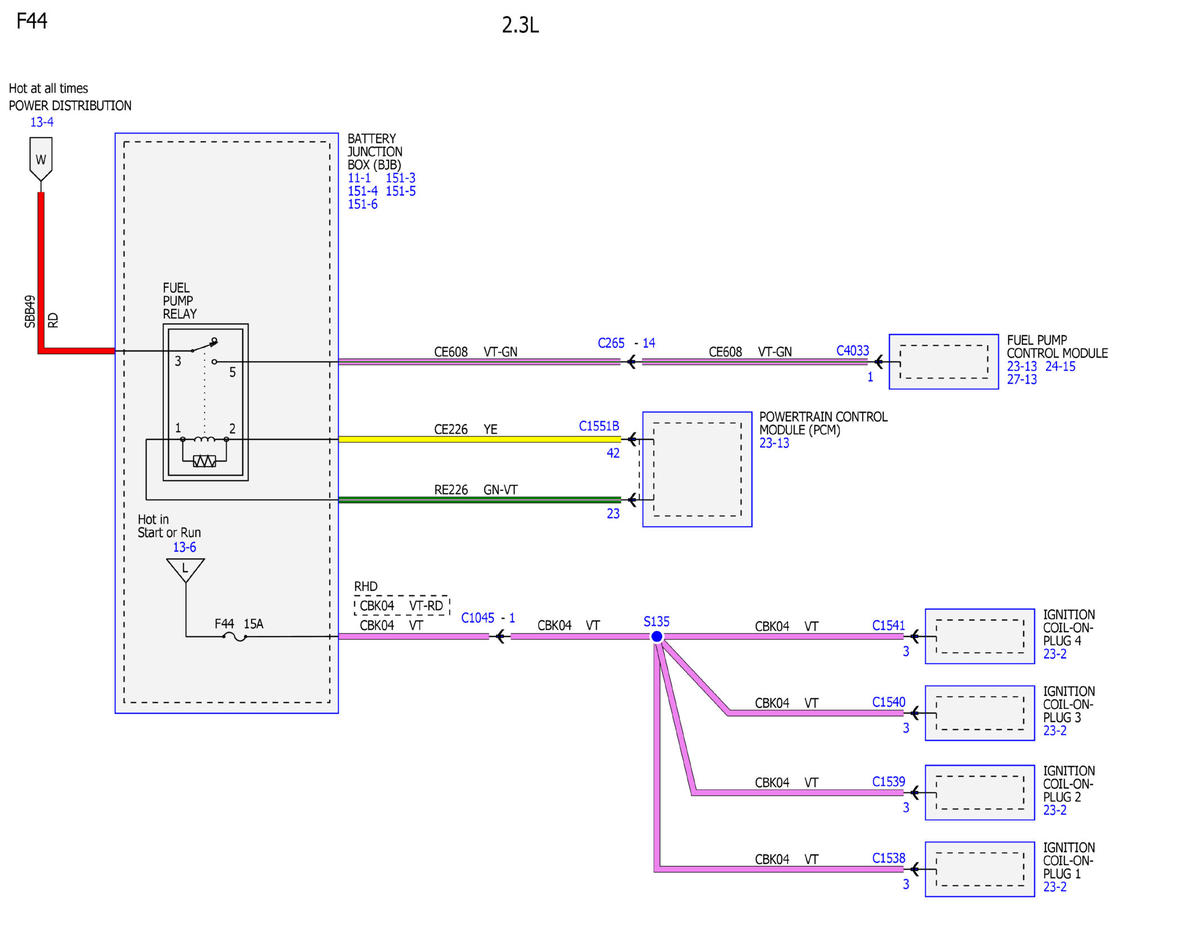

Fig 39: Power Distribution Wiring Diagram (39 of 39)

GFDWR11027
