Passive Anti-Theft System
Passive Anti-Theft System
Fig 1: Passive Anti-Theft System Wiring Diagram (1 of 3)
Courtesy of FORD MOTOR COMPANY

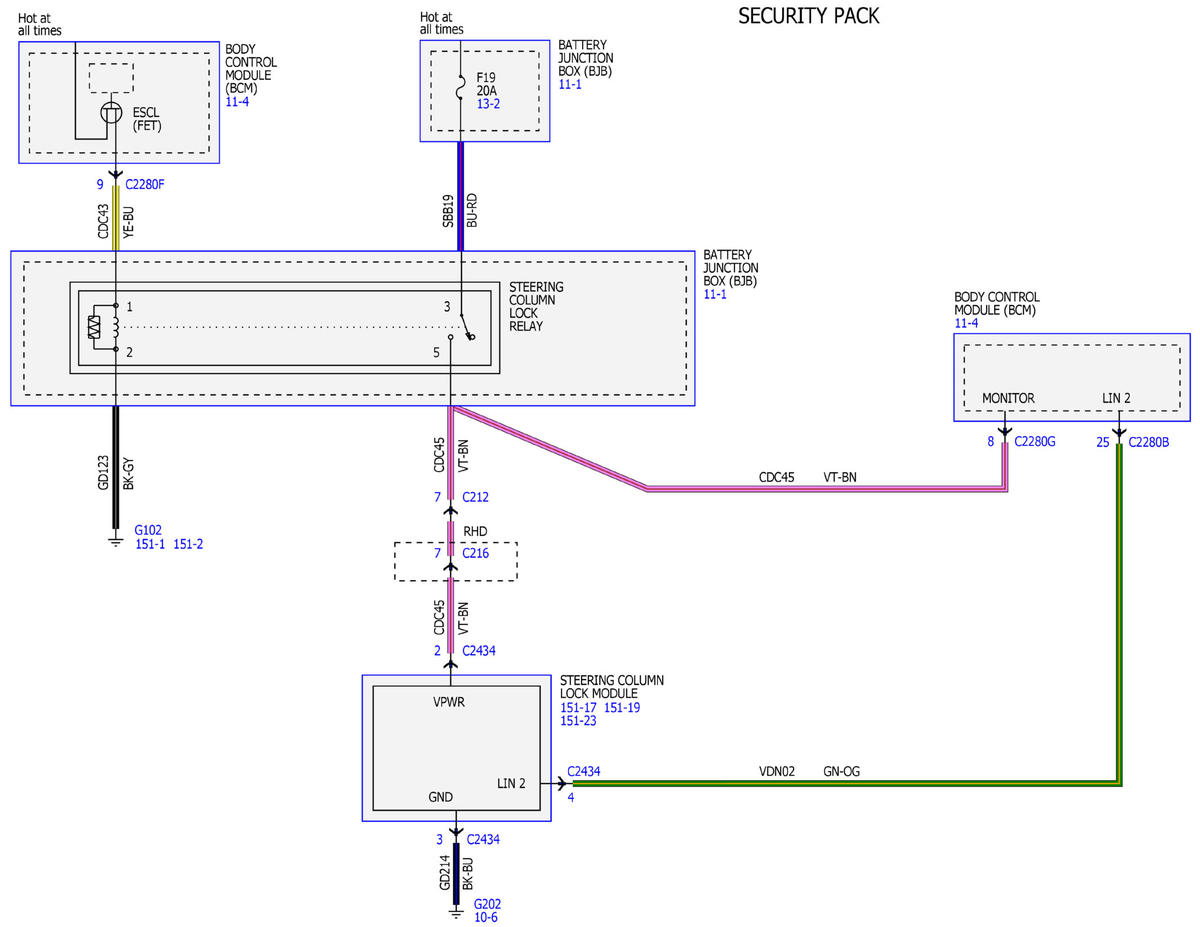

Fig 2: Passive Anti-Theft System Wiring Diagram (2 of 3)
Courtesy of FORD MOTOR COMPANY
Fig 3: Passive Anti-Theft System Wiring Diagram (3 of 3)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
