Parking Aid

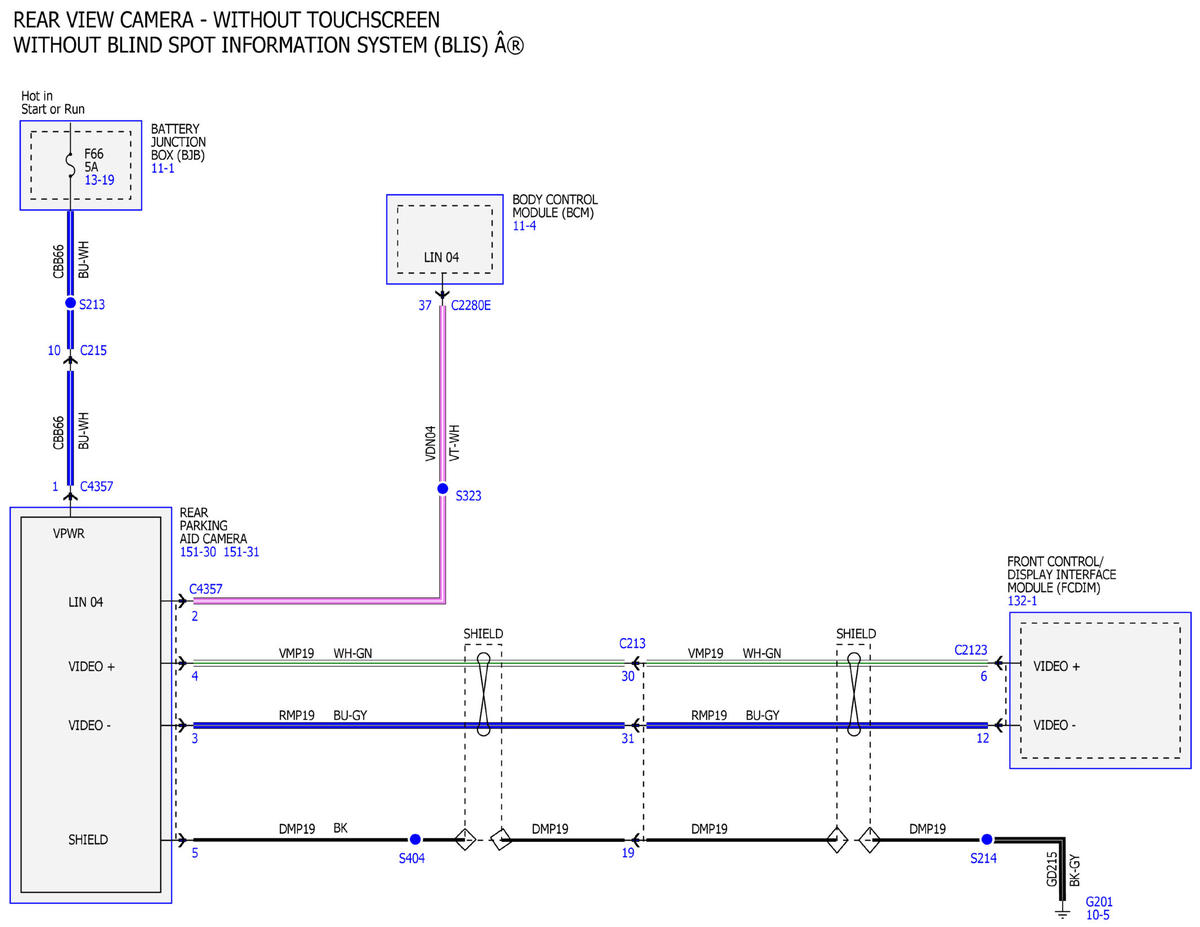

Fig 1: Parking Aid Wiring Diagram (1 of 3)
GFDWR10975Courtesy of FORD MOTOR COMPANY

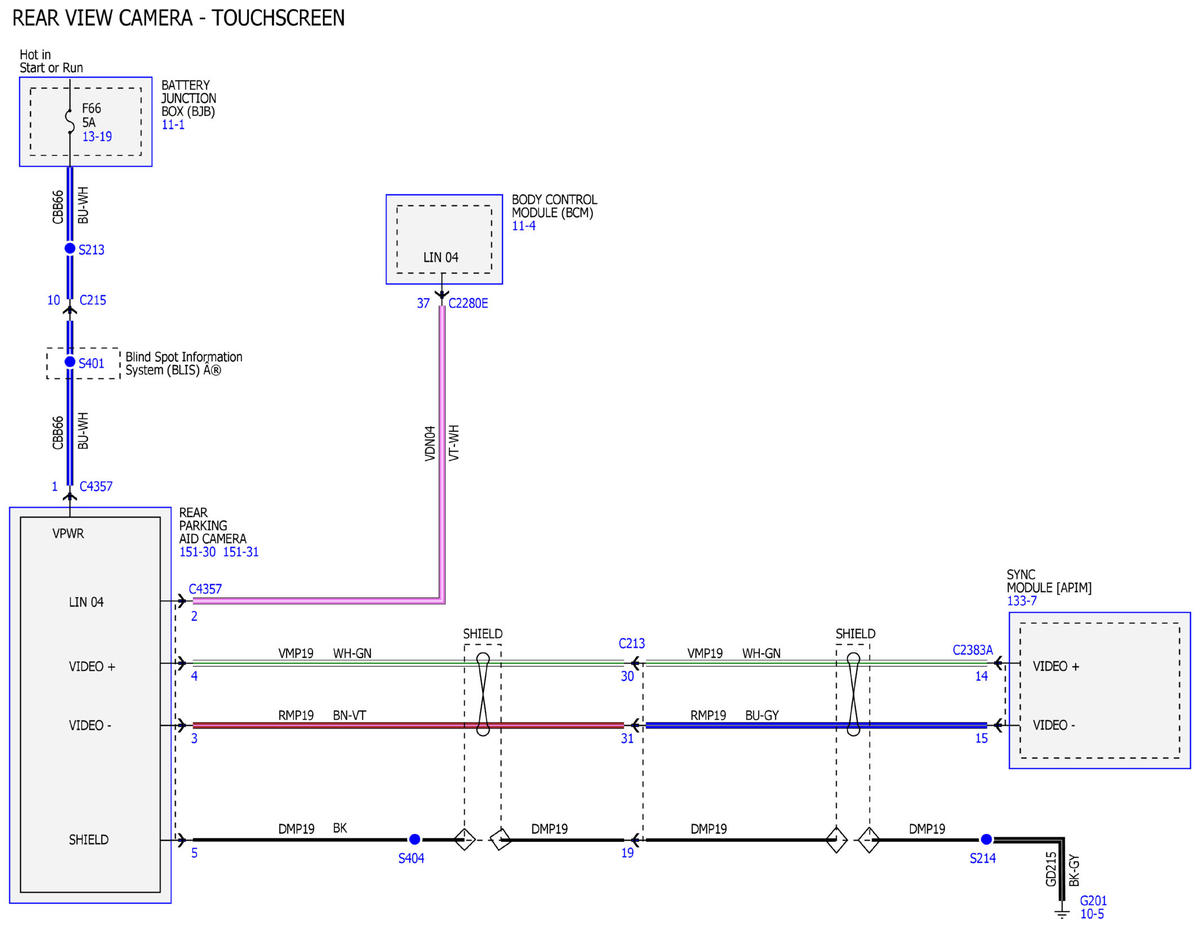

Fig 2: Parking Aid Wiring Diagram (2 of 3)
GFDWR10976Courtesy of FORD MOTOR COMPANY

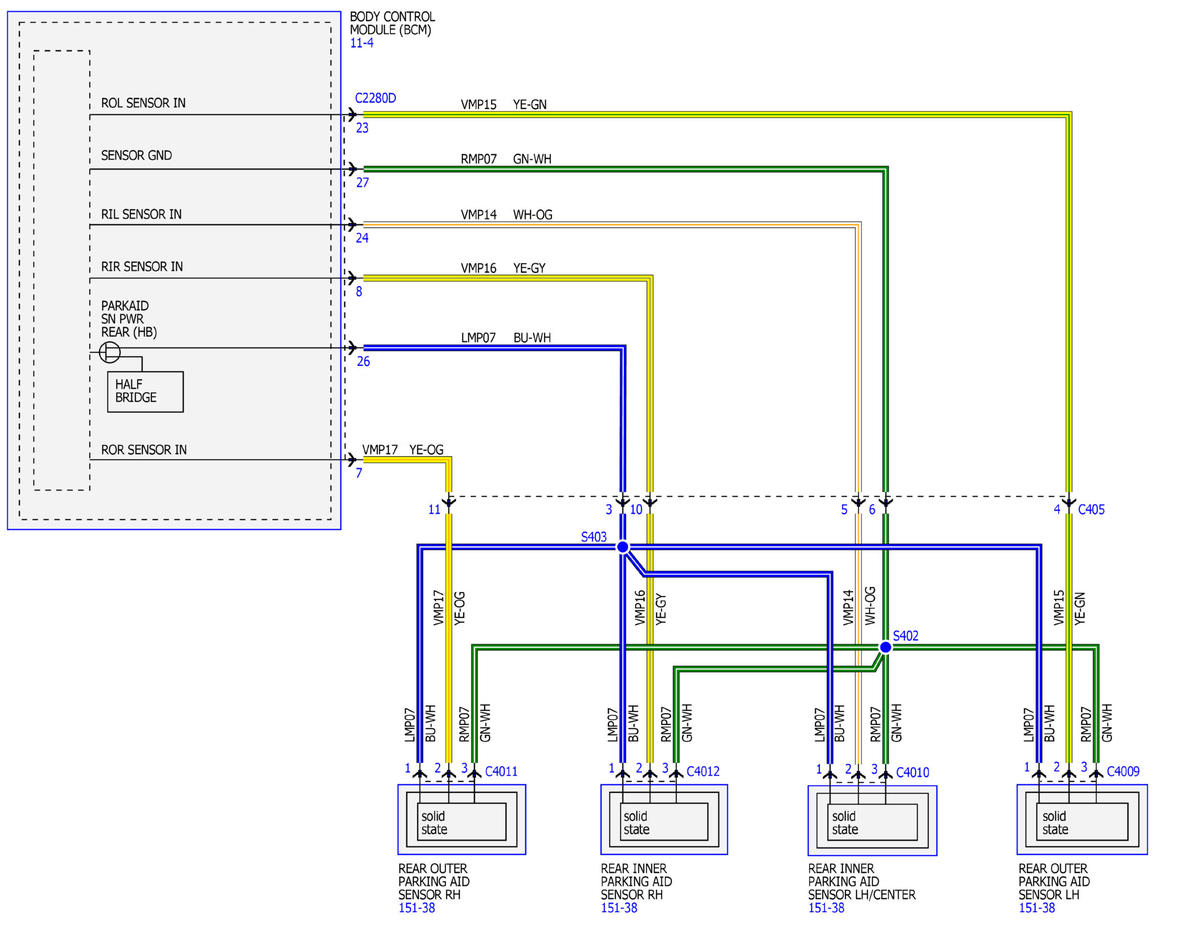

Fig 3: Parking Aid Wiring Diagram (3 of 3)
GFDWR10977Courtesy of FORD MOTOR COMPANY
