Instrument Cluster

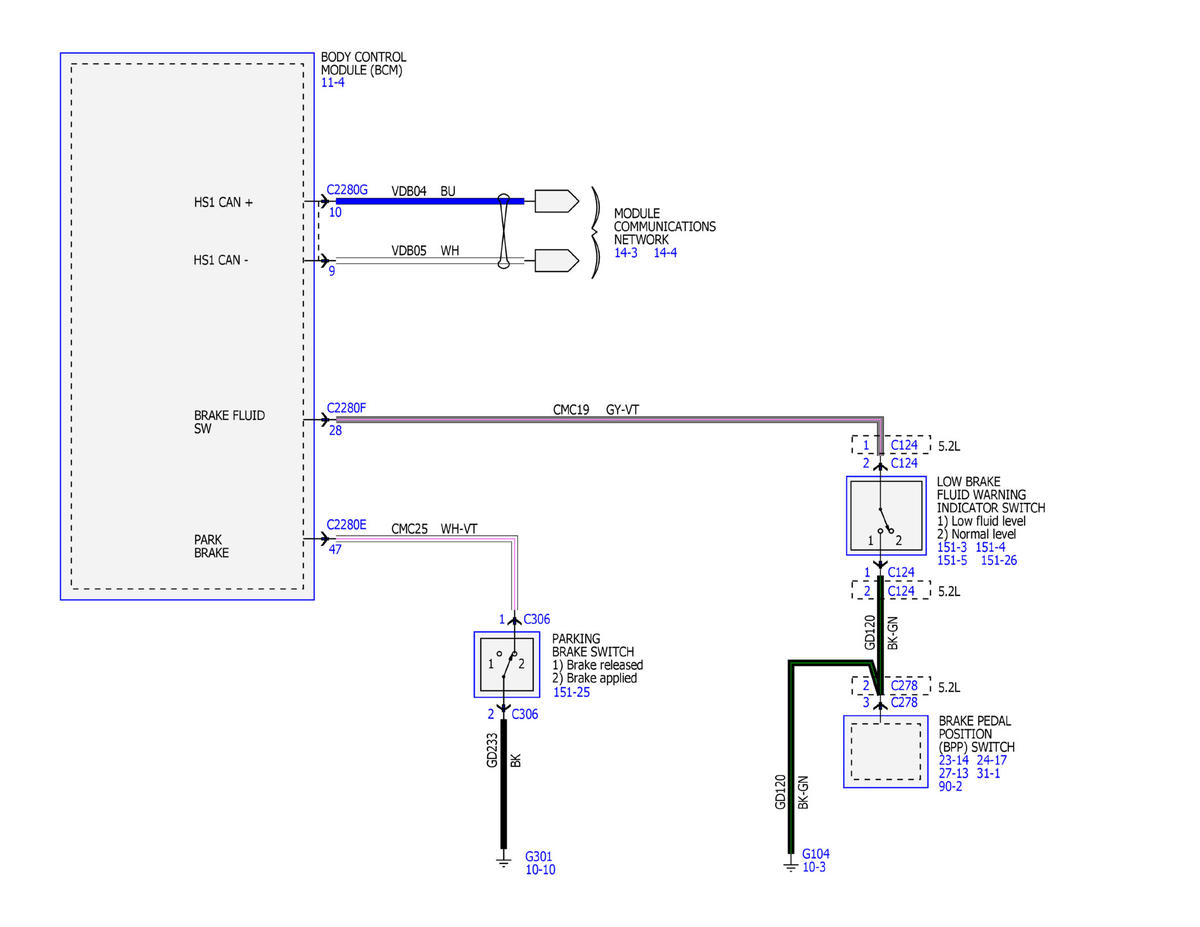

Fig 1: Instrument Cluster Wiring Diagram (1 of 4)
GFDWR10931Courtesy of FORD MOTOR COMPANY

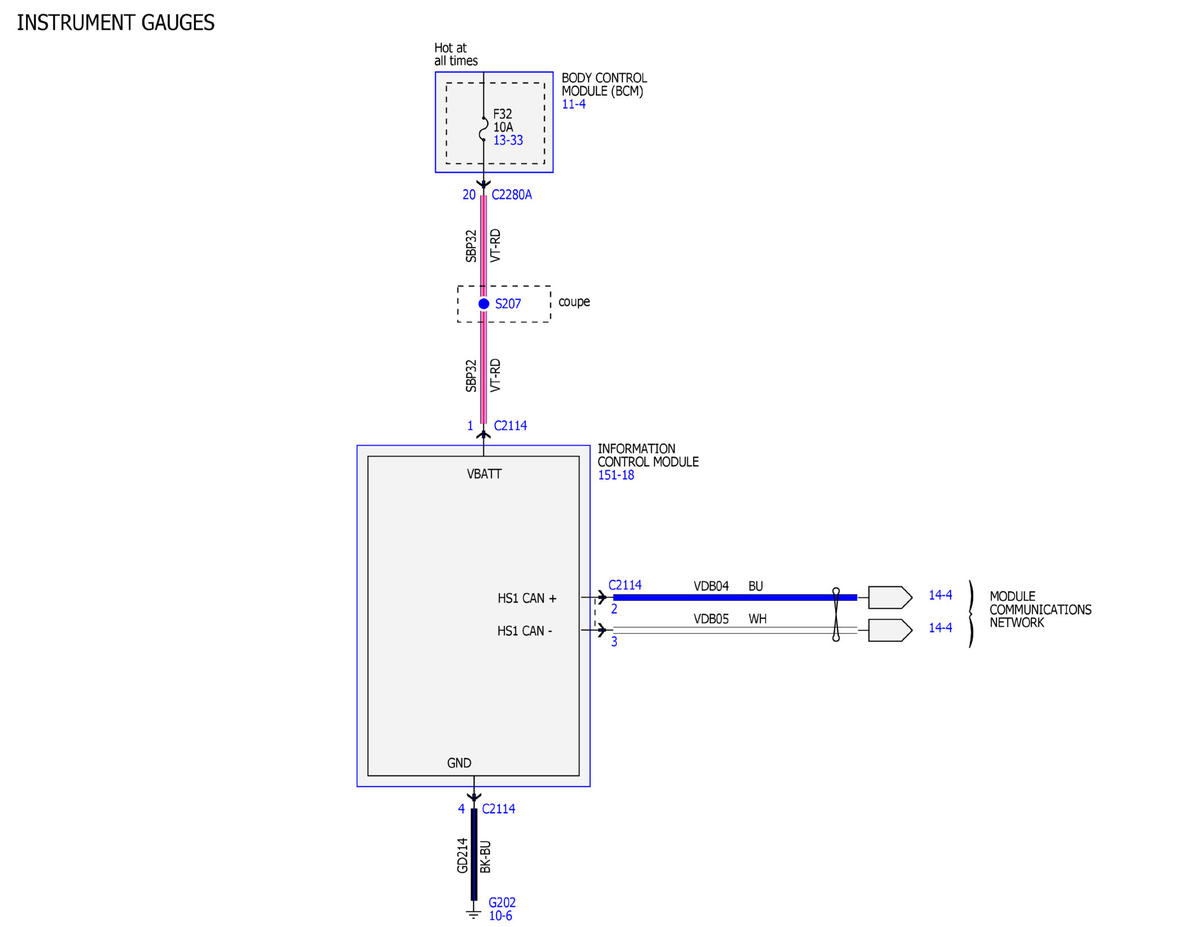

Fig 2: Instrument Cluster Wiring Diagram (2 of 4)
GFDWR10932Courtesy of FORD MOTOR COMPANY

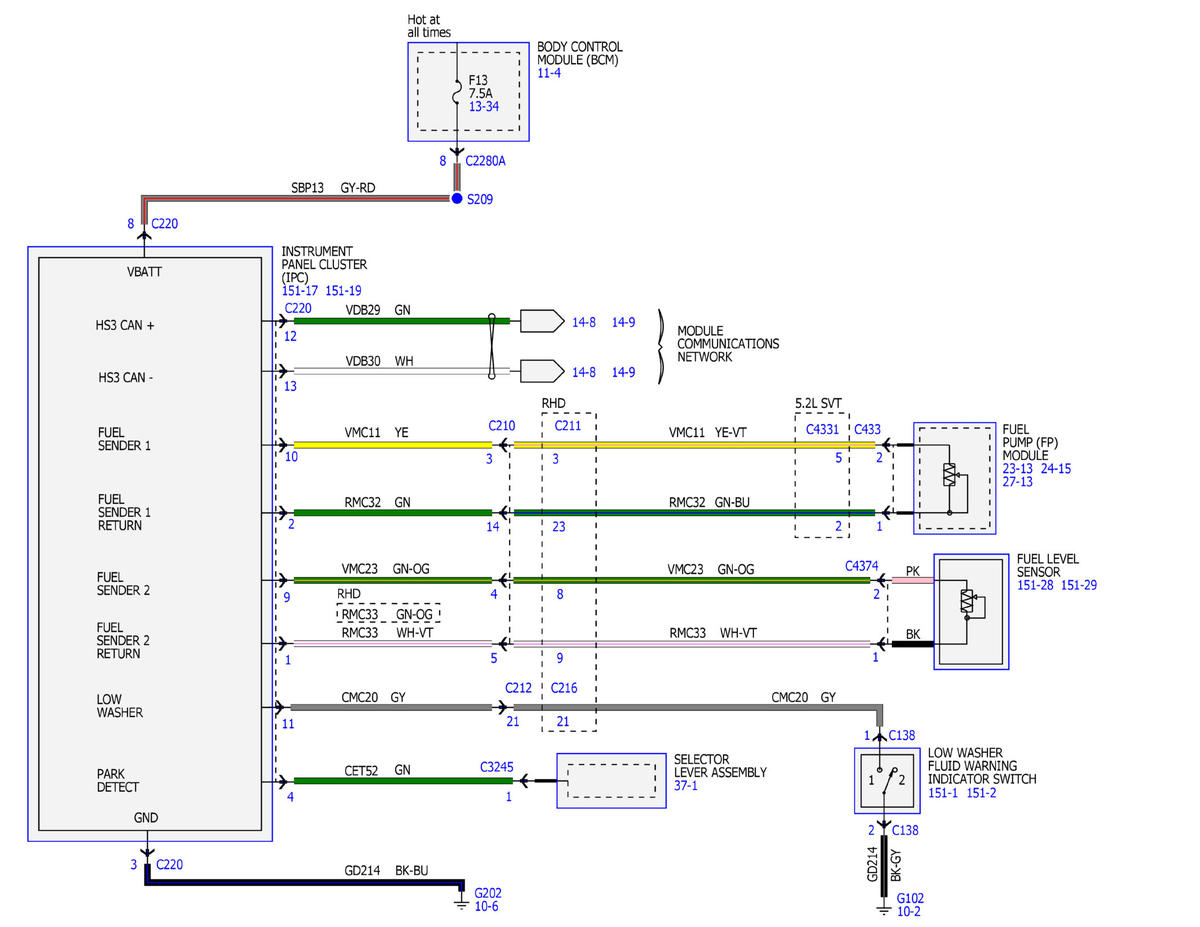

Fig 3: Instrument Cluster Wiring Diagram (3 of 4)
GFDWR10933Courtesy of FORD MOTOR COMPANY

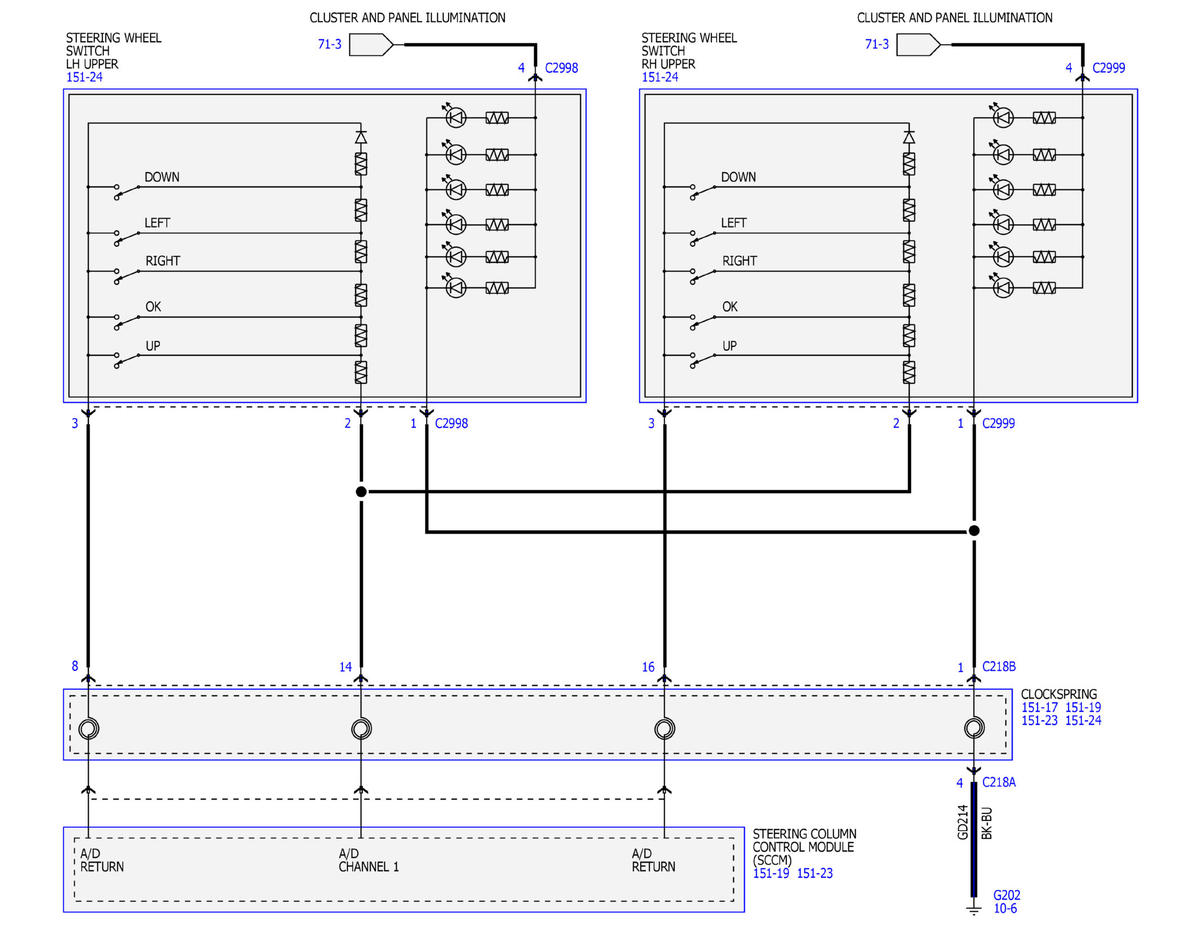

Fig 4: Instrument Cluster Wiring Diagram (4 of 4)
GFDWR10934Courtesy of FORD MOTOR COMPANY
