Electronic Engine Controls - 5.0L

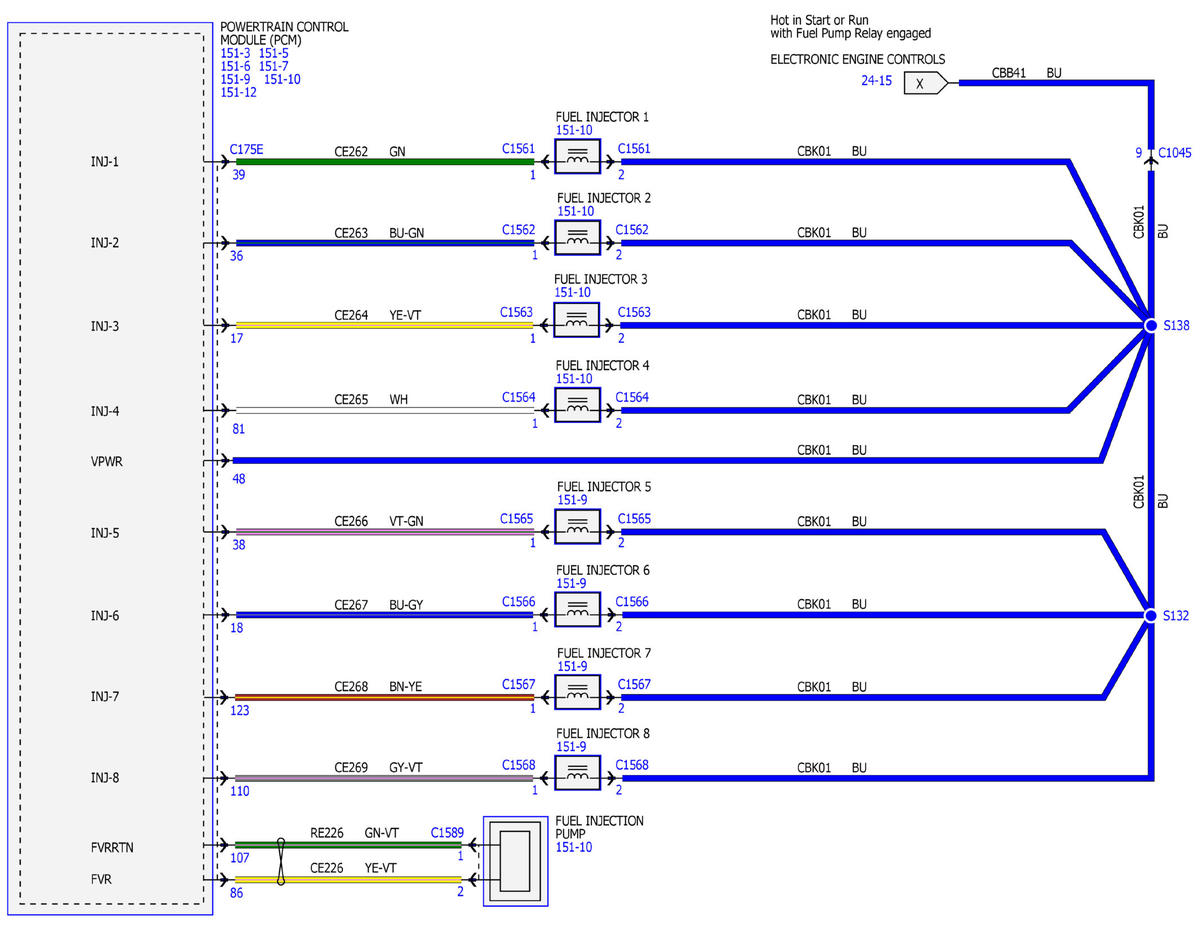

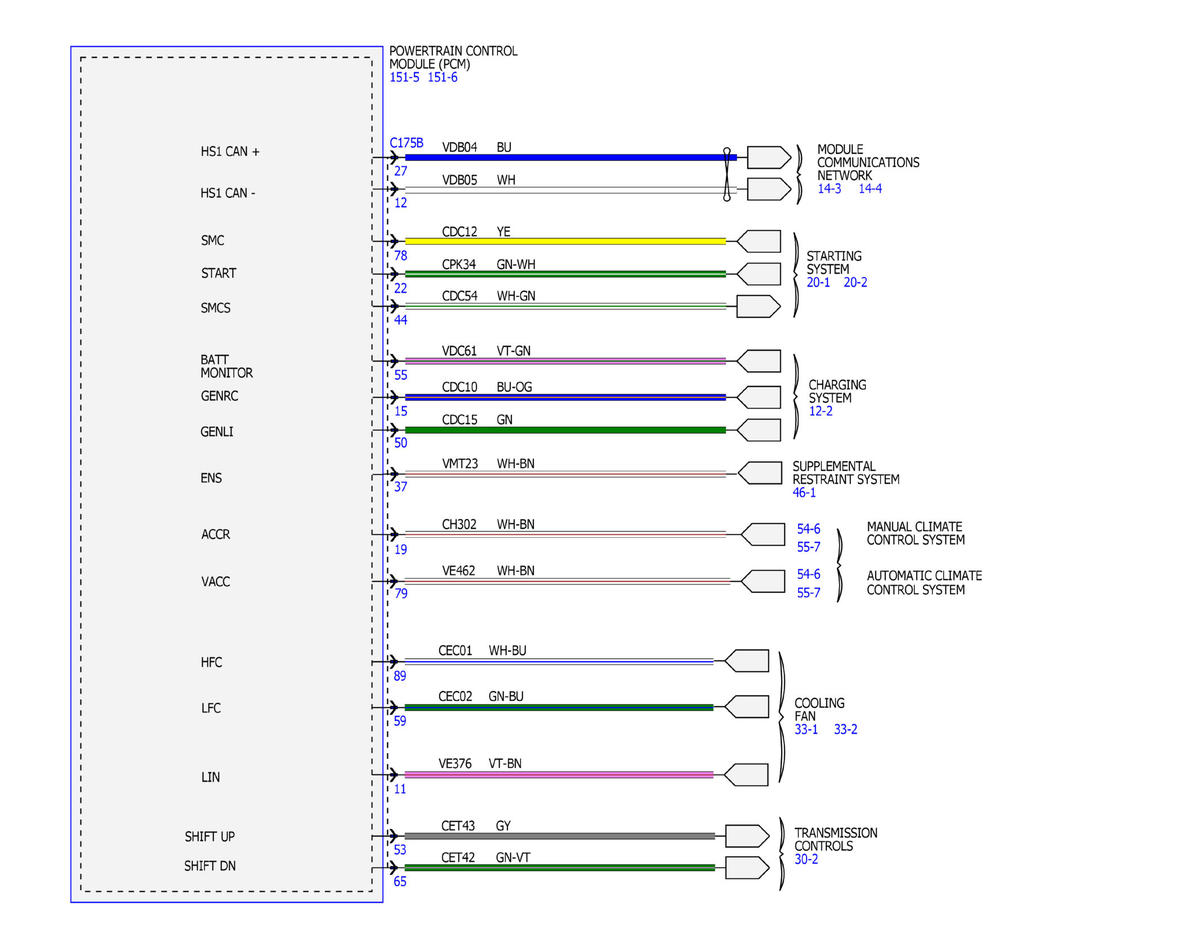

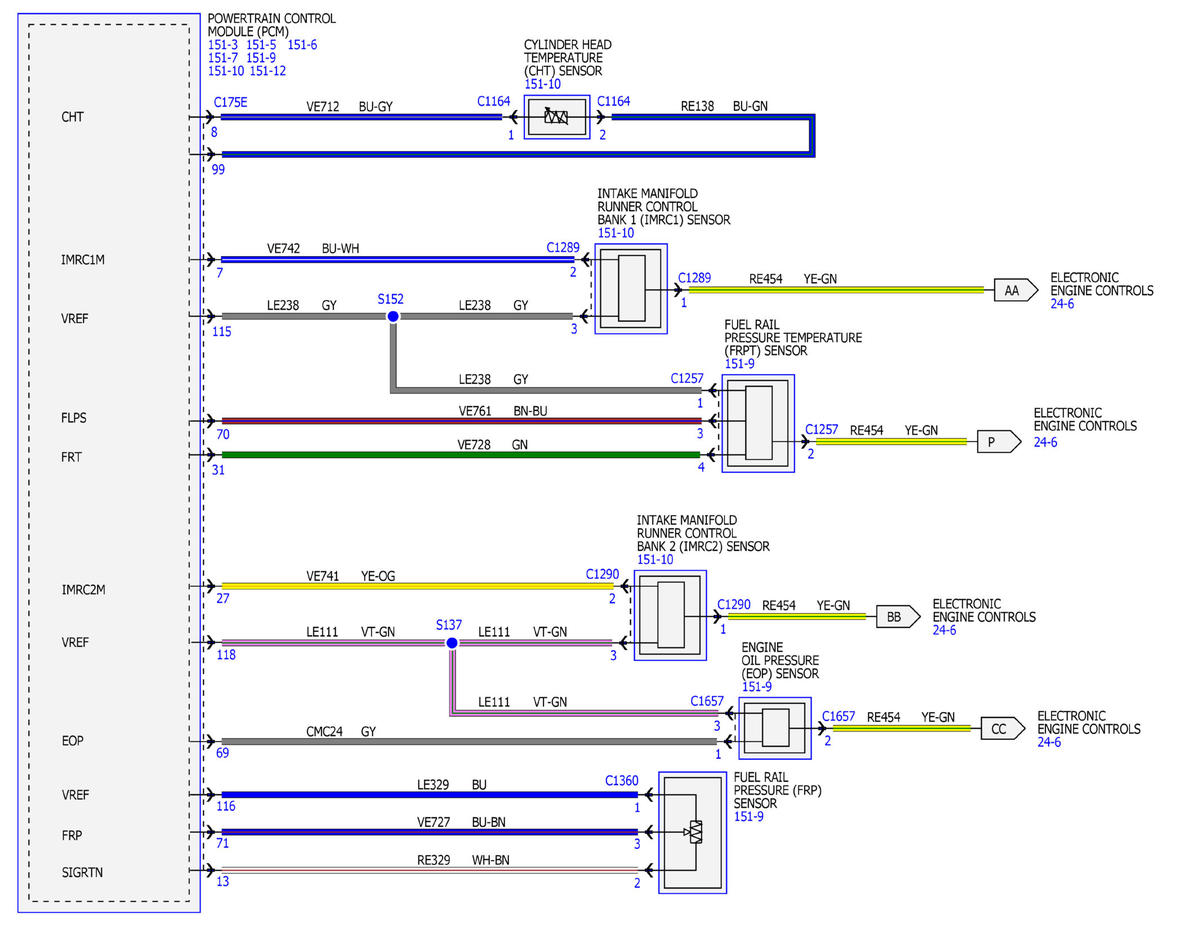

Fig 1: Electronic Engine Controls - 5.0L Wiring Diagram (1 of 18)

Courtesy of FORD MOTOR COMPANY

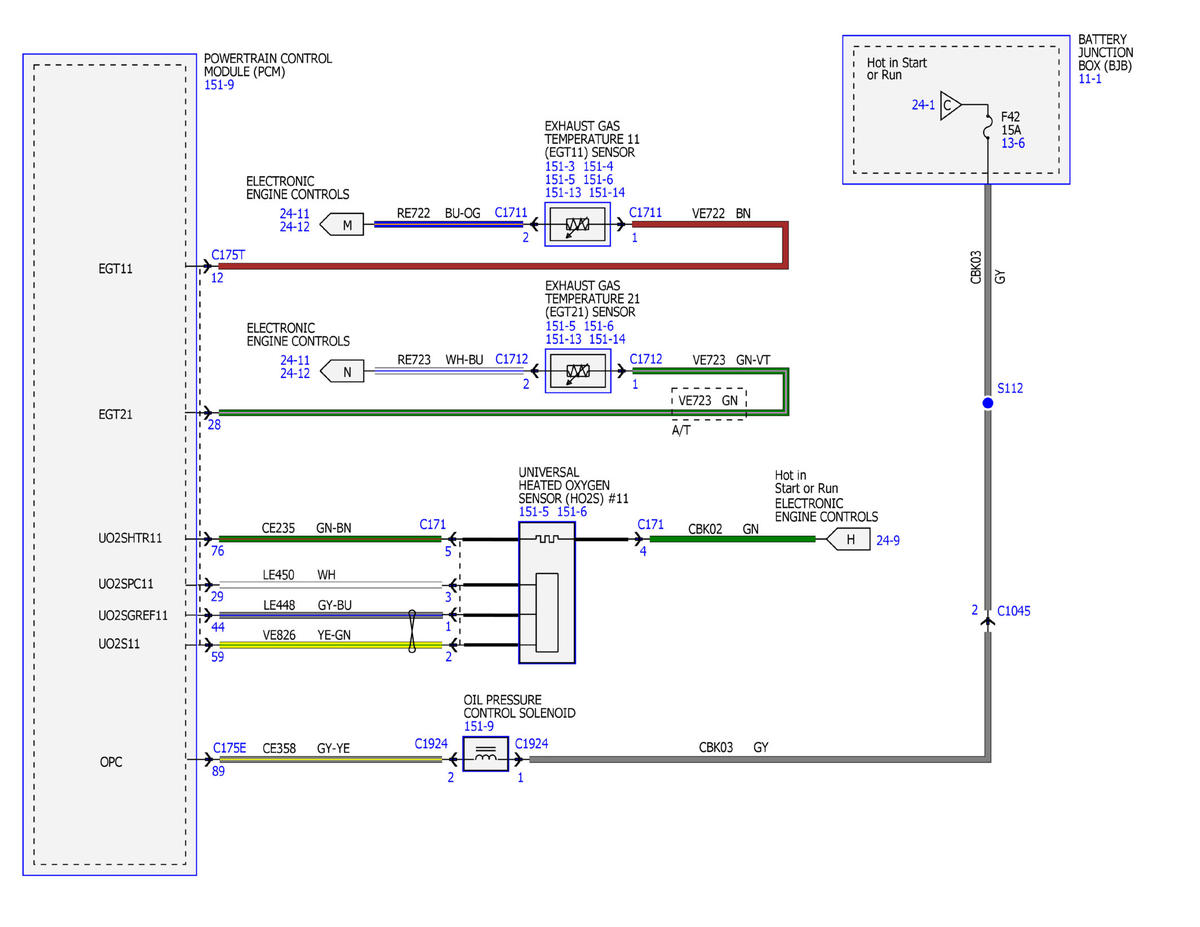

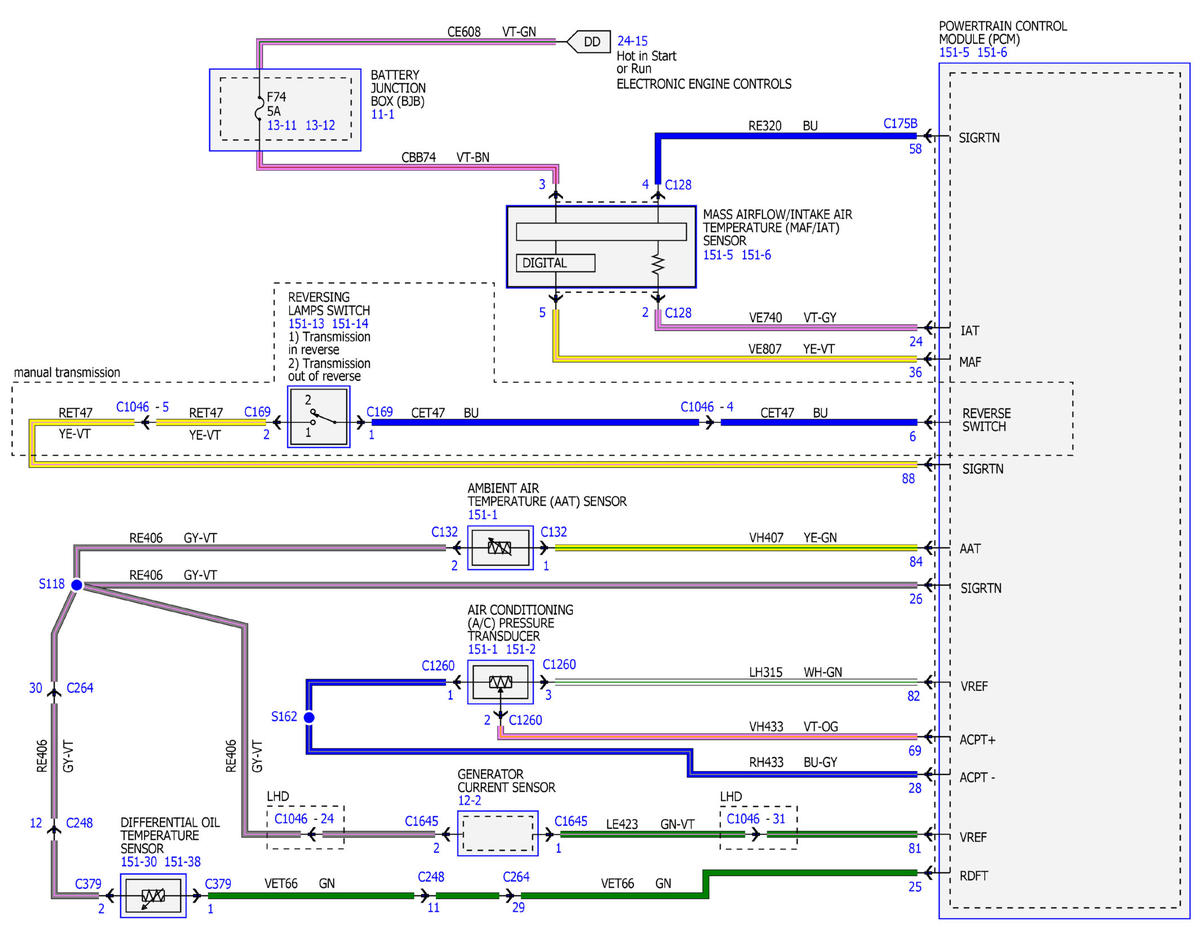

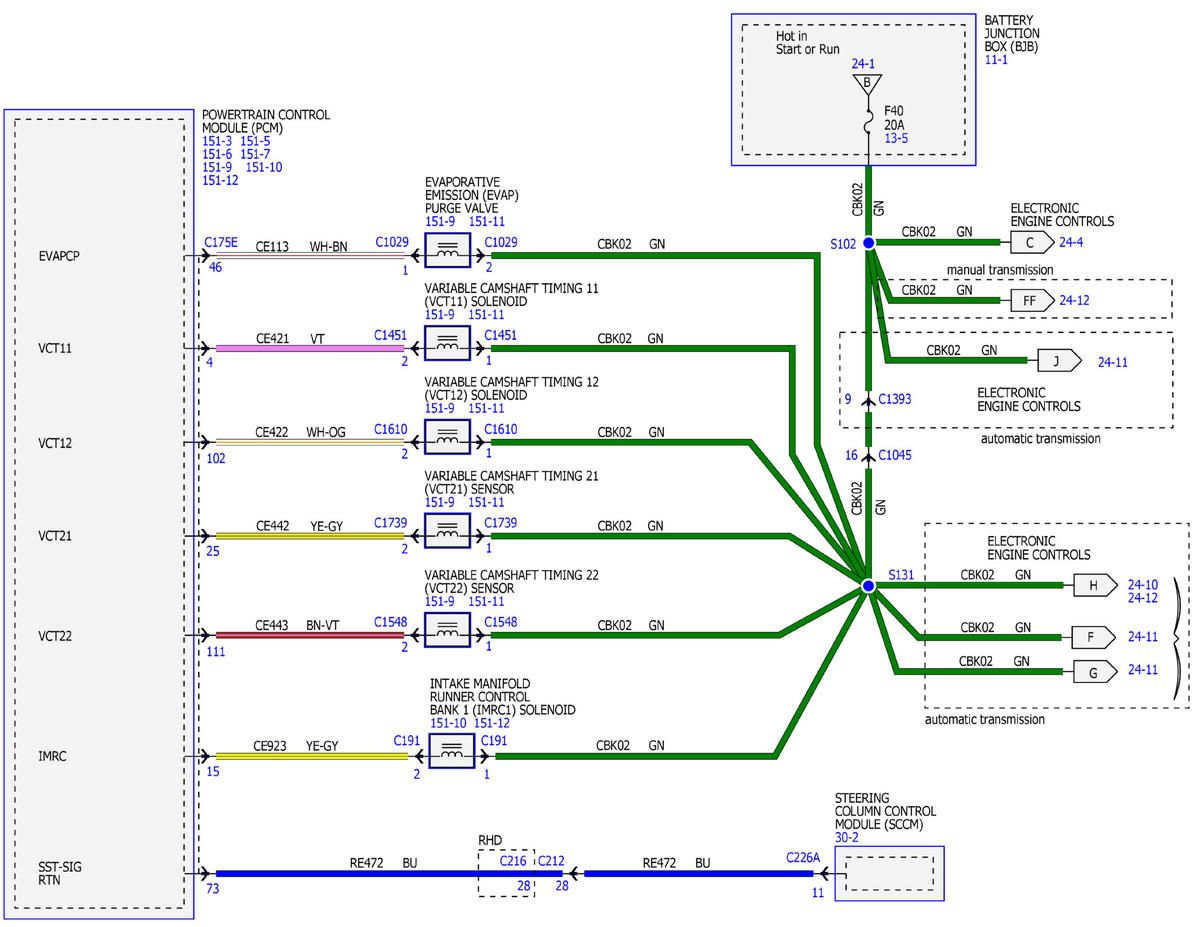

Fig 2: Electronic Engine Controls - 5.0L Wiring Diagram (2 of 18)

Courtesy of FORD MOTOR COMPANY

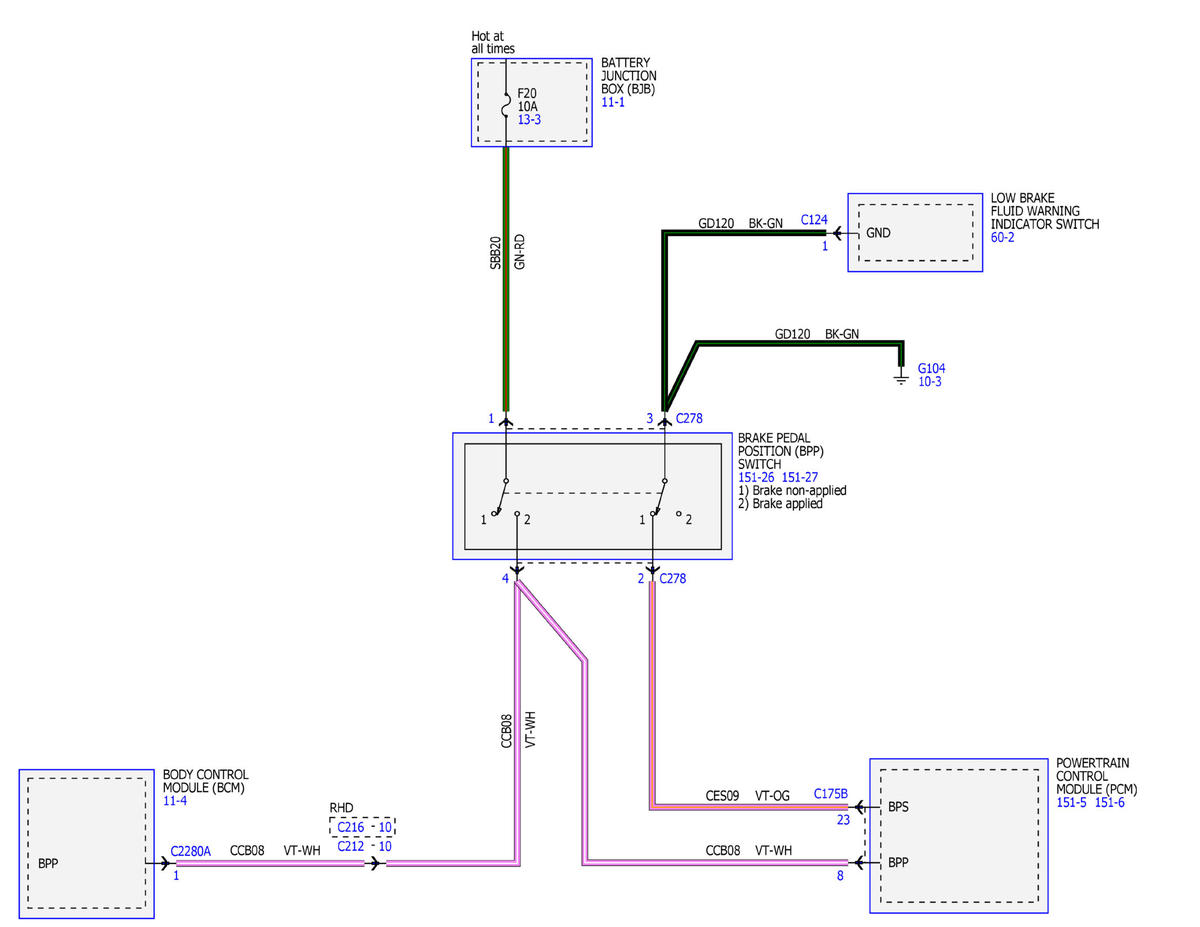

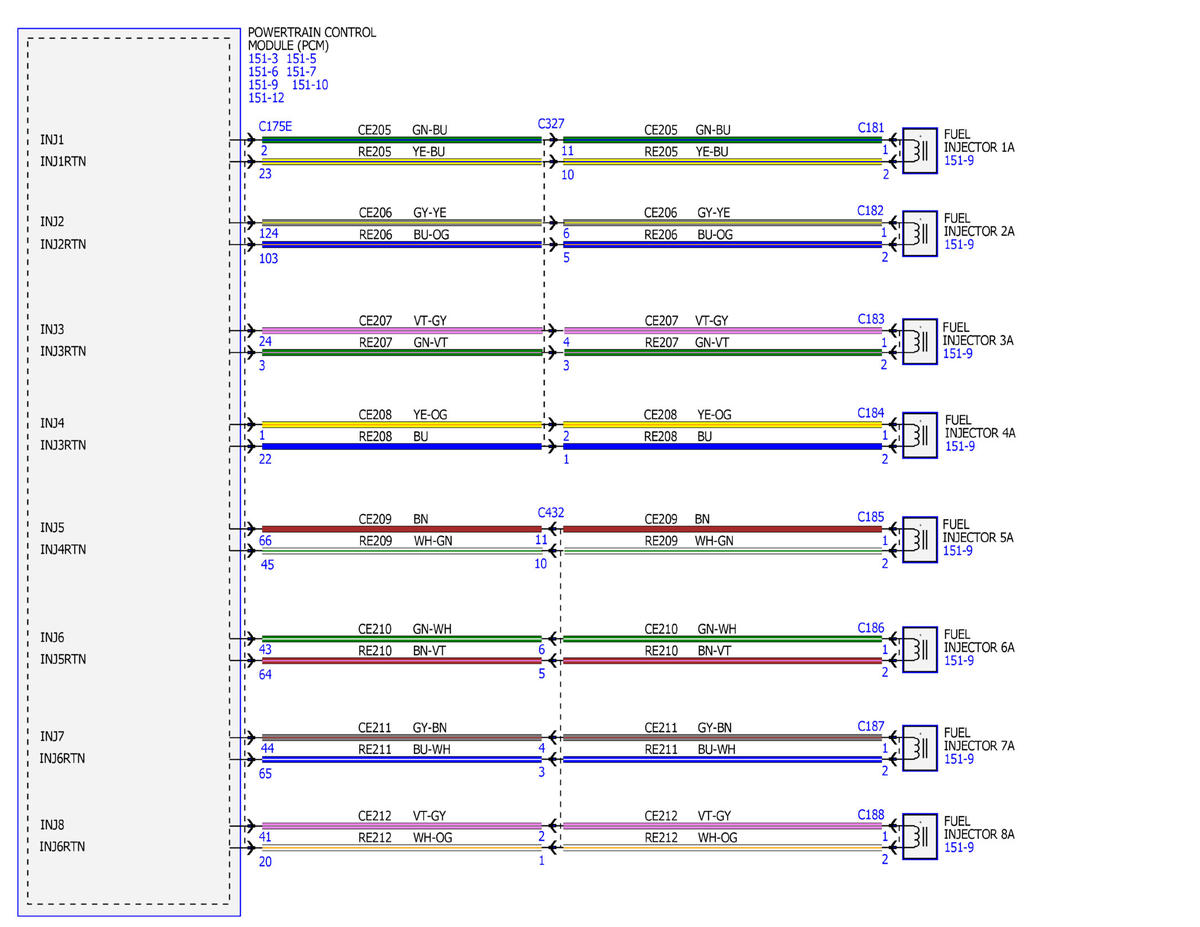

Fig 3: Electronic Engine Controls - 5.0L Wiring Diagram (3 of 18)

Courtesy of FORD MOTOR COMPANY

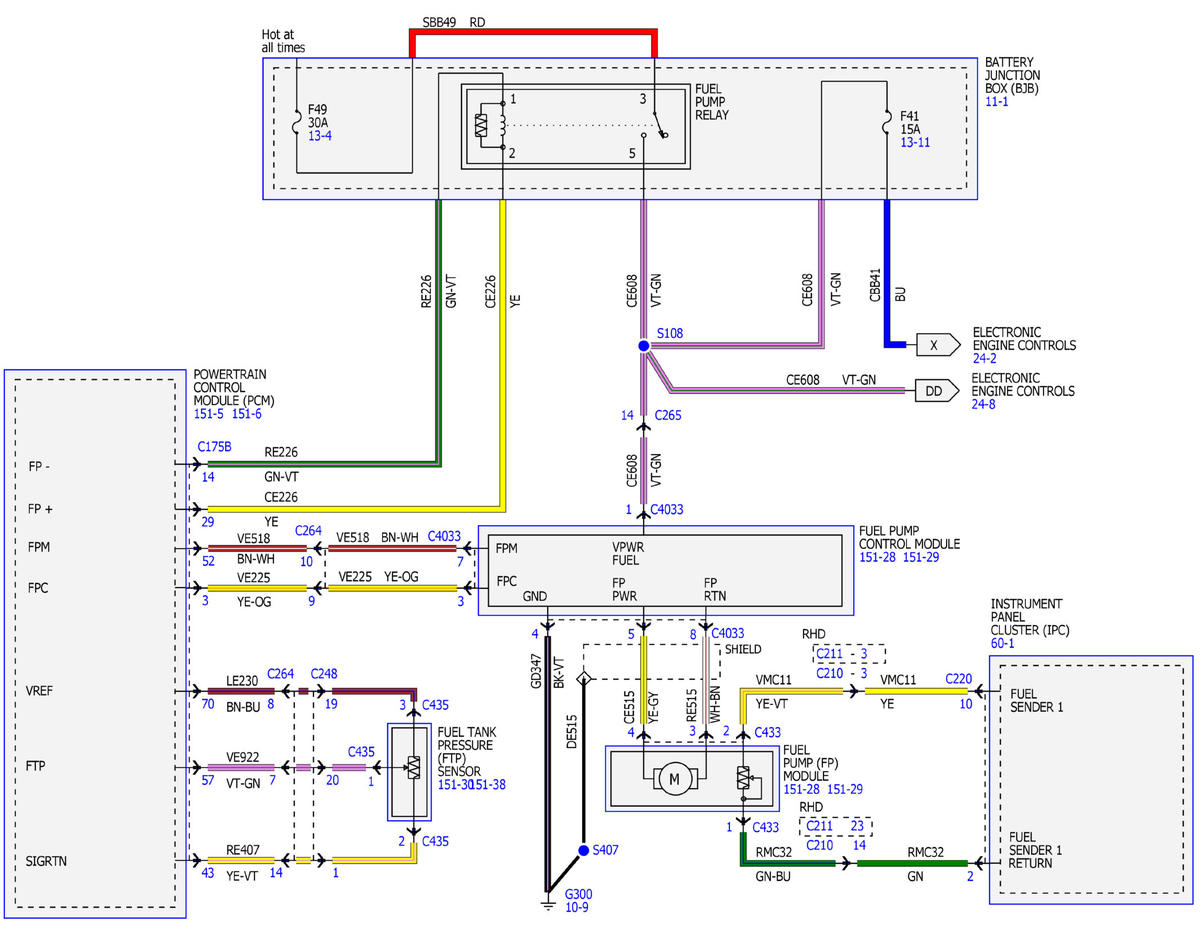

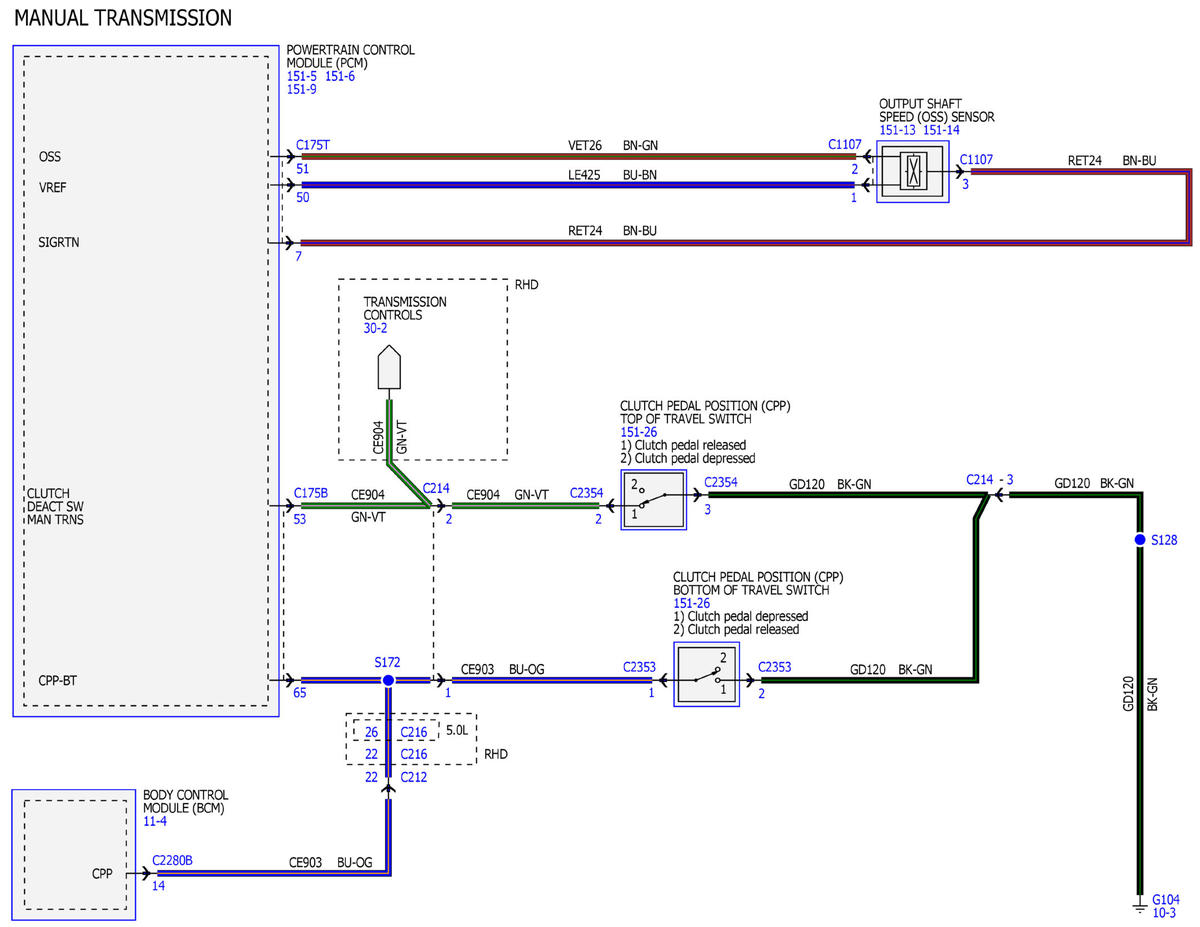

Fig 4: Electronic Engine Controls - 5.0L Wiring Diagram (4 of 18)

Courtesy of FORD MOTOR COMPANY

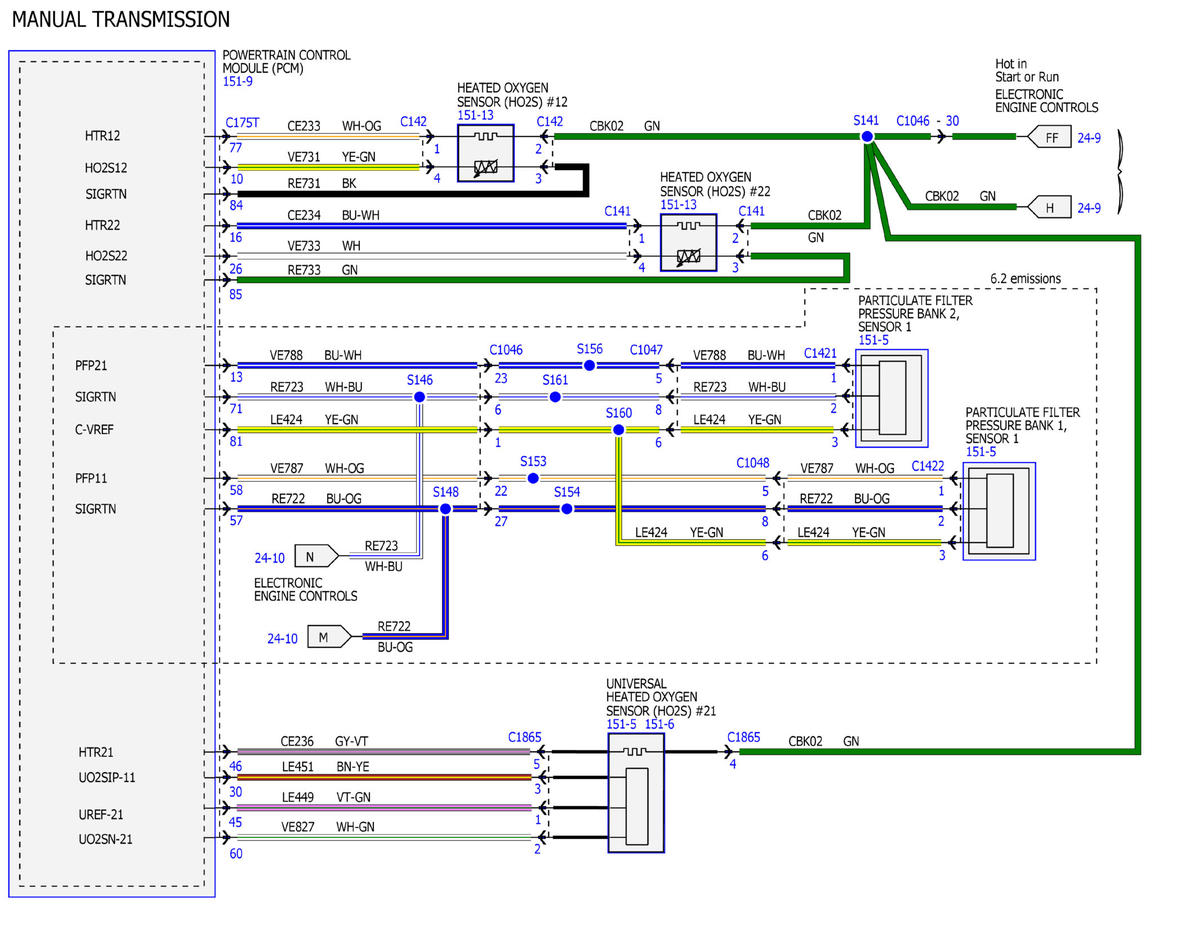

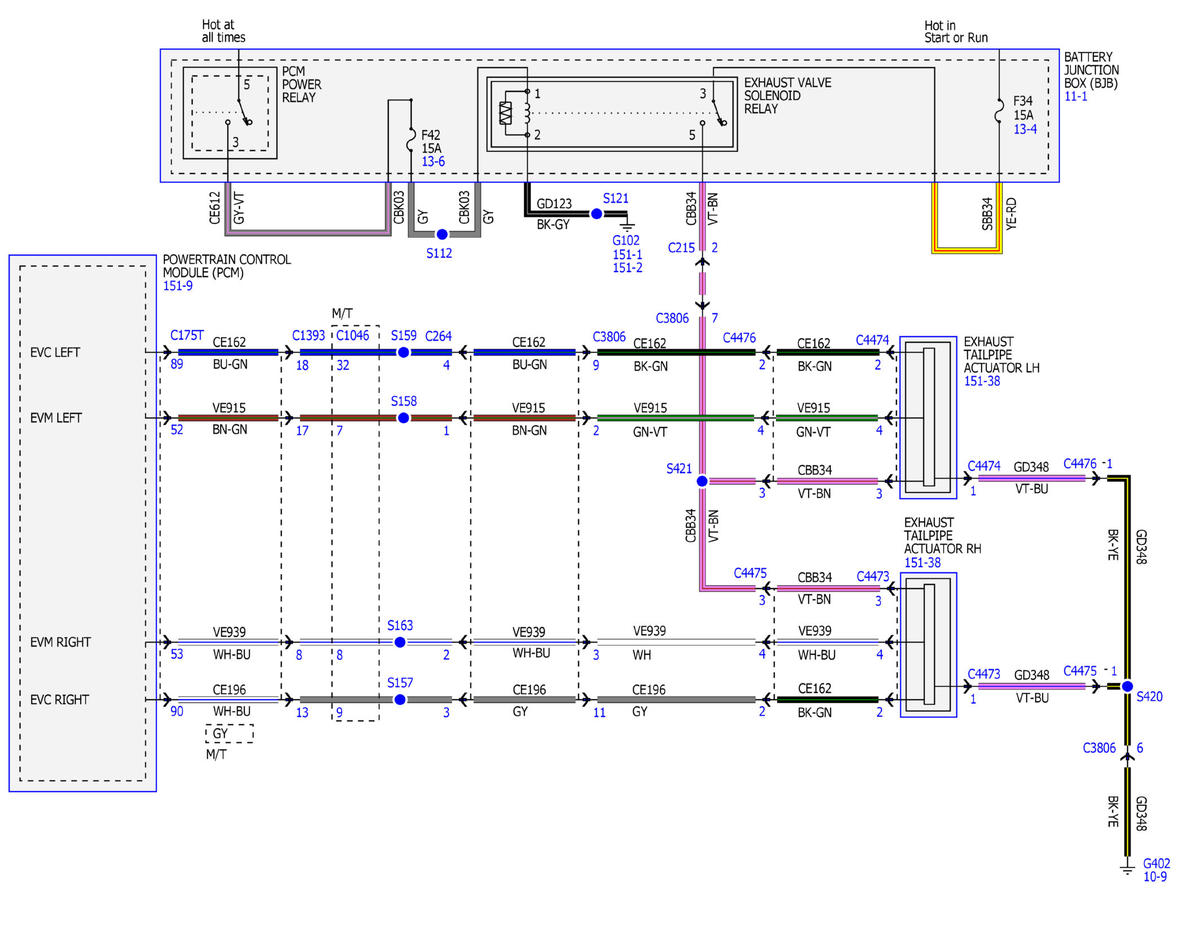

Fig 5: Electronic Engine Controls - 5.0L Wiring Diagram (5 of 18)

Courtesy of FORD MOTOR COMPANY

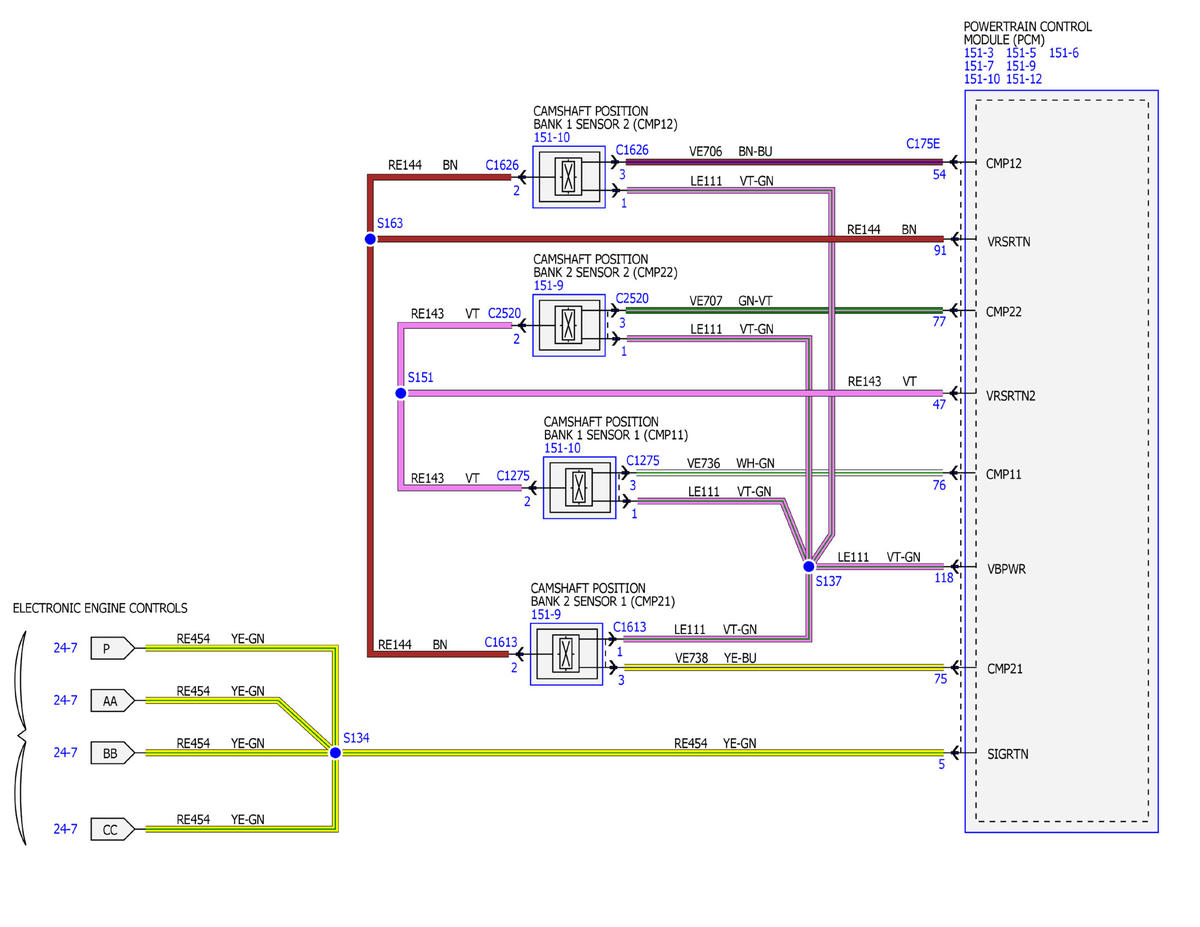

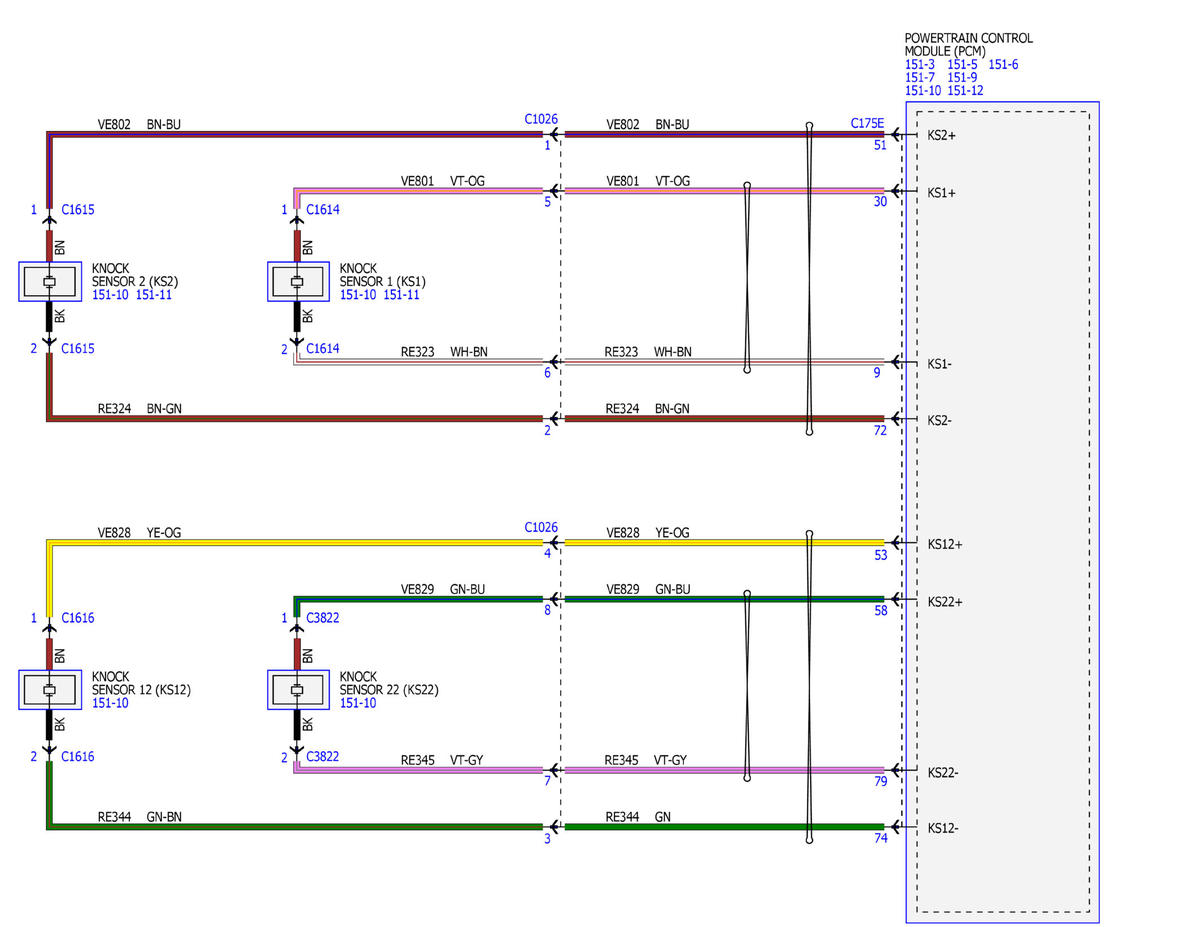

Fig 6: Electronic Engine Controls - 5.0L Wiring Diagram (6 of 18)

Courtesy of FORD MOTOR COMPANY

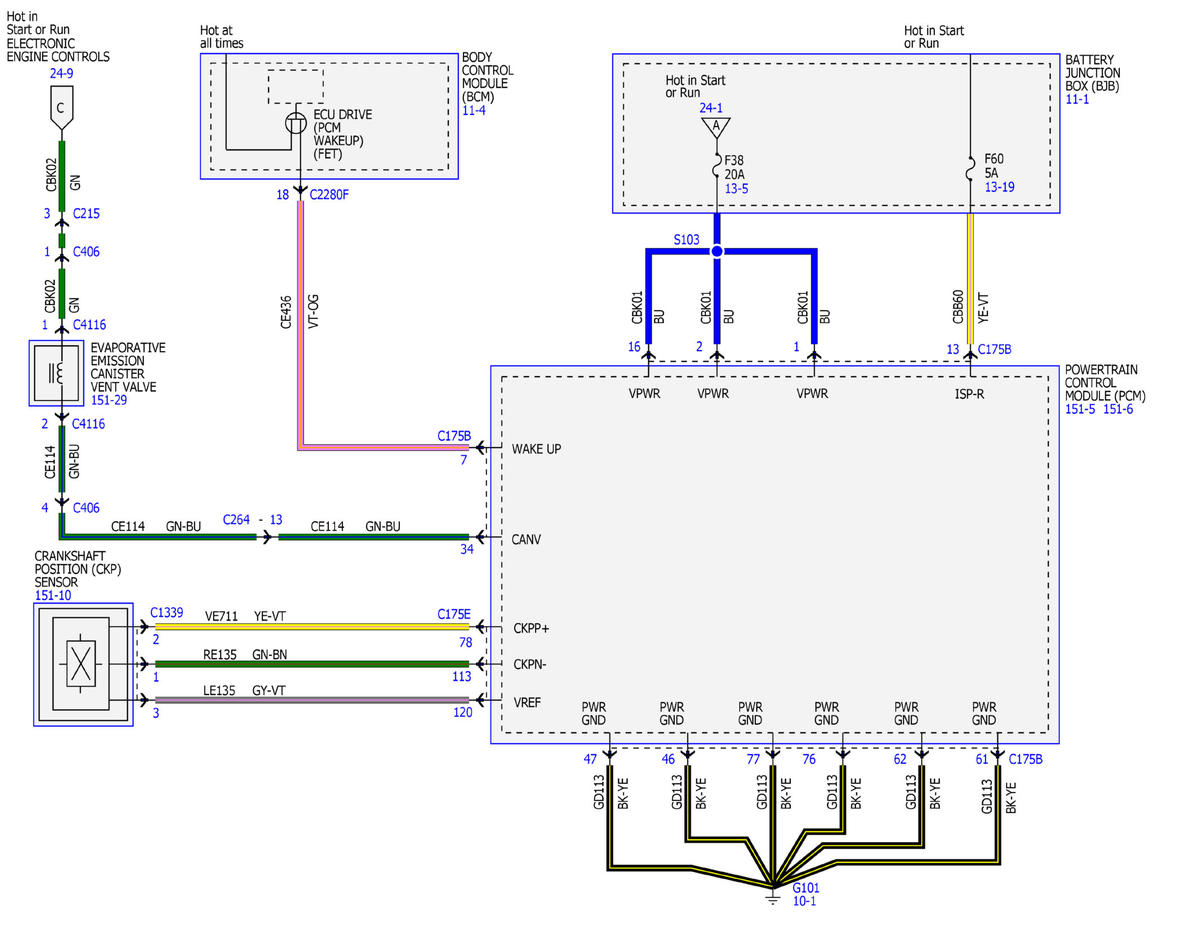

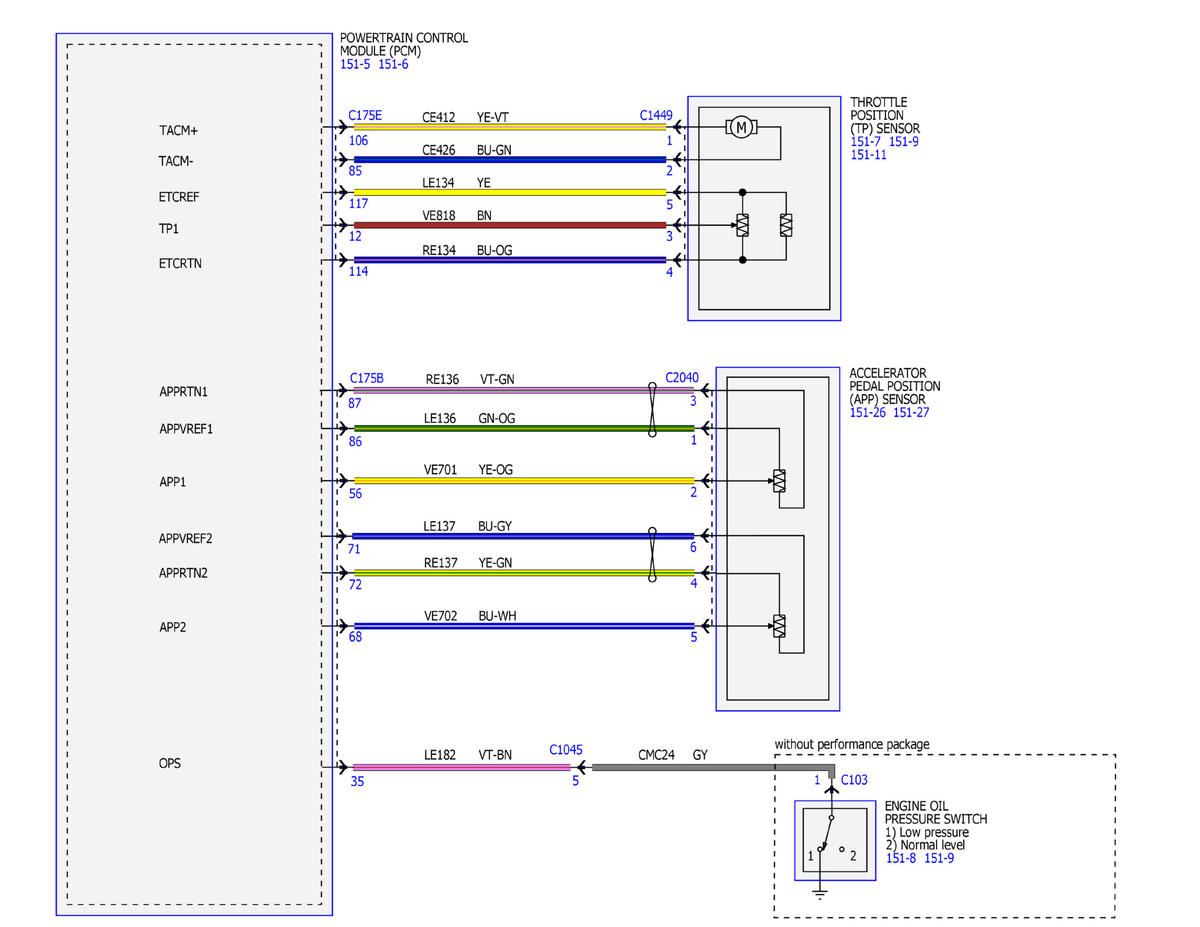

Fig 7: Electronic Engine Controls - 5.0L Wiring Diagram (7 of 18)

Courtesy of FORD MOTOR COMPANY

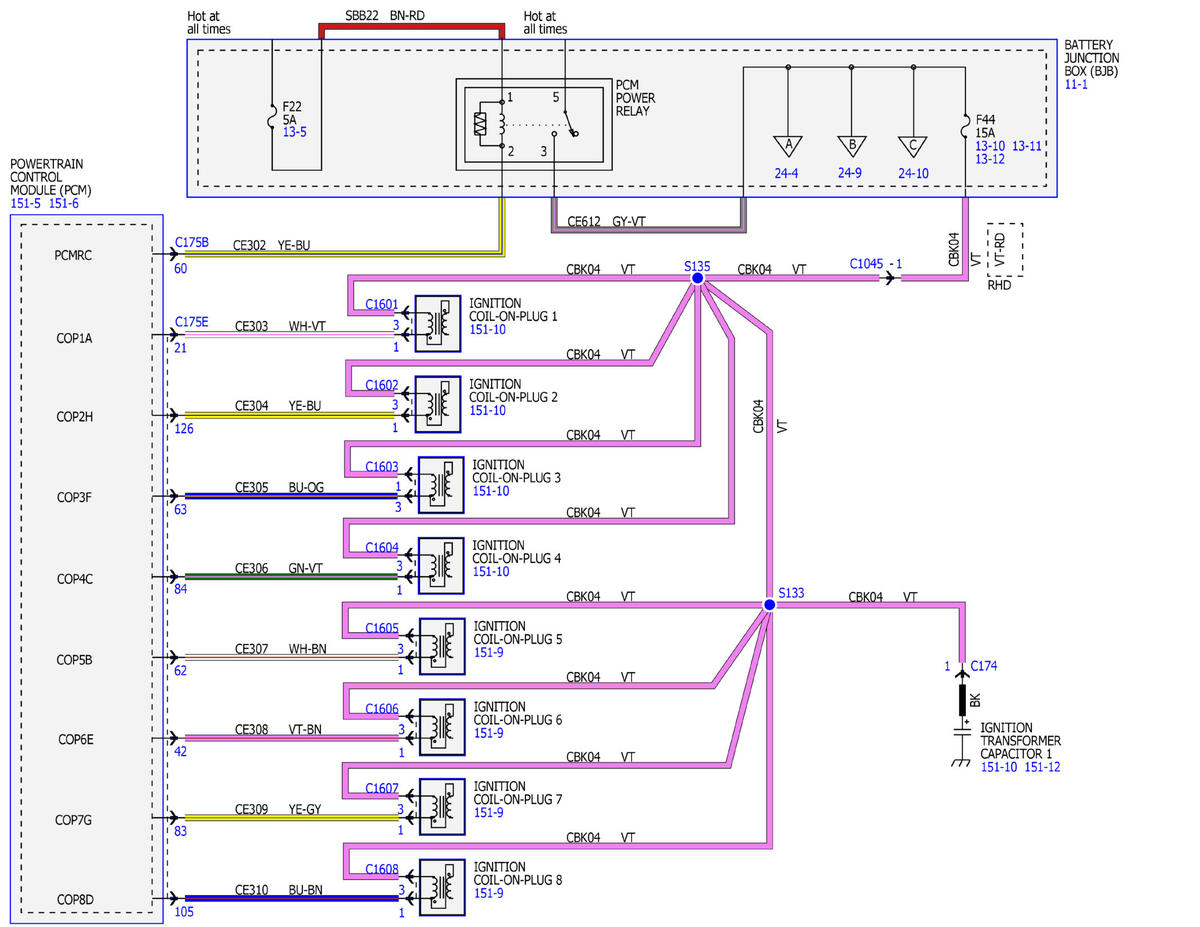

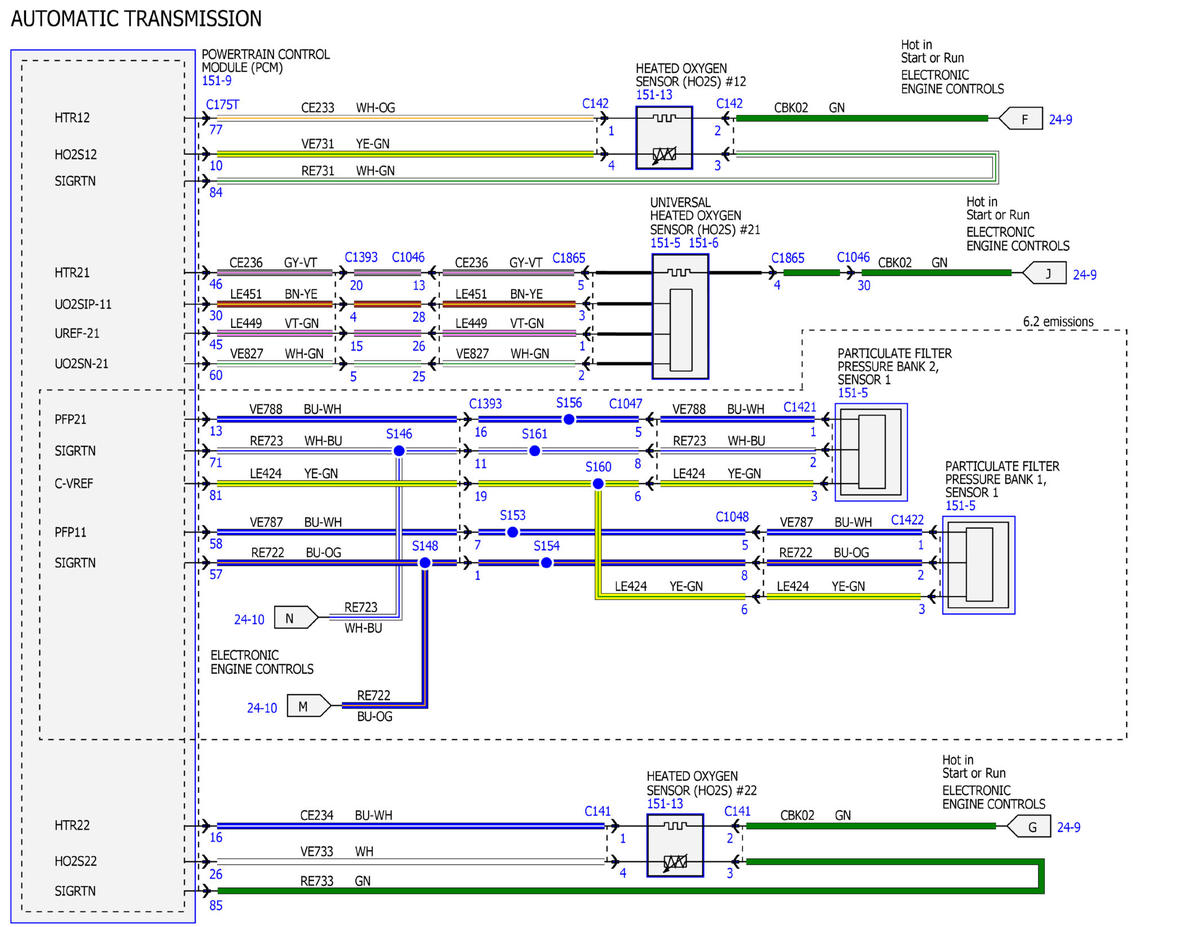

Fig 8: Electronic Engine Controls - 5.0L Wiring Diagram (8 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 5.0L Wiring Diagram (9 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 5.0L Wiring Diagram (10 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 5.0L Wiring Diagram (11 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 5.0L Wiring Diagram (12 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls - 5.0L Wiring Diagram (13 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 14: Electronic Engine Controls - 5.0L Wiring Diagram (14 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 15: Electronic Engine Controls - 5.0L Wiring Diagram (15 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 16: Electronic Engine Controls - 5.0L Wiring Diagram (16 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 17: Electronic Engine Controls - 5.0L Wiring Diagram (17 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 18: Electronic Engine Controls - 5.0L Wiring Diagram (18 of 18)

Courtesy of FORD MOTOR COMPANY
