Audio System/Navigation - Am/Fm/Sync/Touchscreen Display

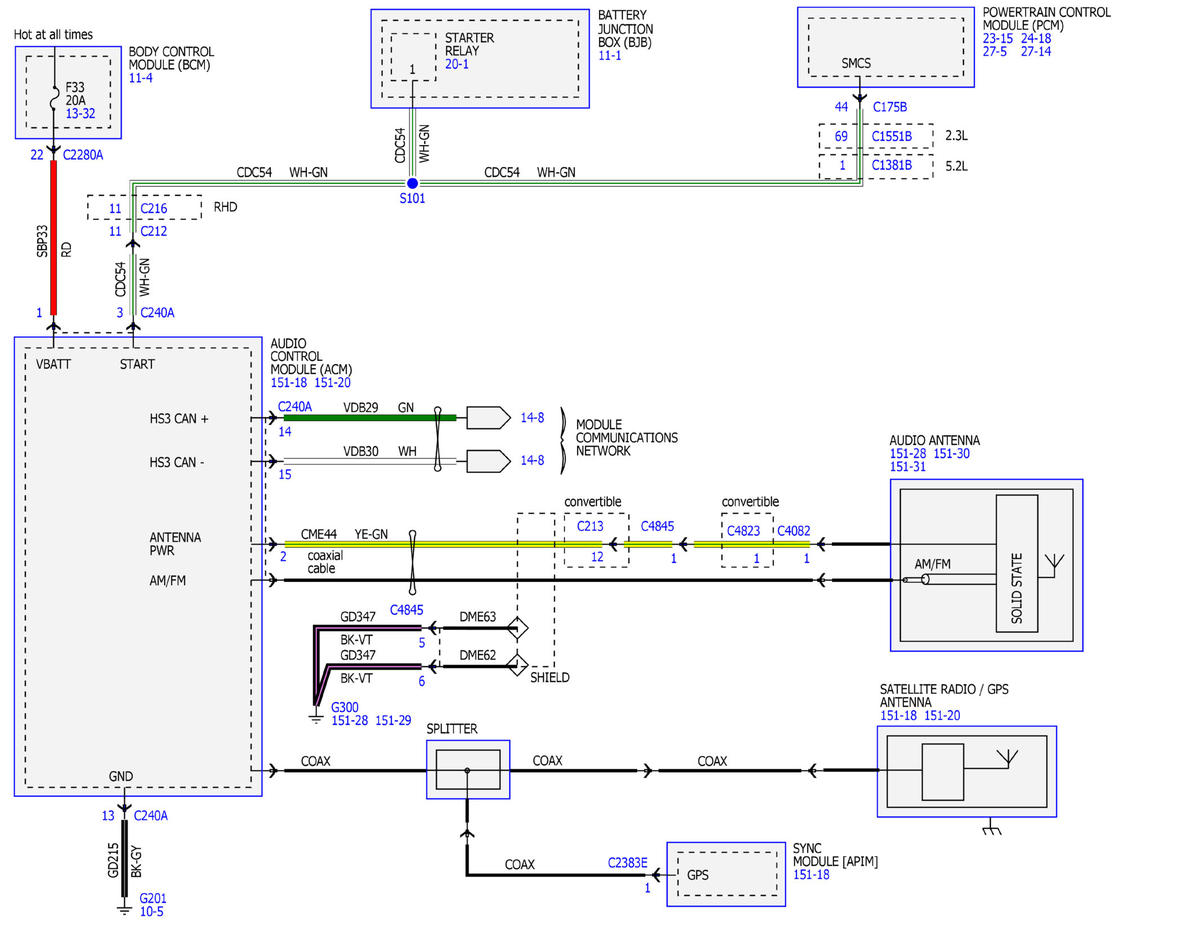

Fig 1: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

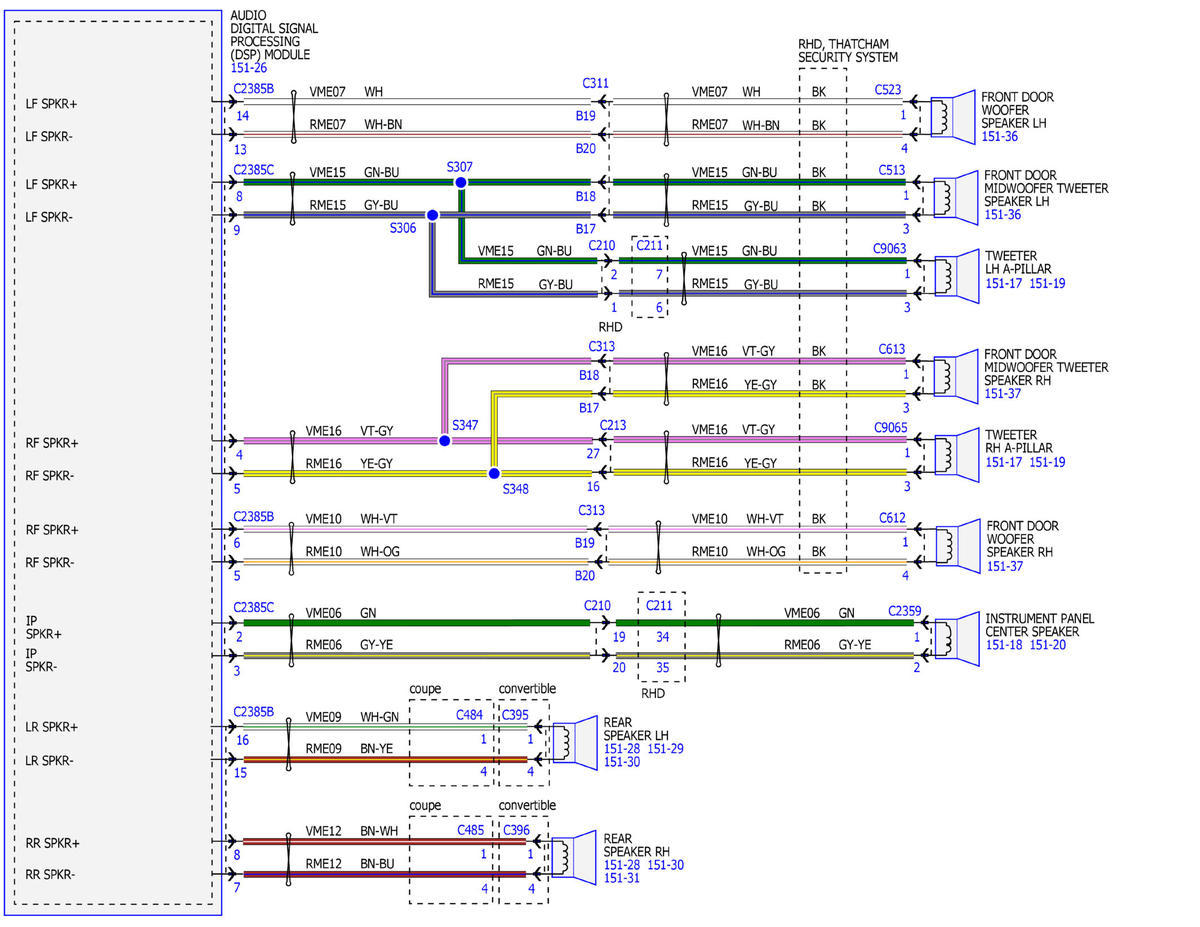

Fig 2: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (2 of 14)

Courtesy of FORD MOTOR COMPANY

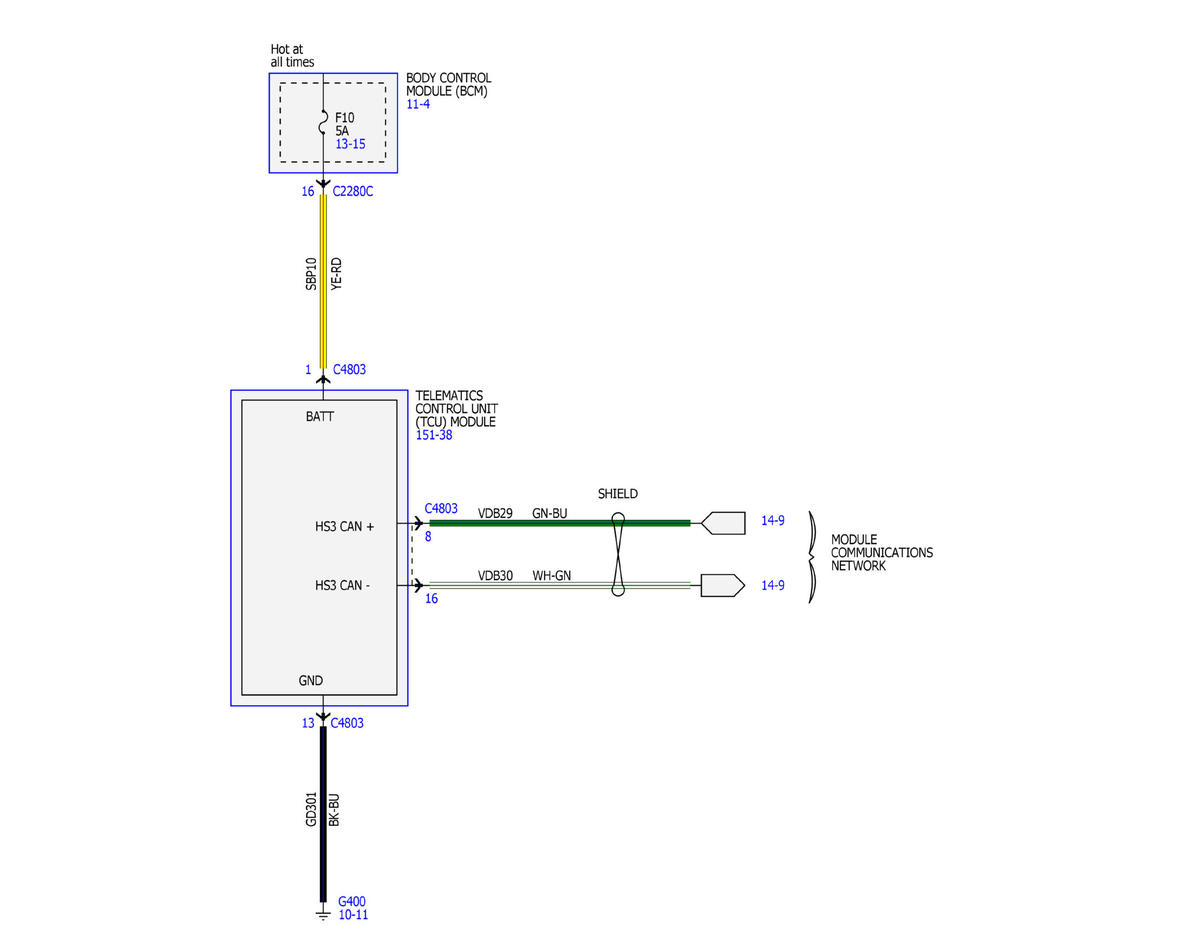

Fig 3: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (3 of 14)

Courtesy of FORD MOTOR COMPANY

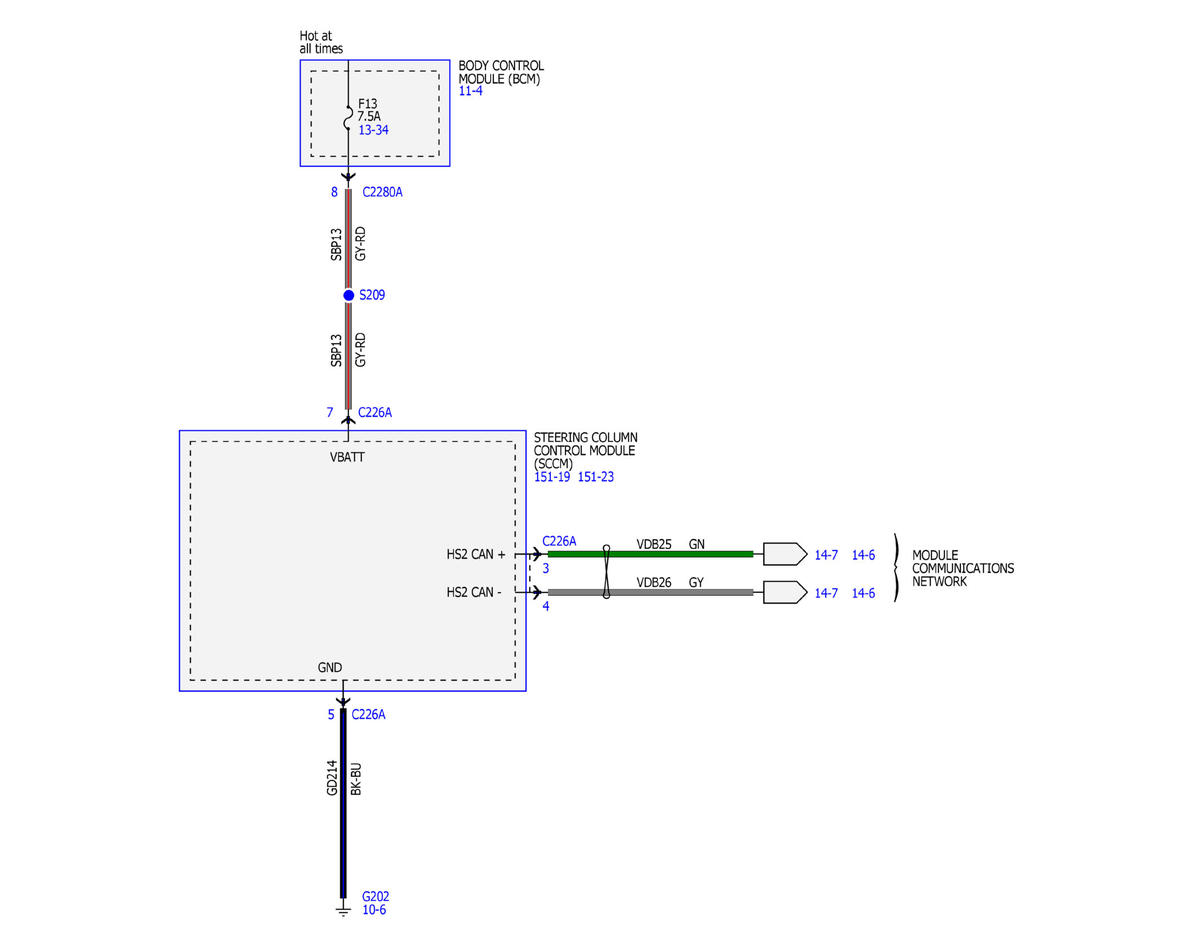

Fig 4: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (4 of 14)

Courtesy of FORD MOTOR COMPANY

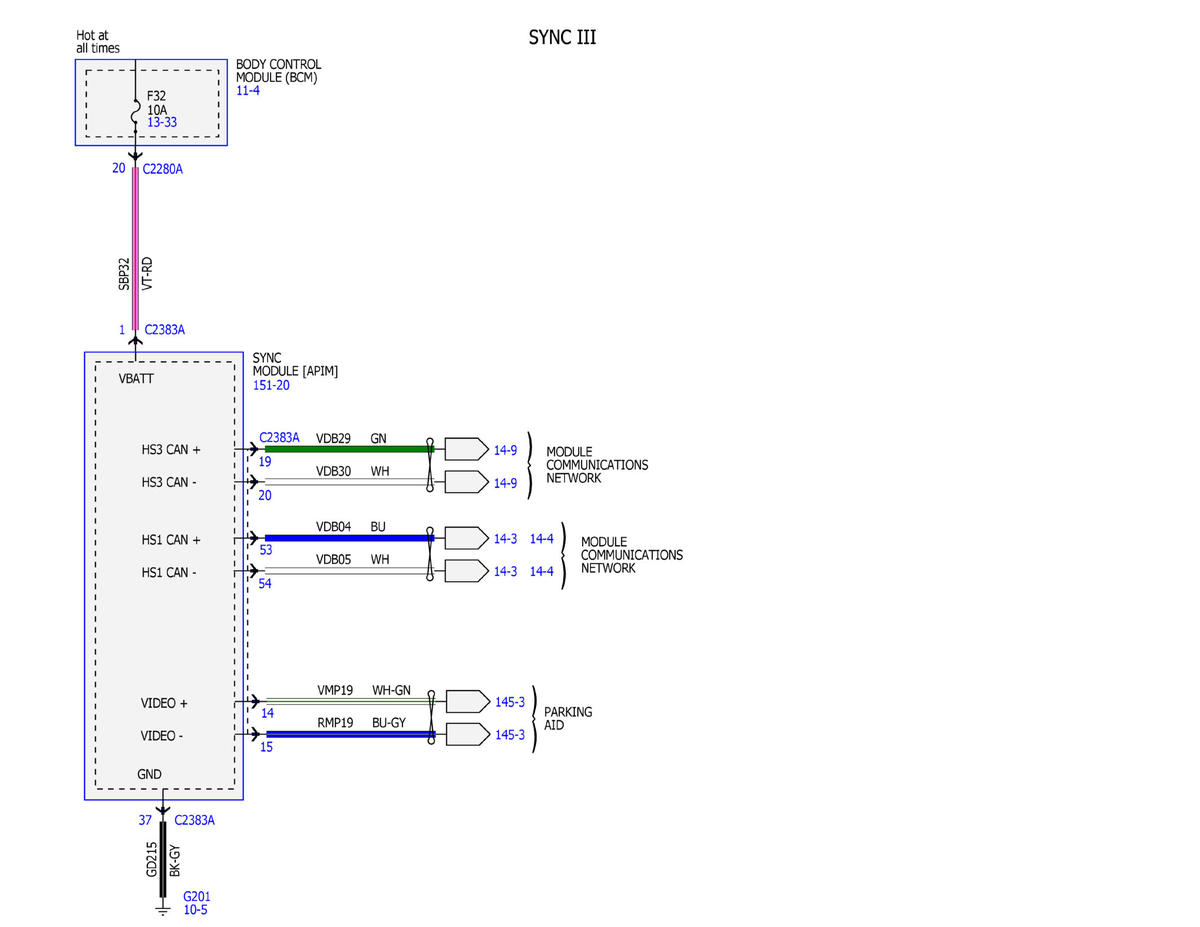

Fig 5: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (5 of 14)

Courtesy of FORD MOTOR COMPANY

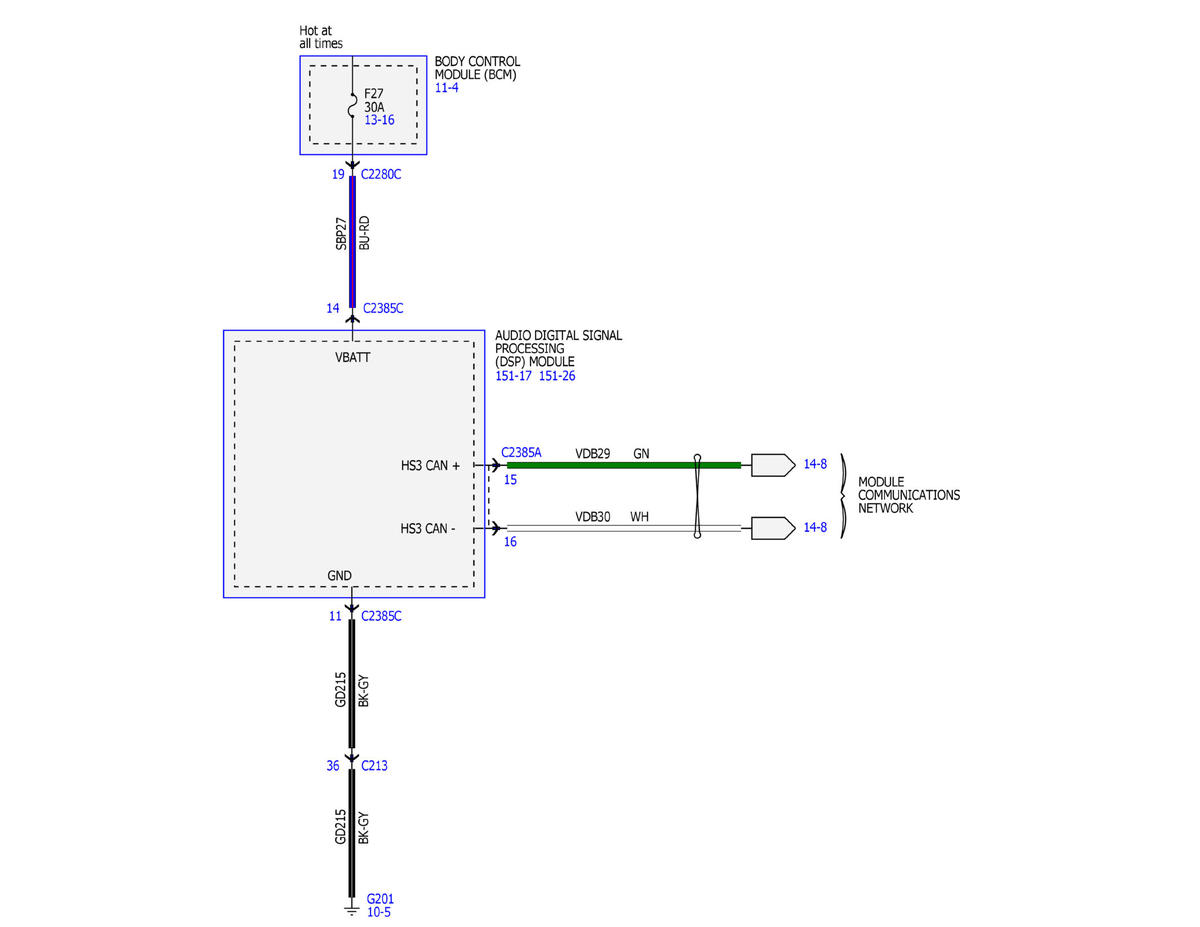

Fig 6: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (6 of 14)

Courtesy of FORD MOTOR COMPANY

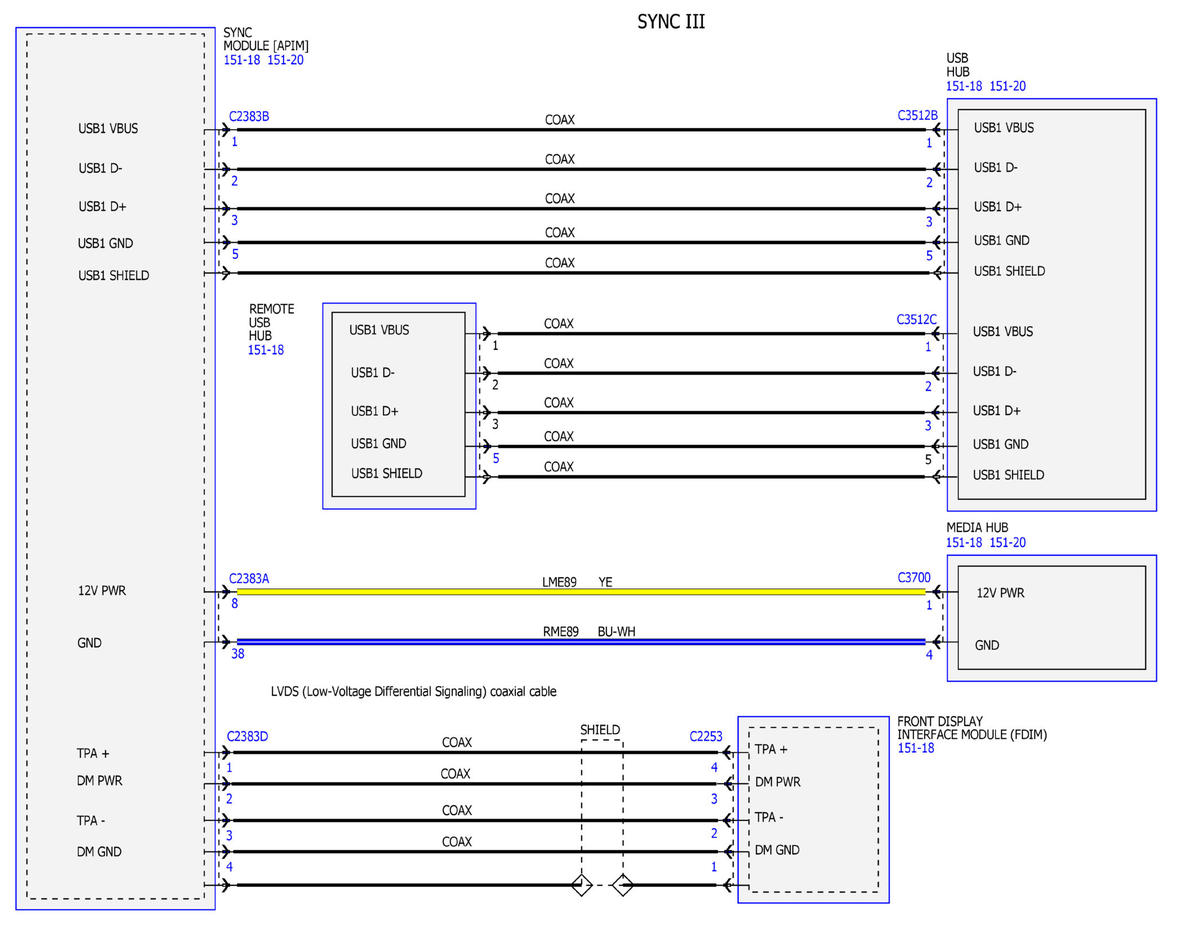

Fig 7: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (7 of 14)

Courtesy of FORD MOTOR COMPANY

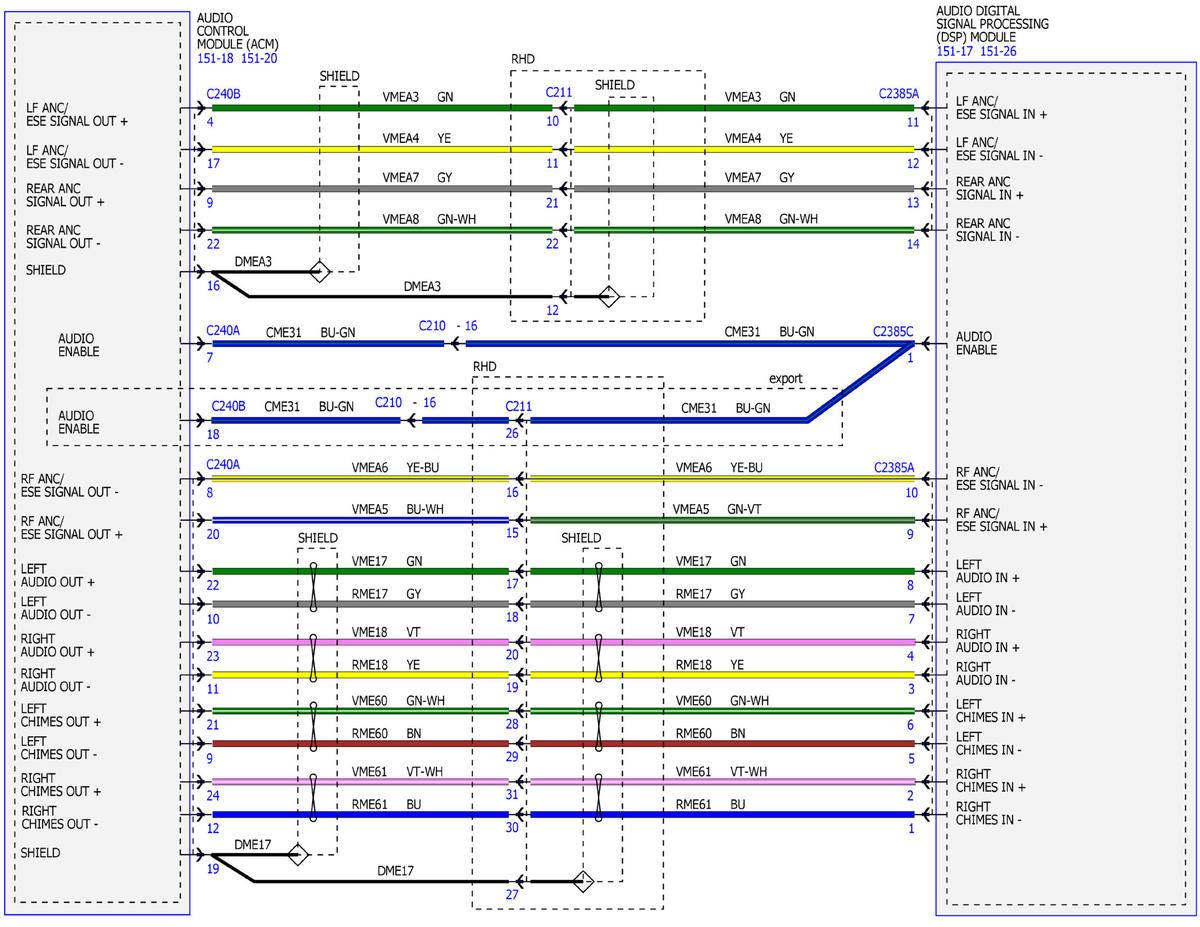

Fig 8: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (8 of 14)

Courtesy of FORD MOTOR COMPANY

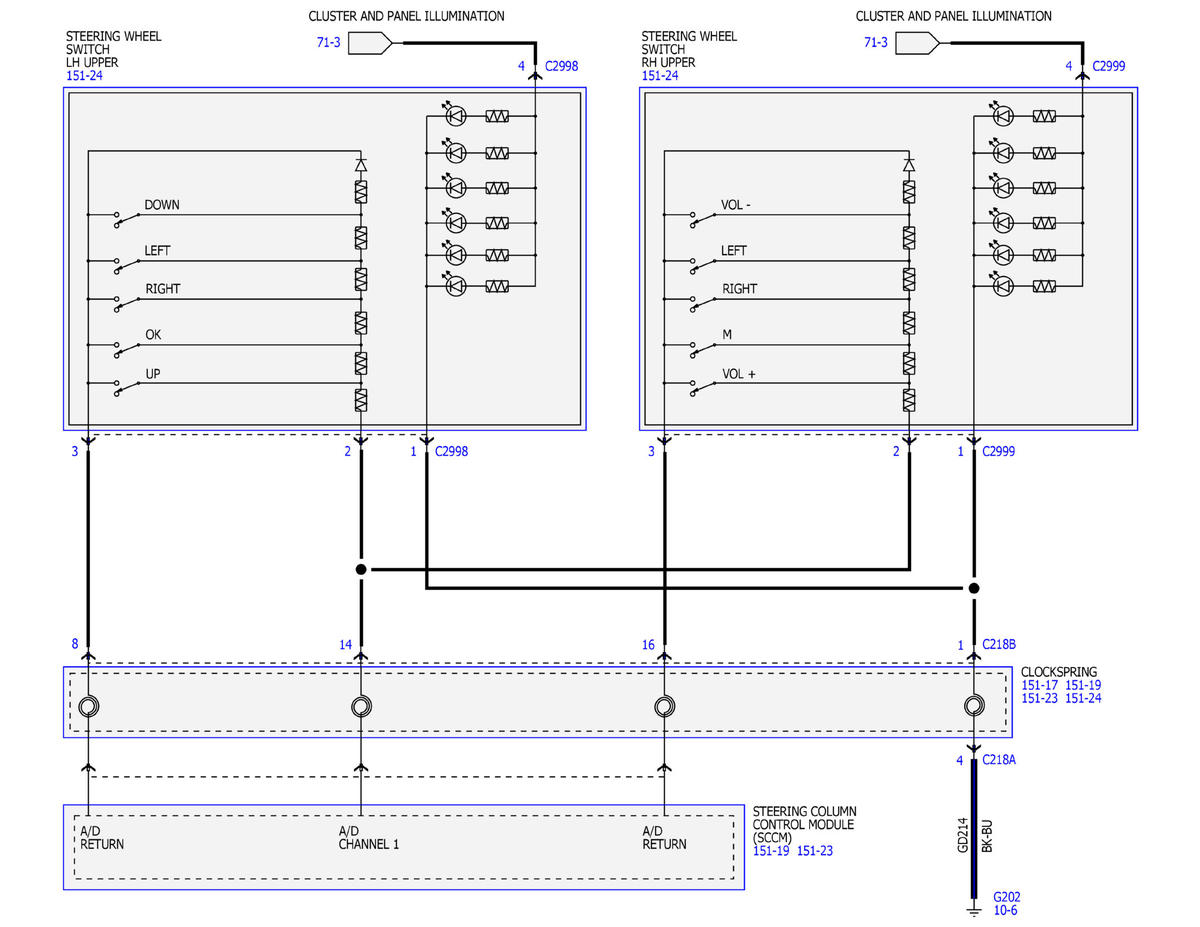

Fig 9: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (9 of 14)

Courtesy of FORD MOTOR COMPANY

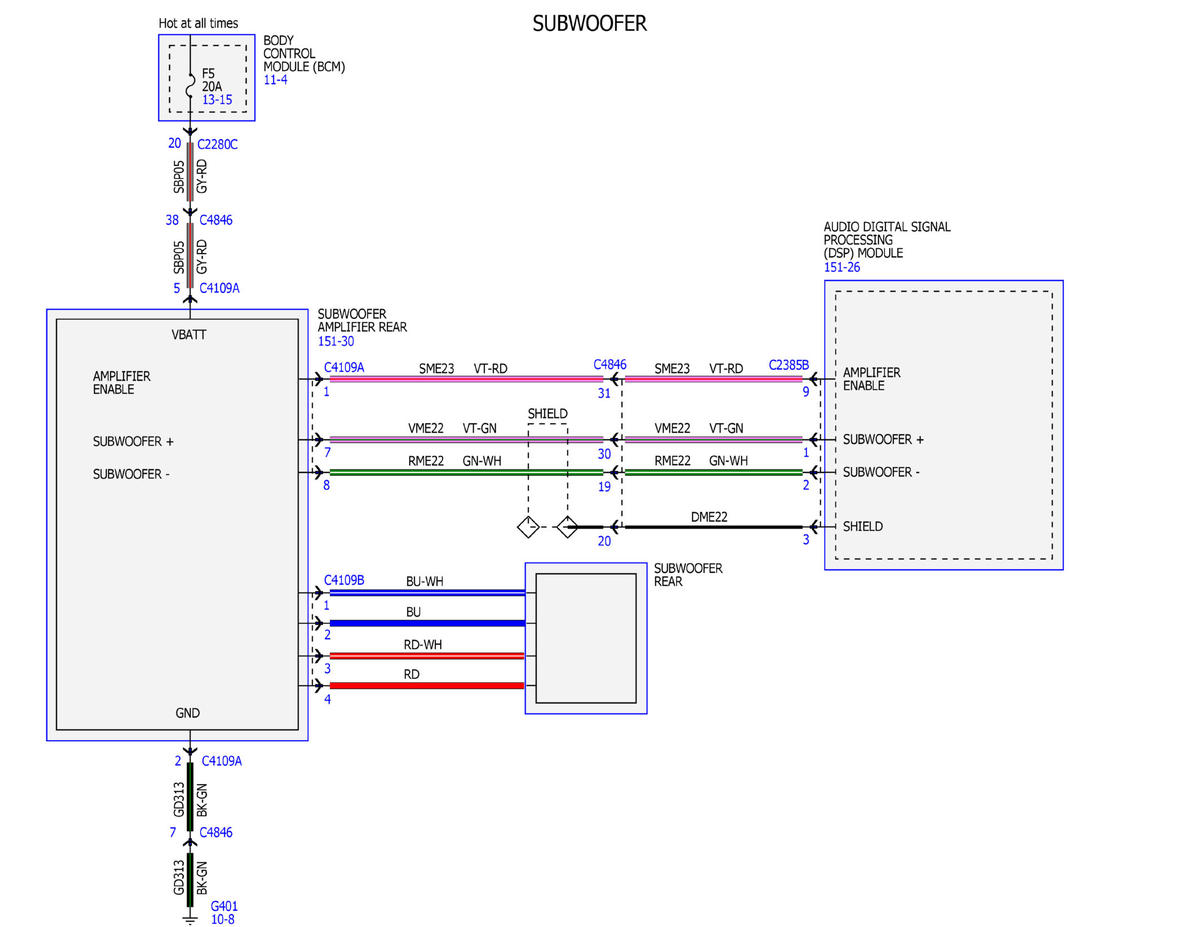

Fig 10: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (10 of 14)

Courtesy of FORD MOTOR COMPANY

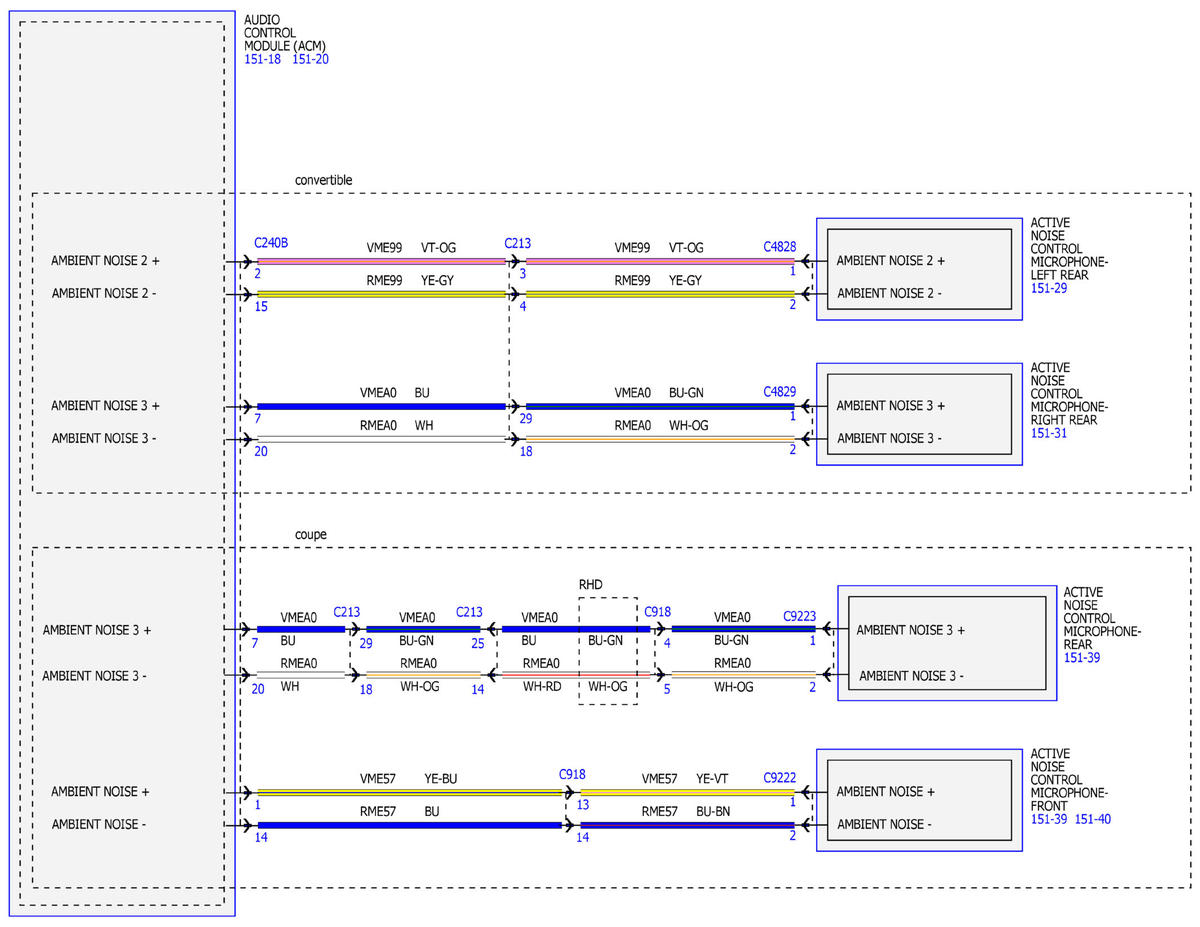

Fig 11: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (11 of 14)

Courtesy of FORD MOTOR COMPANY

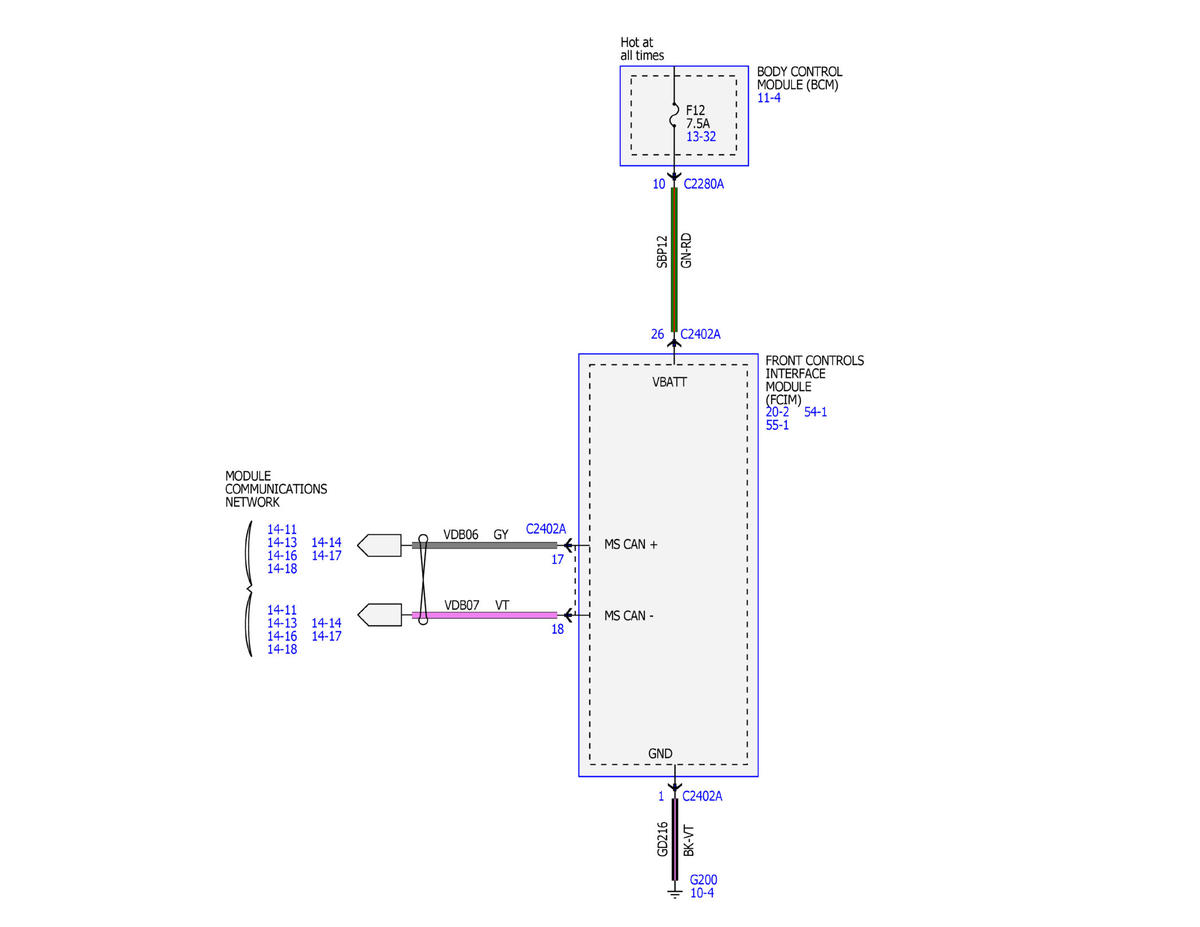

Fig 12: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (12 of 14)

Courtesy of FORD MOTOR COMPANY

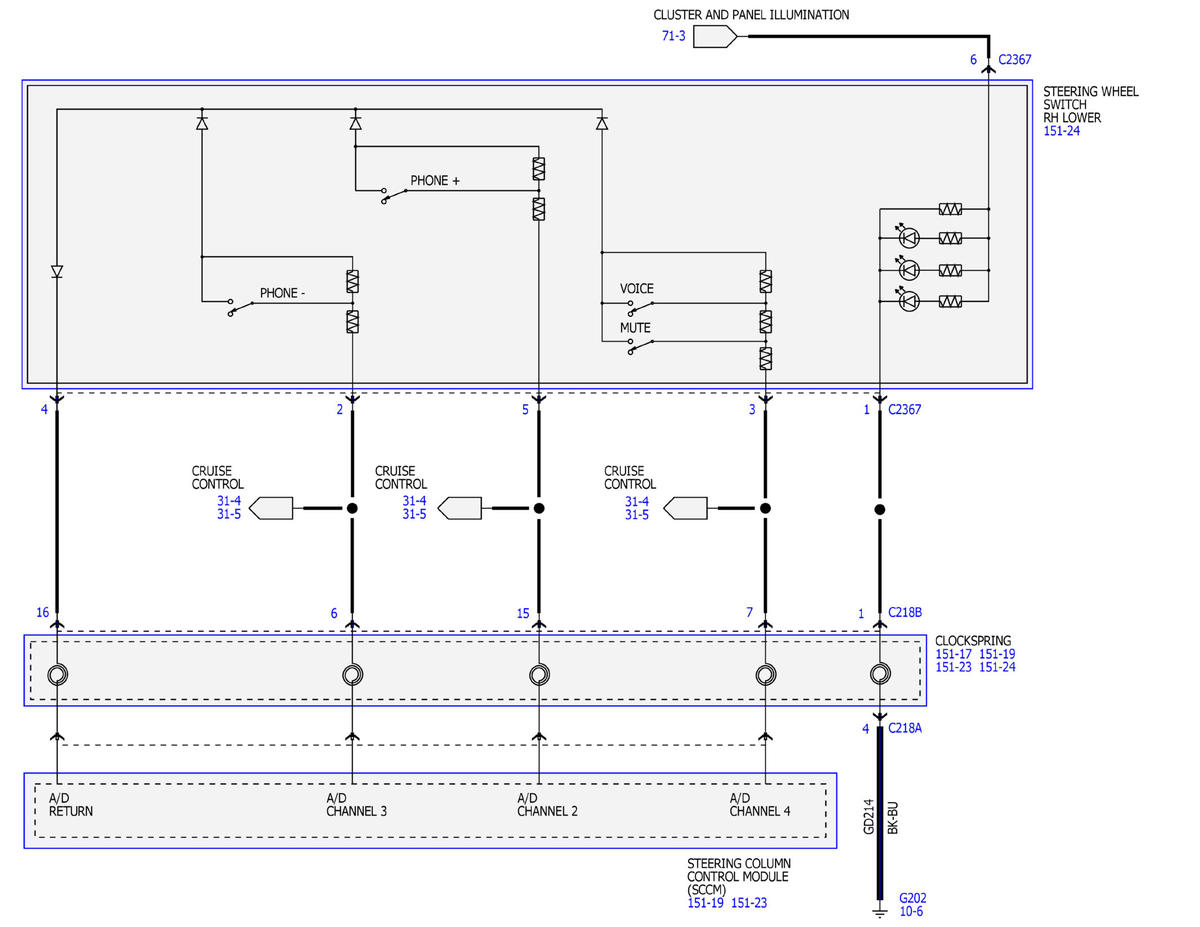

Fig 13: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (13 of 14)

Courtesy of FORD MOTOR COMPANY

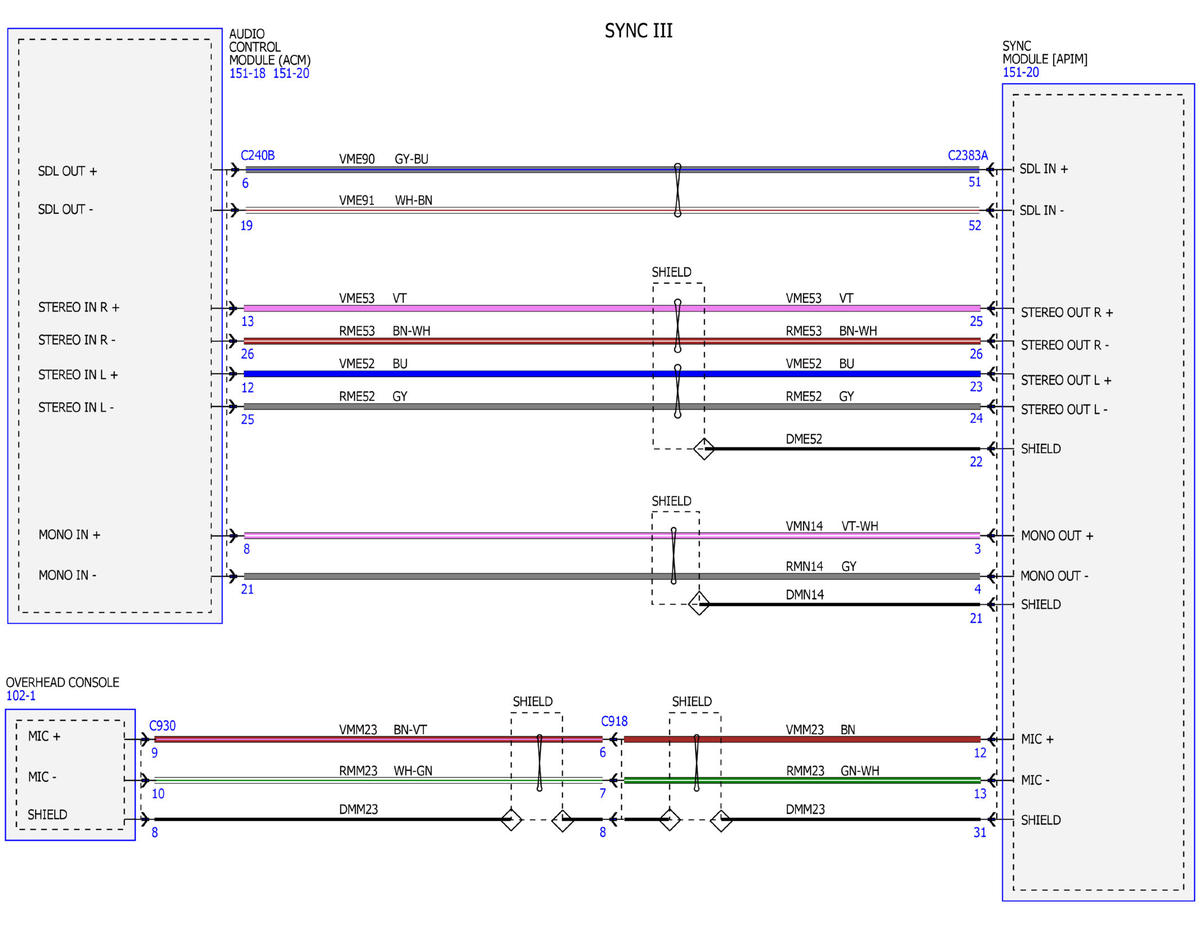

Fig 14: Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (14 of 14)

Courtesy of FORD MOTOR COMPANY
