Fuse And Relay Location

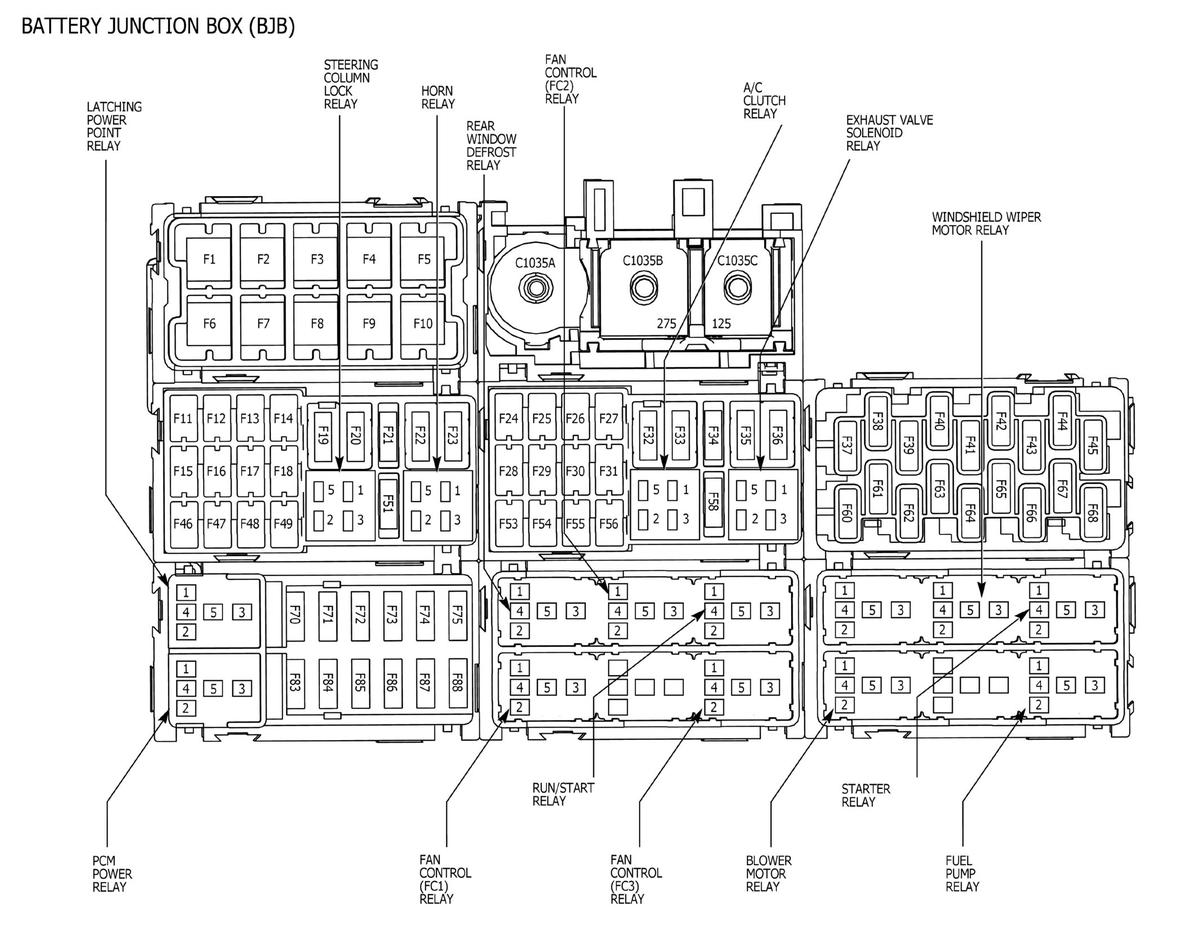

Fig 1: Battery Junction Box (BJB) Component Location
GFDWR10797Courtesy of FORD MOTOR COMPANY

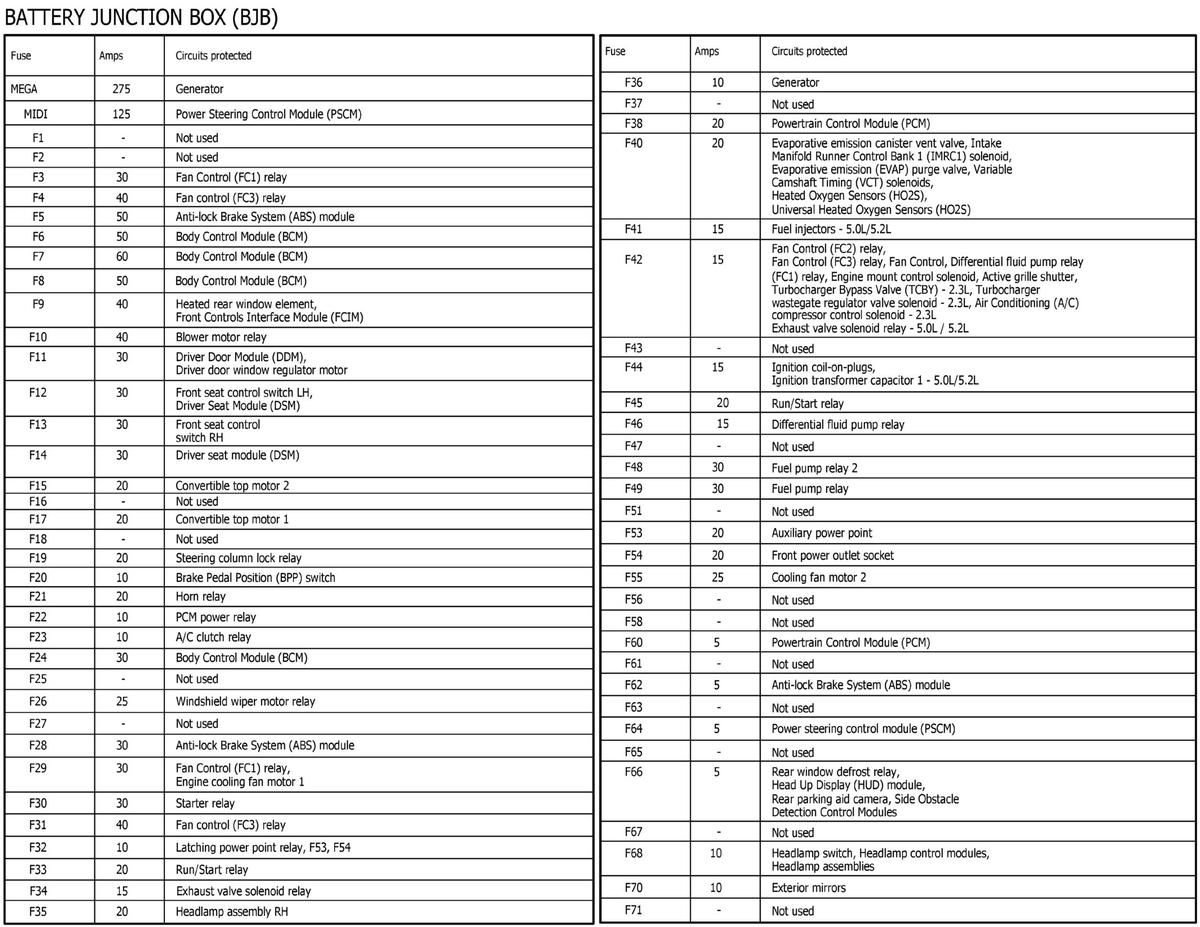

Fig 2: Battery Junction Box (BJB) Component Location Legend (1 of 2)
GFDWR10795Courtesy of FORD MOTOR COMPANY

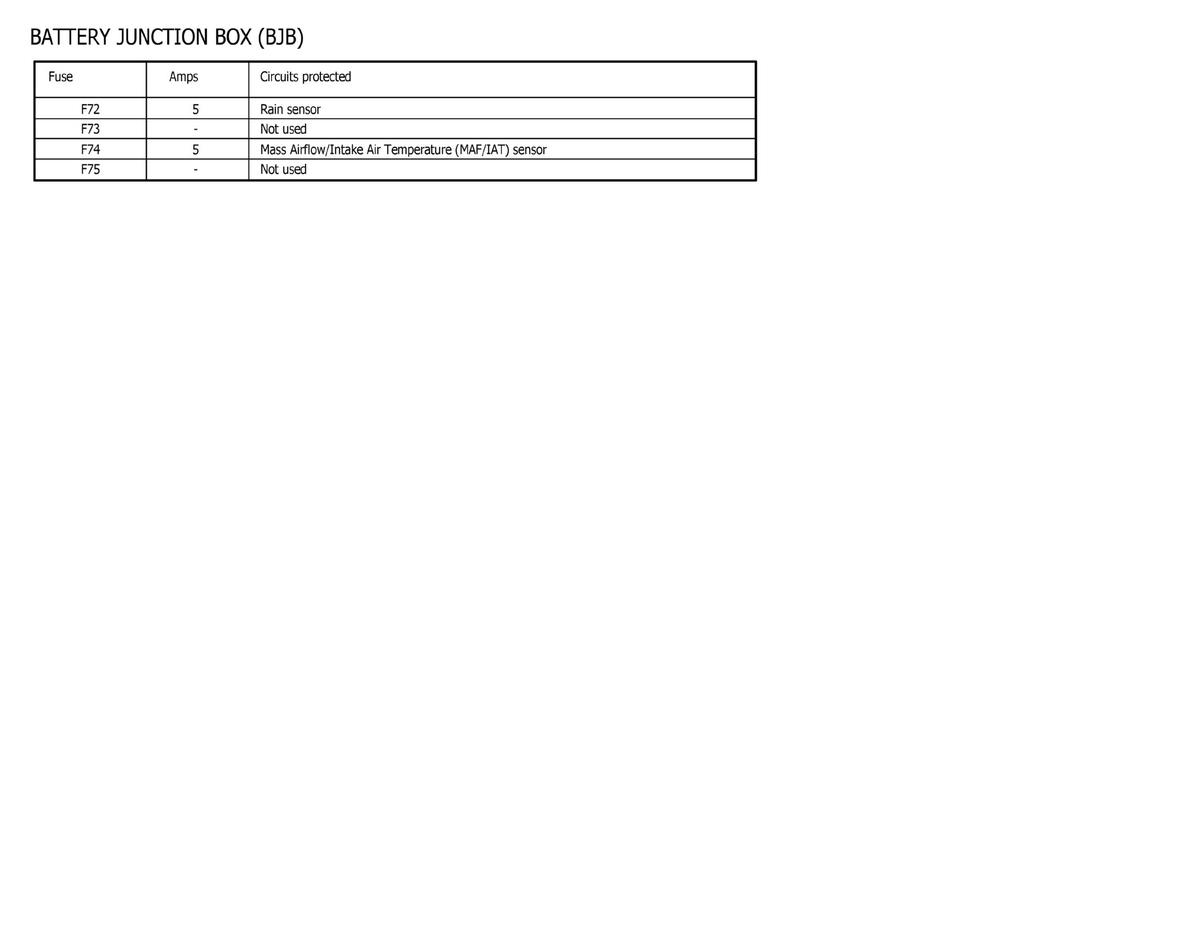

Fig 3: Battery Junction Box (BJB) Component Location Legend (2 of 2)
GFDWR10796Courtesy of FORD MOTOR COMPANY

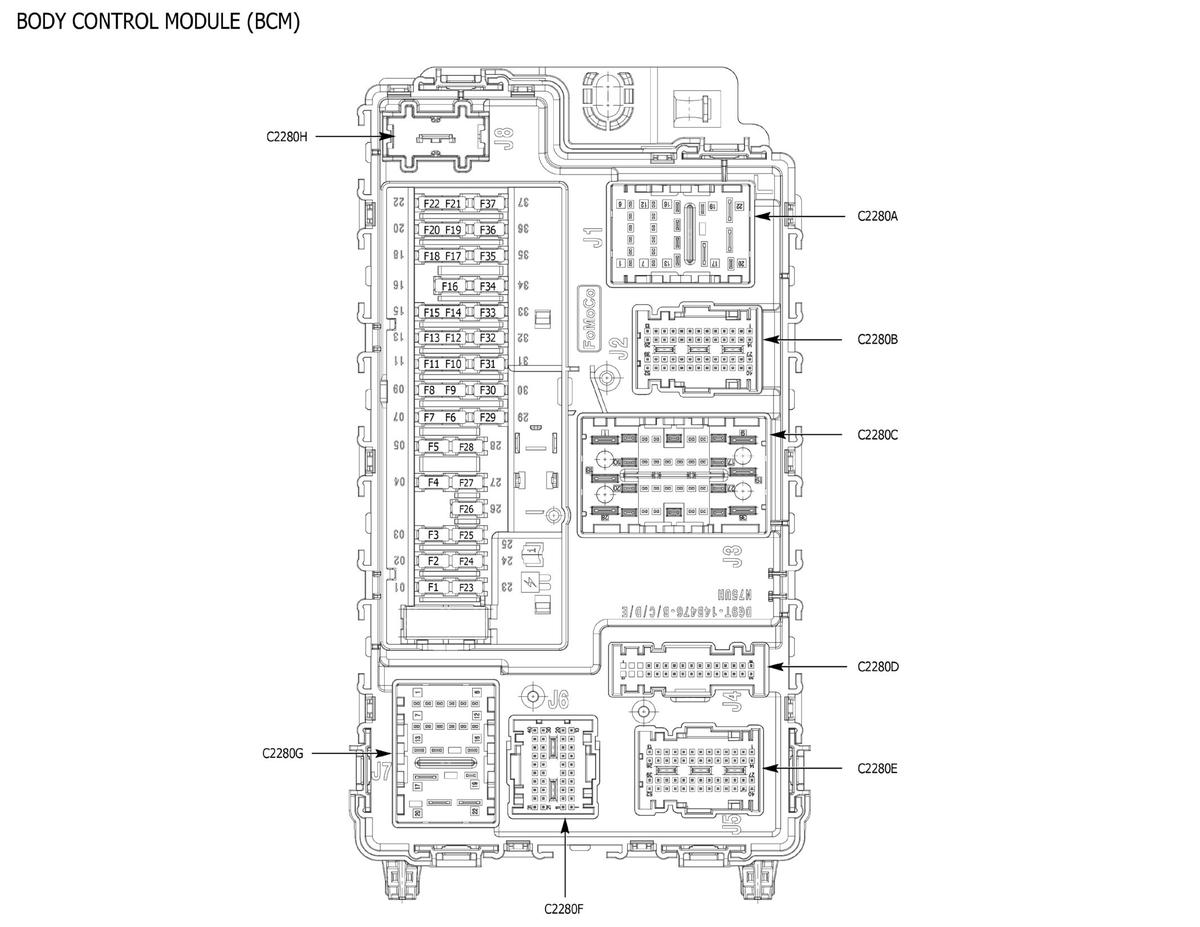

Fig 4: Body Control Module (BCM) Component Location
GFDWR10798Courtesy of FORD MOTOR COMPANY

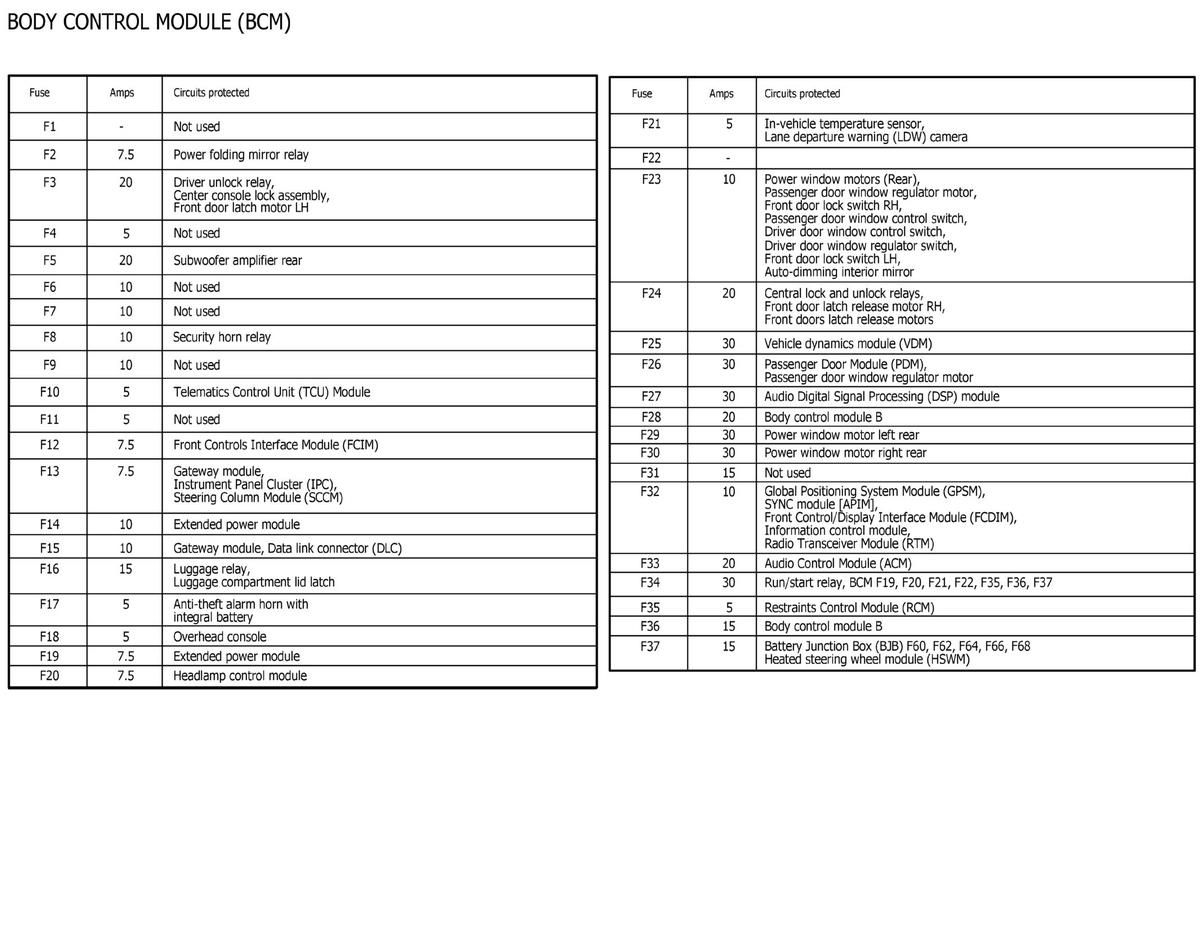

Fig 5: Body Control Module (BCM) Component Location Legend
GFDWR10799Courtesy of FORD MOTOR COMPANY
