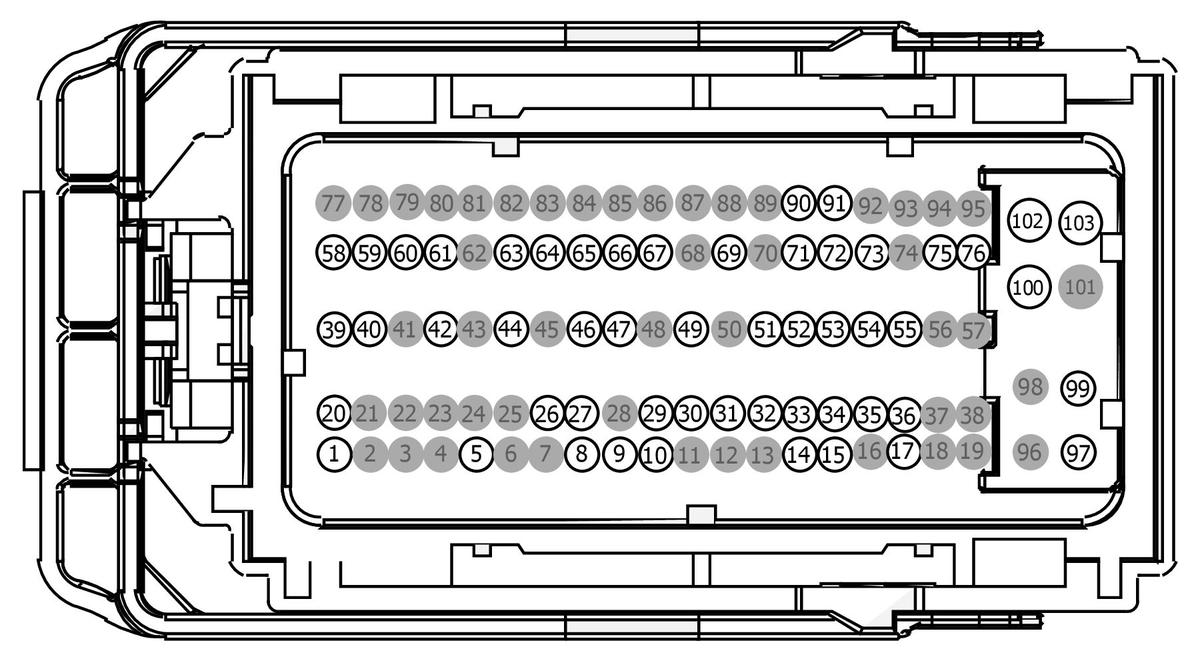

Connector End View (C1381B) - POWERTRAIN CONTROL MODULE (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1381B	POWERTRAIN CONTROL MODULE (PCM)	14290			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-AA	DU2Z-14474-CA	0.64
BU5T-14474-BA	DU2Z-14474-CA	0.64
7C3T-14474-EA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CDC54 (WH-GN)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)	BU5T-14474-AA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	GD113 (BK-YE)	18	GROUND - COWL TOP RIGHT	BU5T-14474-BA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	CE904 (GN-VT)	22	SWITCH - CLUTCH PEDAL POSITION # TOP OF TRAVEL (CPP-TT)	BU5T-14474-AA
9	CE903 (BU-OG)	22	SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT)	BU5T-14474-AA
10	CEC01 (WH-BU)	20	CTRL MOD. - COOLING FAN CONTROL HIGH (FC)	BU5T-14474-AA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
13	CDC10 (BU-OG)	20	CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC)	BU5T-14474-AA
14	VE225 (YE-OG)	22	CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)	BU5T-14474-AA
15	CH302 (WH-BN)	20	CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)	BU5T-14474-AA
16	*	*	Not Used	N/A
17	CEC02 (GN-BU)	20	CTRL MOD. - COOLING FAN CONTROL LOW (FC)	BU5T-14474-AA
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	CE302 (YE-BU)	20	CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC)	BU5T-14474-AA
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	CDC15 (VT)	20	GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI)	BU5T-14474-AA
27	VE518 (BN-WH)	22	MONITOR - FUEL PUMP (FPM)	BU5T-14474-AA
28	*	*	Not Used	N/A
29	LE230 (BN-BU)	22	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)	BU5T-14474-AA
30	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	BU5T-14474-AA
31	VE521 (WH-GN)	22	MONITOR - FUEL PUMP # 2 (FPM2)	N/A
32	CET47 (BU)	20	SWITCH - REVERSE (RS)	BU5T-14474-AA
33	VH433 (VT-OG)	22	TRANSDUCER - A/C PRESSURE (ACPT) +	BU5T-14474-AA
34	VE727 (BU-BN)	20	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)	N/A
35	RE136 (VT-GN)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN)	BU5T-14474-AA
36	LE136 (GN-OG)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF)	BU5T-14474-AA
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	CE114 (GN-BU)	18	CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT)	BU5T-14474-BA
40	LE137 (BU-GY)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF)	BU5T-14474-AA
41	*	*	Not Used	N/A
42	CPK34 (BN-VT)	20	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 +	BU5T-14474-AA
43	*	*	Not Used	N/A
44	VE728 (BU-BN)	20	SENSOR - FUEL RAIL TEMPERATURE (FRT)	N/A
45	*	*	Not Used	N/A
46	VE922 (VT-GN)	22	TRANSDUCER - FUEL TANK PRESSURE (FTPT)	BU5T-14474-AA
47	VH407 (YE-GN)	20	SENSOR - AMBIENT TEMP.	BU5T-14474-AA
48	*	*	Not Used	N/A
49	CE261 (GY-OG)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES)	BU5T-14474-AA
50	*	*	Not Used	N/A
51	RE406 (GY-VT)	22	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)	BU5T-14474-AA
52	LE423 (GN-VT)	22	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	BU5T-14474-AA
53	VDC61 (VT-GN)	20	SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR	BU5T-14474-AA
54	RE320 (BU)	20	CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN)	N/A
55	VET66 (GN)	20	SENSOR - REAR DIFFERENTIAL OIL TEMPERATURE POS	N/A
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
58	CDC12 (YE)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)	BU5T-14474-AA
59	RE137 (YE-GN)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN)	BU5T-14474-AA
60	VE702 (BU-WH)	22	SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)	BU5T-14474-AA
61	VE701 (YE-OG)	22	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)	BU5T-14474-AA
62	*	*	Not Used	N/A
63	VYT11 (VT-GY)	22	CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT)	N/A
64	CBB60 (YE-VT)	20	FUSE - 60 OR CIRCUIT BREAKER	BU5T-14474-AA
65	CE436 (VT-OG)	22	CTRL MOD. -WAKE UP PCM	BU5T-14474-AA
66	CES09 (VT-OG)	22	SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +	BU5T-14474-AA
67	CCB08 (VT-WH)	22	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	BU5T-14474-AA
68	*	*	Not Used	N/A
69	VYT12 (YE-GN)	22	PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI)	N/A
70	*	*	Not Used	N/A
71	RE731 (WH-OG)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND)	BU5T-14474-BA
72	VE731 (YE-GN)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)	BU5T-14474-BA
73	VE807 (YE-VT)	20	SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF)	N/A
74	*	*	Not Used	N/A
75	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	BU5T-14474-AA
76	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	BU5T-14474-AA
77	*	*	Not Used	N/A
78	*	*	Not Used	N/A
79	*	*	Not Used	N/A
80	*	*	Not Used	N/A
81	*	*	Not Used	N/A
82	*	*	Not Used	N/A
83	*	*	Not Used	N/A
84	*	*	Not Used	N/A
85	*	*	Not Used	N/A
86	*	*	Not Used	N/A
87	*	*	Not Used	N/A
88	*	*	Not Used	N/A
89	*	*	Not Used	N/A
90	RE249 (WH-GN)	18	CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 2ND	BU5T-14474-BA
91	VE733 (WH)	18	SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)	BU5T-14474-BA
92	*	*	Not Used	N/A
93	*	*	Not Used	N/A
94	*	*	Not Used	N/A
95	*	*	Not Used	N/A
96	*	*	Not Used	N/A
97	CBK01 (BU)	16	FUSE - 1 OR CIRCUIT BREAKER (VPWR F)	7C3T-14474-DA
98	*	*	Not Used	N/A
99	CBK01 (BU)	16	FUSE - 1 OR CIRCUIT BREAKER (VPWR F)	7C3T-14474-DA
100	GD113 (BK-YE)	14	GROUND - COWL TOP RIGHT	7C3T-14474-EA
101	*	*	Not Used	N/A
102	GD113 (BK-YE)	14	GROUND - COWL TOP RIGHT	7C3T-14474-EA
103	GD113 (BK-YE)	14	GROUND - COWL TOP RIGHT	7C3T-14474-EA
