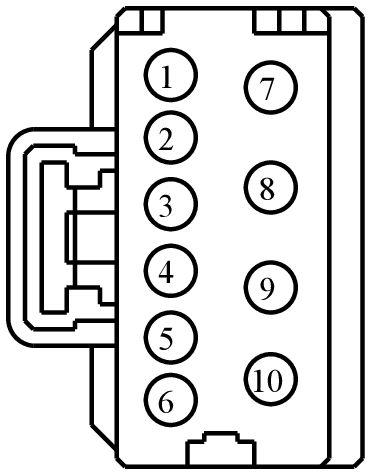

Connector End View (C341B) - DRIVER SEAT MODULE (DSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341B	DRIVER SEAT MODULE (DSM)	none	14D230/14D231	#NA	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RHS02 (BU-OG)	14	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER -	N/A
2	CHS01 (GY-VT)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER +	N/A
3	RHS06 (WH)	16	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER -	N/A
4	RHS01 (WH-VT)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER -	N/A
5	CHS07 (GY-BU)	16	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +	N/A
6	CHS02 (YE-BU)	14	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +	N/A
6	CHS02 (YE-BU)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +	RHD	N/A
7	RHS07 (BU)	16	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER -	N/A
8	CBX01 (GN-RD)	14	POWER - SEAT # RUN/START	N/A
9	CBX01 (GN-RD)	14	POWER - SEAT # RUN/START	N/A
10	CBX05 (VT-RD)	14	POWER - SEAT # POWER SEAT SWITCH	MEMORY SEATS ONLY	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1354

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ADA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

10

Vehicle Uses:

• Radio - Amplifier
